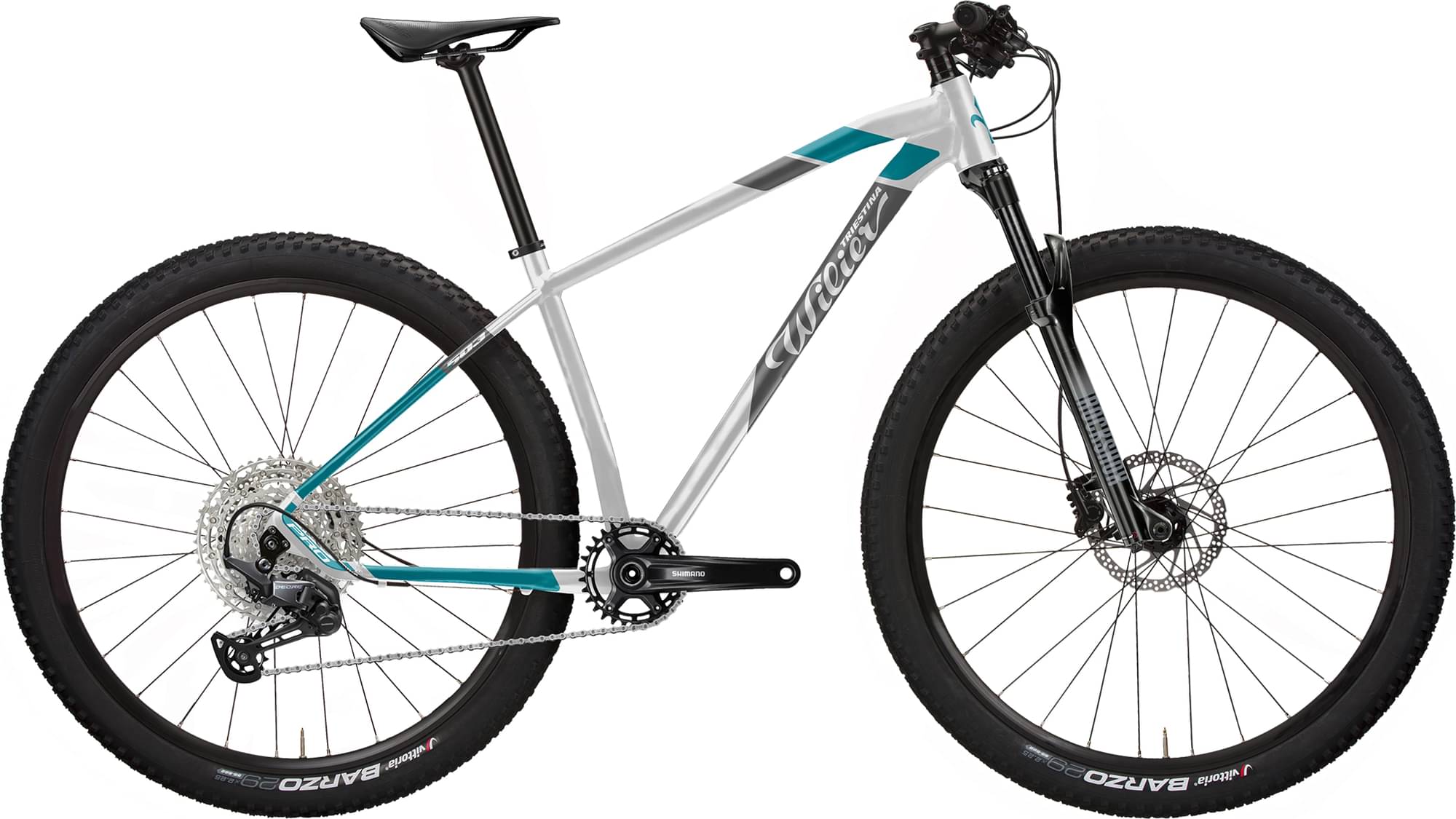

Wilier 503X PRO – SHIMANO DEORE 1×12 2023
2023 Mountain
Estimate price |
1,454$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCKSHOX JUDY SILVER TK 100 mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100-SGS
Front Derailleur
-
Shift Levers
SHIMANO DEORE M6100-R
Cassette
SHIMANO DEORE CS-M6100-12 10-51T
Crank
SHIMANO FC-MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO DEORE CN-M6100 118 LINK
Wheels
Rims
WILIER TRIESTINA ROVER 29 ALU
Tires
VITTORIA BARZO 29" X 2.25 RIGID
Brakes
Brakes
SHIMANO MT201
Disk Rotors
SHIMANO RT10 180 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY COMP PRD15862
Seat
Saddle
SELLE ITALIA MODEL X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
503X PRO – SHIMANO DEORE 1×12 is a Wilier 503x model. Wilier launched 17 bikes of this model so far. You can easily view all of the Wilier 503x bikes models from 2023, here.
Model range prices
Wilier 503X PRO – SHIMANO DEORE 1×12 2023 is the cheapest bike model and costs 1327$. Wilier 503X RACE – SHIMANO XT 1×12 2.0 2023 is the most expensive one and costs 1699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 1327$. Comparing the average cost of a Crosscountry bike to this one, you will see that 503X PRO – SHIMANO DEORE 1×12 price is 43.56% smaller.
Overview of components
Fork
This bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the 503X PRO – SHIMANO DEORE 1×12 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Wilier 503X PRO – SHIMANO DEORE 1×12 bike has 4 sizes, in the range of 156 cm – 194 cm (5.12 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
