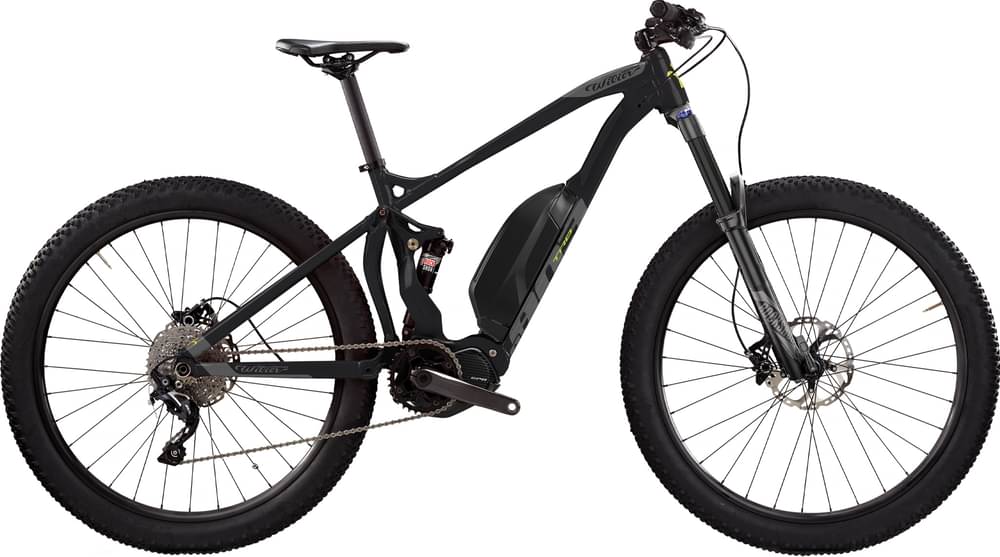

Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2022
2022 E-bike
Estimate price |
4,473$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery 630Wh EXTERNAL -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX RECON RL 140 mm
Rear Shock
ROCK SHOX MONARCH R 200x57
Drivetrain
Rear Derailleur
SHIMANO DEORE 12S
Shift Levers
SHIMANO DEORE 12S
Cassette
SHIMANO DEORE 12S 10-51T
Crank
SHIMANO 34T
Chain
SHIMANO SLX
Wheels
Rims
WILIER TRIESTINA ROVER 29 ALU
Tires
VITTORIA BARZO 27,5X2,6" RIGID
Brakes
Brakes
SHIMANO BR-MT401
Disk Rotors
SHIMANO ROTOR RT30 CENTERLOCK 203mm / 180 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3188 R15
Headset
FSA NO.57B + TH-874-1
Seat
Saddle
SELLE ITALIA X1
Motor & Battery
Motor
SHIMANO STEPS 7000
Battery
630Wh EXTERNAL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 419 mm | 443 mm | 469 mm | 490 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
e803TRB SHIMANO DEORE 1×12 + STEPS 7000 completes the Wilier E E803trb model. Wilier launched 7 e-bikes of this model so far. You can easily view all of the Wilier E E803trb e-bikes models from 2022, here.
Model range prices
The most economical model, the Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2022 has a starting price of 4141$. Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2022 on the other hand is the most expensive at 4672$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4141$. In conclusion, this e-bike price is 23.06% higher than the price of the average Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the e803TRB SHIMANO DEORE 1×12 + STEPS 7000 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The e803TRB SHIMANO DEORE 1×12 + STEPS 7000 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
e803TRB SHIMANO DEORE 1×12 + STEPS 7000 comes in 4 sizes, that range from 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, you can easily find one that suits you.
