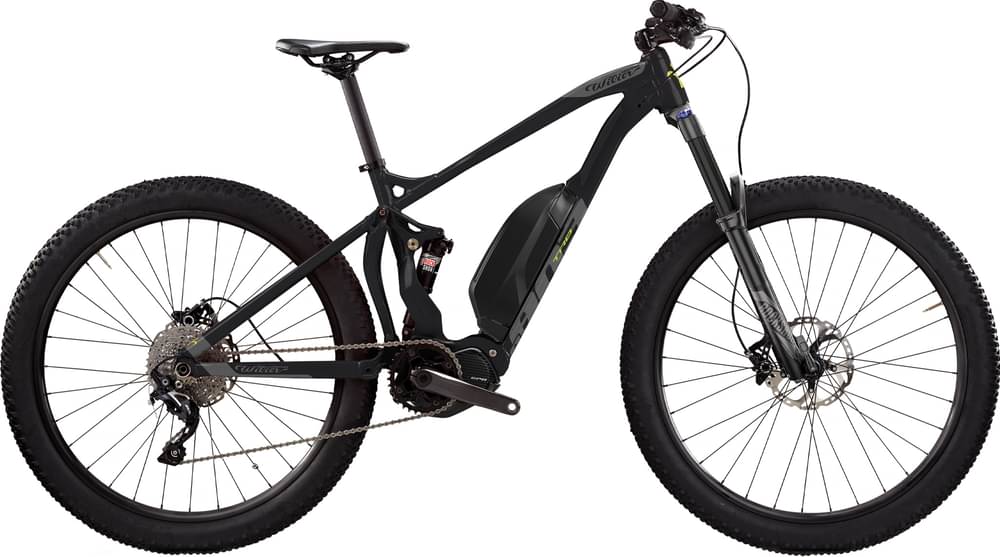

Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2022
2022 E-bike
Estimate price |
5,047$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset SLX, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 630Wh EXTERNAL -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX 35 SILVER TK 140 mm
Rear Shock
ROCK SHOX MONARCH R 200x57
Drivetrain
Rear Derailleur
SHIMANO SLX 12S
Shift Levers
SHIMANO DEORE 12S
Cassette
SHIMANO DEORE 12S 10-51T
Crank
SHIMANO 34T
Chain
SHIMANO SLX
Wheels
Rims
SHIMANO MT620
Tires
VITTORIA BARZO 27,5X2,6" RIGID
Brakes
Brakes
TEKTRO ORION 4 PISTONS
Disk Rotors
TEKTRO CENTERLOCK 203mm / 180 mm
Cockpit
Stem
PROMAX DA242
Handlebar
PROMAX HB-3235DB
Headset
FSA NO.57B + TH-874-1
Seat
Saddle
SELLE ITALIA X1
Motor & Battery
Motor
SHIMANO STEPS EP8
Battery
630Wh EXTERNAL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 419 mm | 443 mm | 469 mm | 490 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 is a Wilier E E803trb model. 7 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2022 has a starting price of 4141$. Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2022 on the other hand is the most expensive at 4672$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 price was 4672$. Comparing this to the average Trail e-bike price, we see that the price is 38.84% more expensive.
e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 comes in 4 sizes, that range from 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
