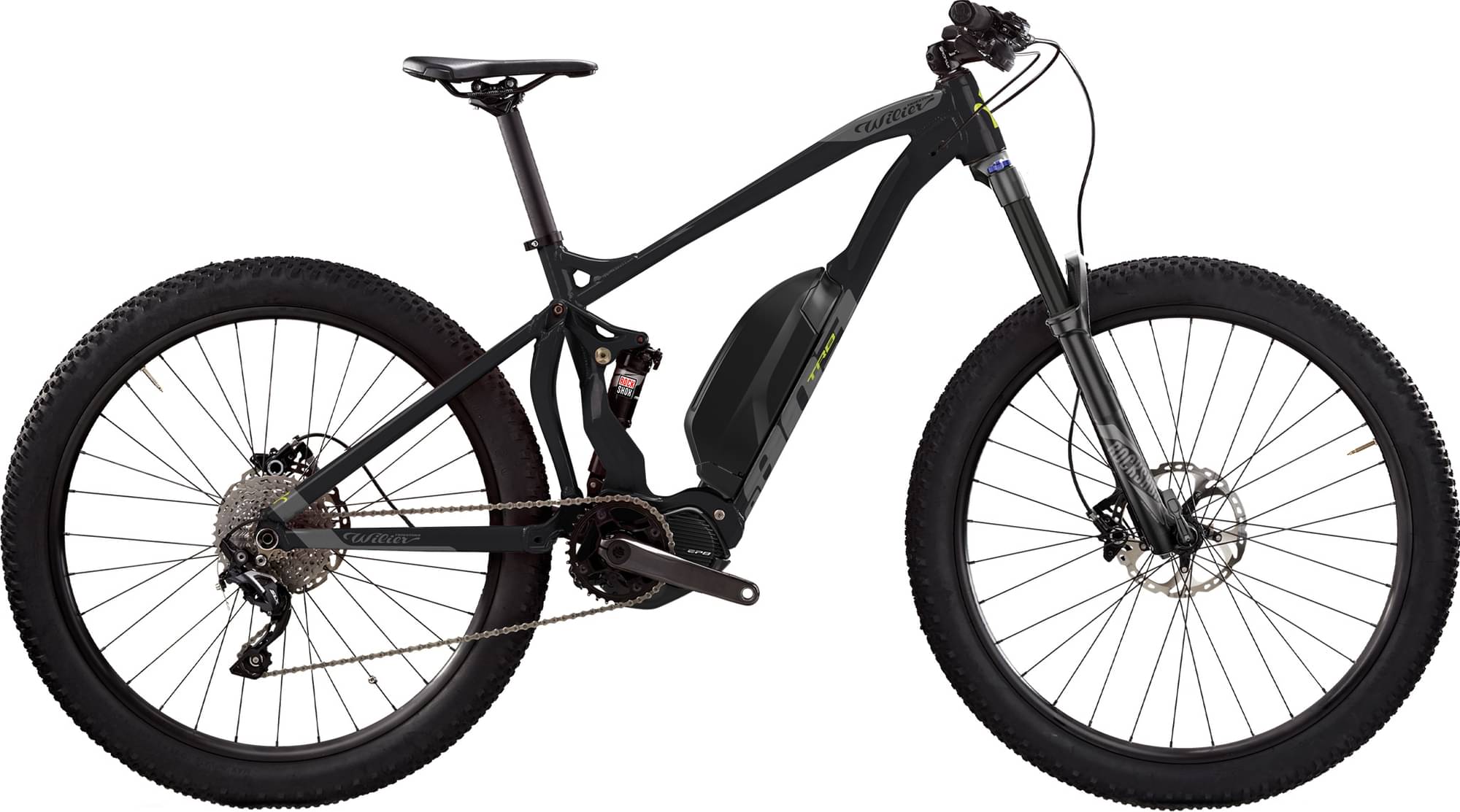

Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2023
2023 E-bike
Estimate price |
4,653$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery 630Wh EXTERNAL -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX RECON RL 140 mm
Rear Shock
ROCK SHOX MONARCH R 200x57
Drivetrain
Rear Derailleur
SHIMANO DEORE 12S
Shift Levers
SHIMANO DEORE 12S
Cassette
SHIMANO DEORE 12S 10-51T
Crank
SHIMANO 34T
Chain
SHIMANO SLX
Wheels
Rims
WILIER TRIESTINA ROVER 29 ALU
Tires
VITTORIA BARZO 27,5X2,6" RIGID
Brakes
Brakes
SHIMANO BR-MT401
Disk Rotors
SHIMANO ROTOR RT30 CENTERLOCK 203mm / 180 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3188 R15
Headset
FSA NO.57B + TH-874-1
Seat
Saddle
SELLE ITALIA MODEL X
Motor & Battery
Motor
SHIMANO STEPS 7000
Battery
630Wh EXTERNAL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 419 mm | 443 mm | 469 mm | 490 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
e803TRB SHIMANO DEORE 1×12 + STEPS 7000 belongs to the Wilier E E803trb model. 7 e-bikes variations carry this model name so far. Take a sneak peek at all Wilier E E803trb e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2023 has a starting price of 4247$. Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2023 on the other hand is the most expensive at 4778$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 price was 4247$. In conclusion, this e-bike price is 26.21% higher than the price of the average Trail e-bike.
Overview of components
Fork
The e803TRB SHIMANO DEORE 1×12 + STEPS 7000 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The e803TRB SHIMANO DEORE 1×12 + STEPS 7000 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
