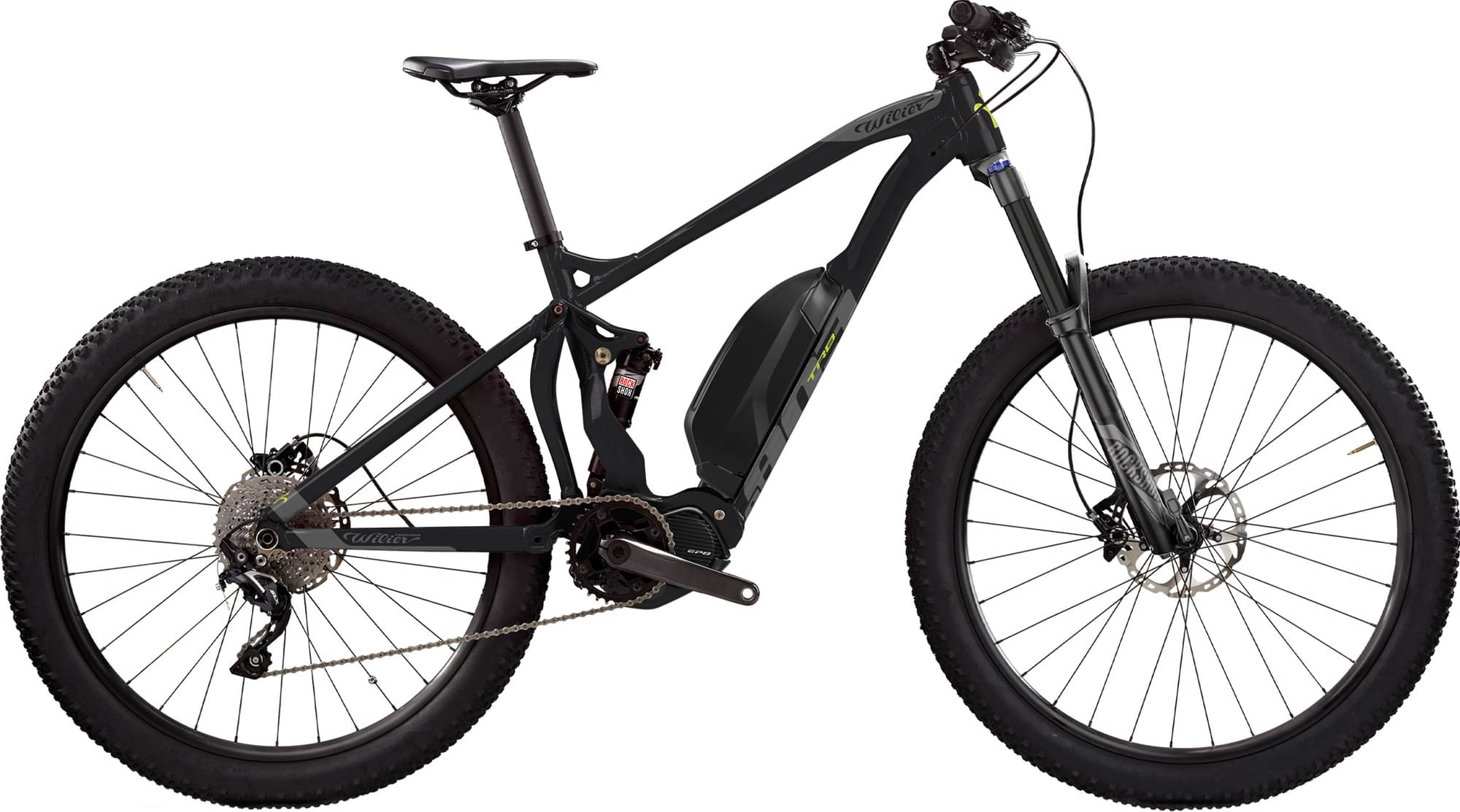

Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2023
2023 E-bike
Estimate price |
5,235$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset SLX, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 630Wh EXTERNAL -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED
Suspension Fork
ROCK SHOX 35 SILVER TK 140 mm
Rear Shock
ROCK SHOX MONARCH R 200x57
Drivetrain
Rear Derailleur
SHIMANO SLX 12S
Shift Levers
SHIMANO DEORE 12S
Cassette
SHIMANO DEORE 12S 10-51T
Crank
SHIMANO 34T
Chain
SHIMANO SLX
Wheels
Rims
SHIMANO MT620
Tires
VITTORIA BARZO 27,5X2,6" RIGID
Brakes
Brakes
TEKTRO ORION 4 PISTONS
Disk Rotors
TEKTRO CENTERLOCK 203mm / 180 mm
Cockpit
Stem
PROMAX DA242
Handlebar
PROMAX HB-3235DB
Headset
FSA NO.57B + TH-874-1
Seat
Saddle
SELLE ITALIA MODEL X
Motor & Battery
Motor
SHIMANO STEPS EP8
Battery
630Wh EXTERNAL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.3 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 419 mm | 443 mm | 469 mm | 490 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
Model Overview
e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 belongs to the Wilier E E803trb model. Wilier released 7 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Wilier e803TRB SHIMANO DEORE 1×12 + STEPS 7000 2023 is the most affordable e-bike of this model and has a price of 4247$. On the other hand, Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2023, is the most expensive and costs 4778$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4778$. Comparing this to the average Trail e-bike price, we see that the price is 41.99% higher.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 24.5 kg (54.01 lbs), the e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 model is slightly heavier than average. In other words, this model is 3.38% heavier than the average Trail e-bike.
Overview of components
Fork
The e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Wilier e803TRB SHIMANO SLX 1×12 + SHIMANO EP8 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 156 cm – 194 cm (5.12 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
