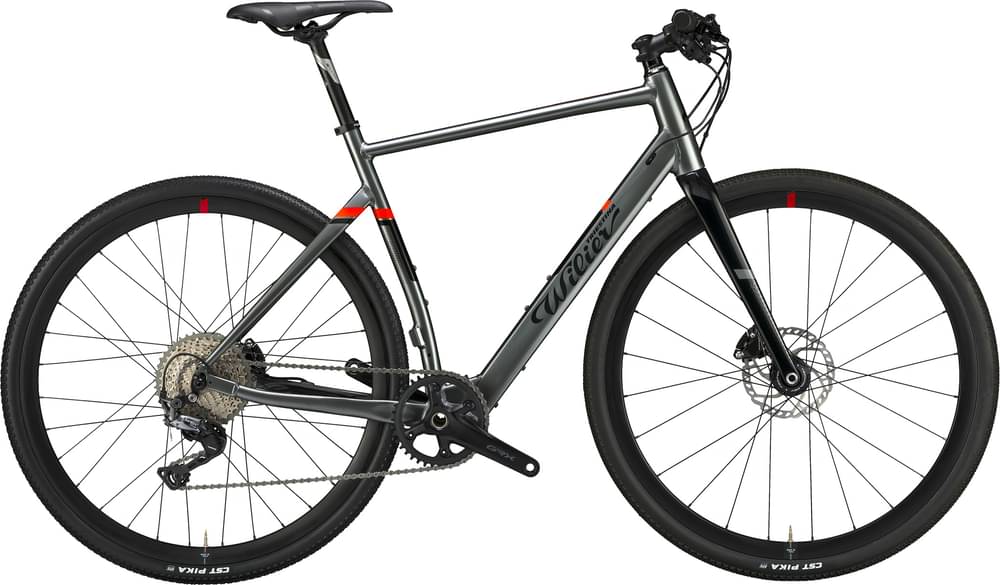

Wilier TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR 2022
2022 E-bike
Estimate price |
3,842$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE hub-drive -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 172cm
MD
169cm - 177cm
LG
174cm - 182cm
XL
179cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRIESTINA HYBRID - ALU 6061, DOUBLE BUTTED
Suspension Fork
TRIESTINA HYBRID CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS
Front Derailleur
SHIMANO 105 FD-R7000
Shift Levers
SHIMANO SLRS700 + BR-R7070
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50-34T
Bottom Bracket
SHIMANO BBRS500PB
Chain
SHIMANO CN-HG600-11
Wheels
Rims
WILIER TRIESTINA HY-NDR28AC
Tires
VITTORIA ZAFFIRO PRO 4 700X28
Brakes
Brakes
SHIMANO BLRS600
Disk Rotors
SHIMANO SM-RT66 6 BOLTS 160 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018DB 12° FLARE OUT
Headset
RITCHEY PRD15862
Seat
Saddle
PROMAX SP-264
Motor & Battery
Motor
MAHLE EBIKEMOTION X35+
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Stack | 526 mm | 545 mm | 565 mm | 585 mm | 603 mm |
| Reach | 368 mm | 373 mm | 378 mm | 383 mm | 388 mm |
| Top Tube Length | 514 mm | 530 mm | 546 mm | 557 mm | 573 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 117 mm | 136 mm | 157 mm | 177 mm | 196 mm |
| Chainstay Length | 405 mm | 405 mm | 407 mm | 407 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 169 cm | 174 cm | 179 cm |
| Rider Max Height | 165 cm | 172 cm | 177 cm | 182 cm | 186 cm |
About this model
TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR completes the Wilier E Triestina model. There are 13 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Wilier TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR 2022 has a starting price of 3451$. Wilier TRIESTINA HYBRID SHIMANO 105 R7020 DROP BAR 2022 on the other hand is the most expensive at 3929$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3557$. Doing a quick comparison, we notice that TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR price is 2.39% smaller than the average cost of a Gravel e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Wilier TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR e-bike has 5 sizes, in the range of 152 cm – 186 cm (4.99 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
