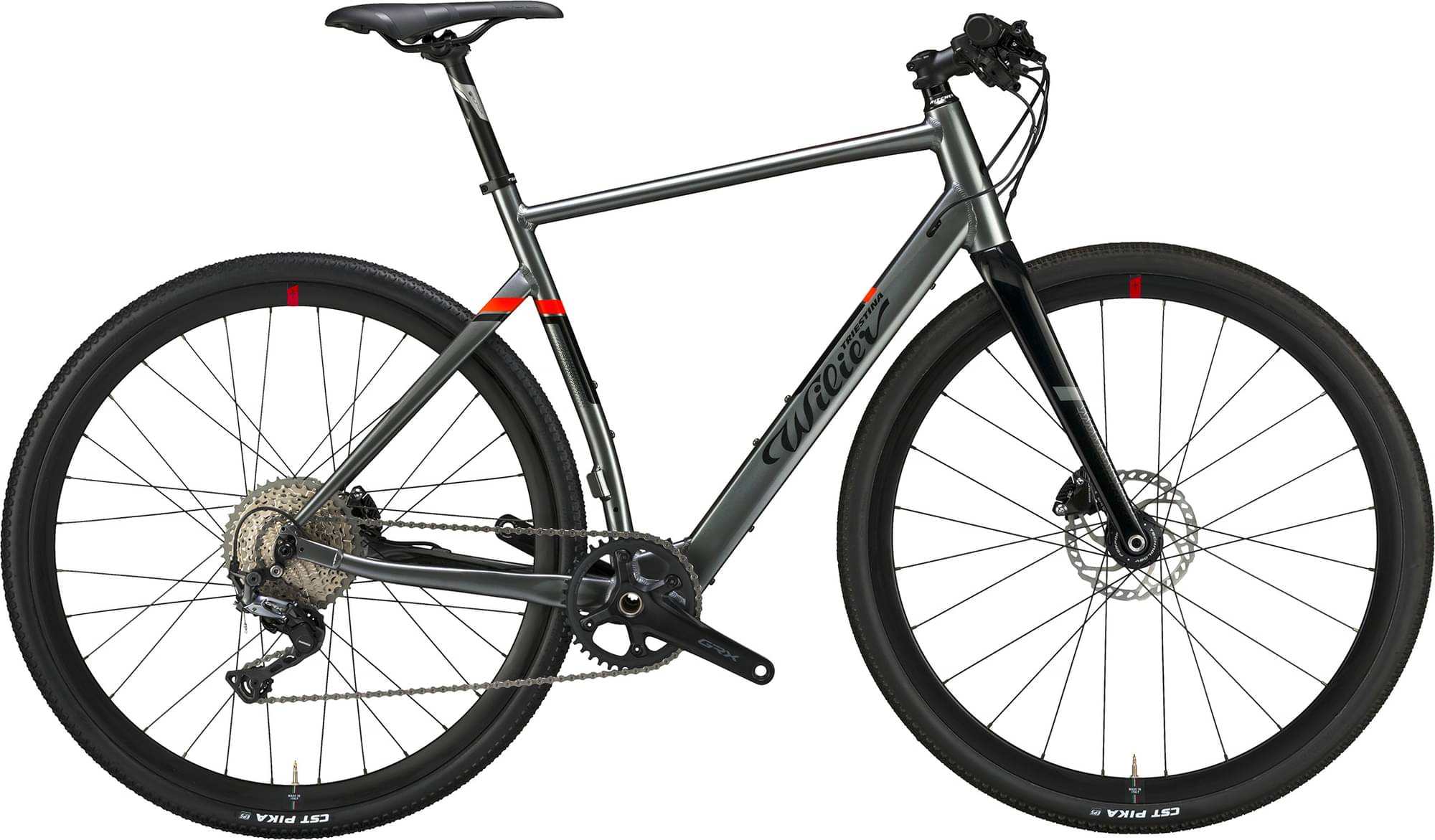

Wilier TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR 2023
2023 E-bike
Estimate price |
4,130$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE hub-drive -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 165cm
SM
155cm - 170cm
MD
167cm - 178cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRIESTINA HYBRID - ALU 6061, DOUBLE BUTTED
Suspension Fork
TRIESTINA HYBRID CARBON MONOCOQUE
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS
Front Derailleur
SHIMANO 105 FD-R7000
Shift Levers
SHIMANO SLRS700 + BR-R7070
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50-34T
Bottom Bracket
SHIMANO PRESSFIT BB-RS500-PB
Chain
SHIMANO CN-HG600-11
Wheels
Rims
WILIER TRIESTINA HY-NDR28AC
Tires
VITTORIA ZAFFIRO PRO 4 700X28
Brakes
Brakes
SHIMANO BLRS600
Disk Rotors
SHIMANO SM-RT66 6 BOLTS 160 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018DB 12° FLARE OUT
Headset
RITCHEY PRD15862
Seat
Saddle
PROMAX SP-264
Motor & Battery
Motor
MAHLE EBIKEMOTION X35+
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Stack | 526 mm | 545 mm | 565 mm | 585 mm | 603 mm |
| Reach | 368 mm | 373 mm | 378 mm | 383 mm | 388 mm |
| Top Tube Length | 514 mm | 530 mm | 546 mm | 557 mm | 573 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 117 mm | 136 mm | 157 mm | 177 mm | 196 mm |
| Chainstay Length | 405 mm | 405 mm | 407 mm | 407 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 155 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 165 cm | 170 cm | 178 cm | 188 cm | 195 cm |
About this model
TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR belongs to the Wilier E Triestina model. Wilier launched 13 e-bikes of this model so far. You can easily view all of the Wilier E Triestina e-bikes models from 2023, here.
Model range prices
Wilier TRIESTINA HYBRID SHIMANO GRX 1X11 FLAT BAR 2023 is the most economical model, with a starting price of 3663$. Wilier TRIESTINA HYBRID SHIMANO 105 R7020 DROP BAR 2023 on the other hand costs 4141$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3769$. Doing a quick comparison, we notice that TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR price is 51.98% more expensive than the average cost of a Hybrid e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TRIESTINA HYBRID SHIMANO 105 R7020 FLAT BAR comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
