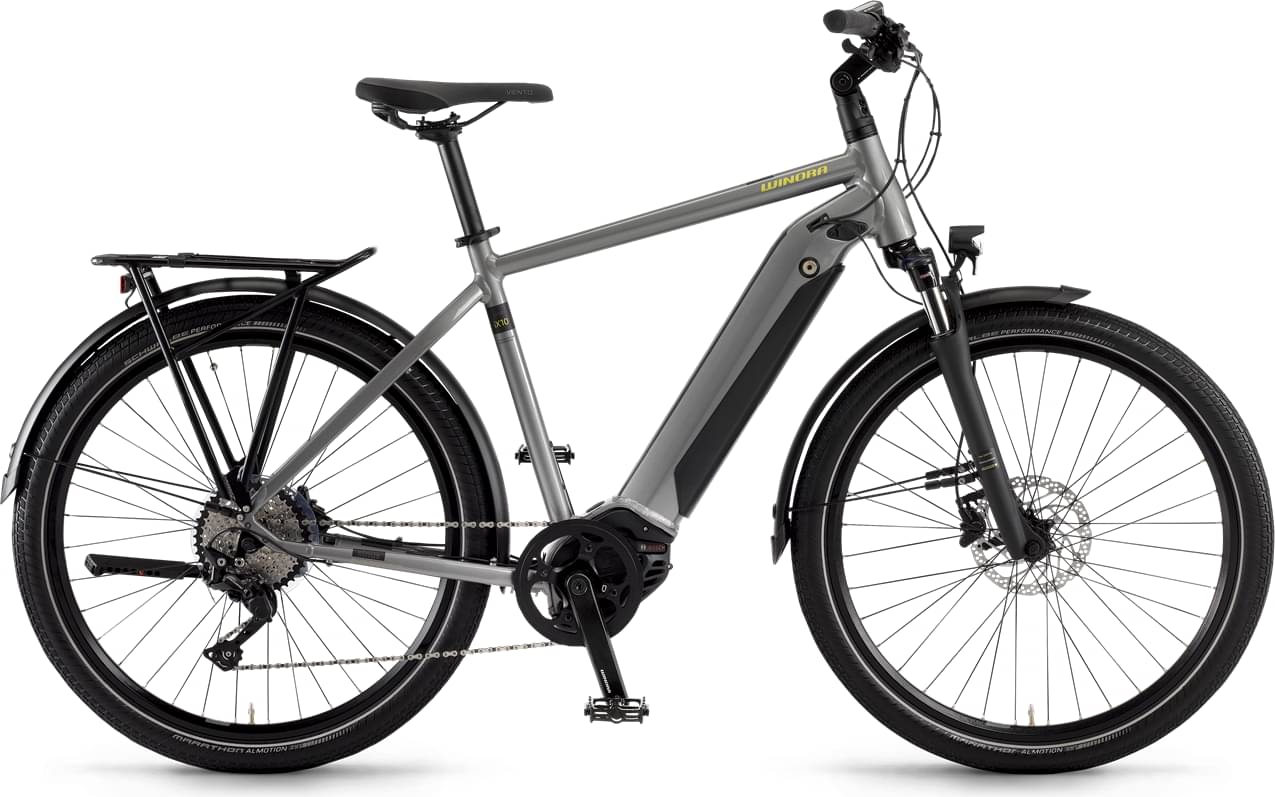

winora Sinus iX10 2024
2024 E-bike
Estimate price |
3,954$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, multiformed, THT, Aluminium 6061, Disc brake Post Mount
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Rear Derailleur
Shimano, Deore M6000
Shift Levers
Shimano, Deore M6000, Rapidfire, 10 speed
Cassette
Shimano, HG500, 11 - 42 teeth
Crank
Winora, forged, Aluminium
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401-3, Aluminium
Cockpit
Stem
Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm
Handlebar
Ergoriser, oversize, 640 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Selle Royal, Viento
Seatpost
Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Bosch, Performance CX, 250 W, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.633 mm | 1.573 mm | 1.532 mm | 1.526 mm |
| Front Center | 646 mm | 661 mm | 675 mm | 690 mm |
| Rake | 46 mm | 46 mm | 45 mm | 44 mm |
| Trail | 68 mm | 68 mm | 69 mm | 70 mm |
| Stack | 637 mm | 637 mm | 642 mm | 656 mm |
| Reach | 390 mm | 405 mm | 419 mm | 430 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1114 mm | 1129 mm | 1144 mm | 1159 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
Sinus iX10 belongs to the Winora E Sinus model. Winora released 18 e-bikes variations of this model so far. You can easily view all of the Winora E Sinus e-bikes models from 2024, here.
Model range prices
The most economical model, the Winora Sinus Tria 9 2024 has a starting price of 3070$. Winora Sinus R380 auto 2024 on the other hand is the most expensive at 5082$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Winora Sinus iX10 price was 3599$. Comparing this to the average Commuter e-bike price, we see that the price is 40.09% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Sinus iX10 weighs 24.8 kg (54.67 lbs) and is slightly lighter than the average. In short, the average Commuter e-bike weight is 1.61% higher than this one.
Overview of components
Fork
Winora Sinus iX10 2024 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Winora Sinus iX10 2024, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sinus iX10 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
