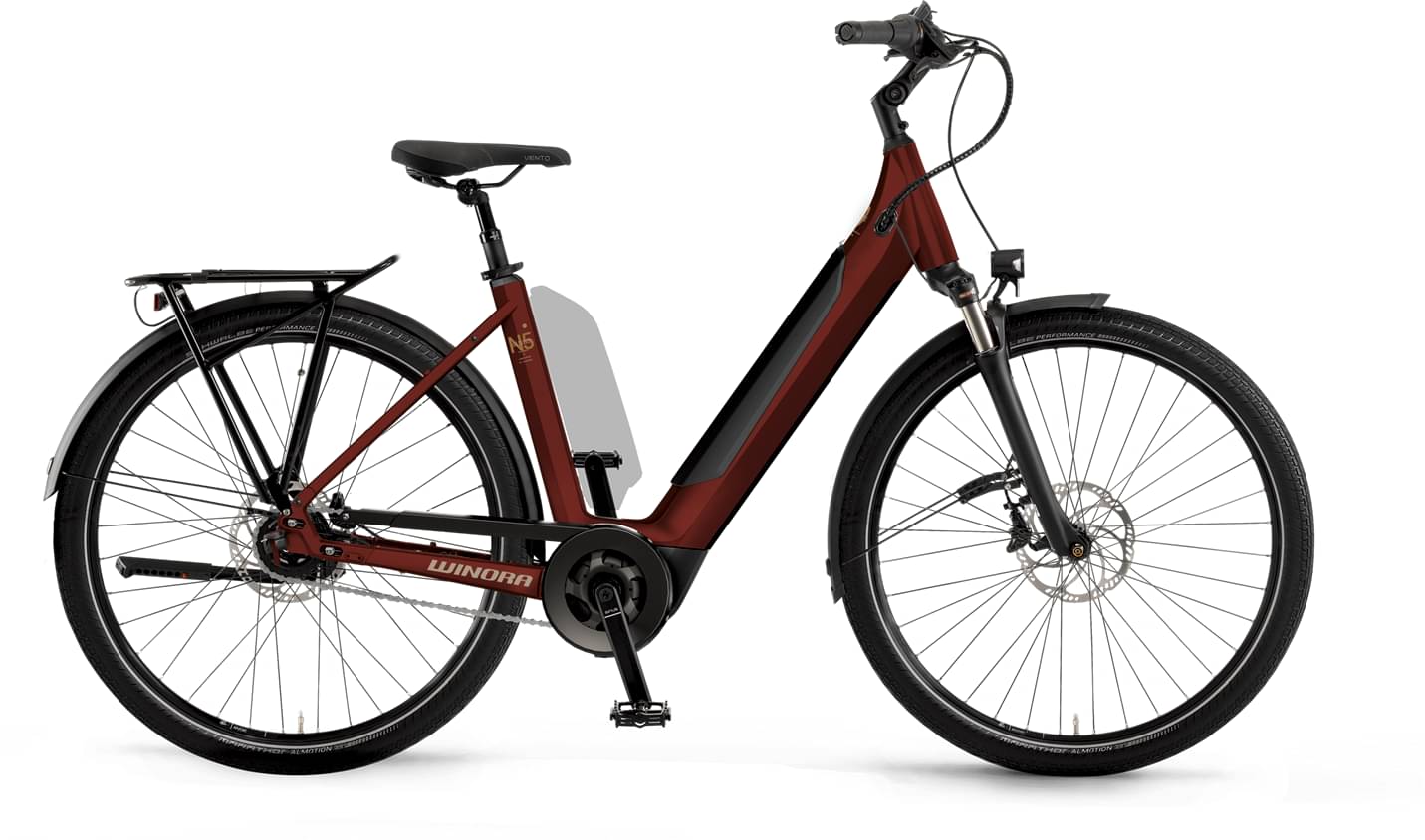

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Shift Levers
Shimano, Nexus, Twist shifter, 5 Speed
Cassette
Shimano, pinion, 27 - teeth
Crank
Samox, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, Z1 Narrow EPT
Chain Guide
Herrmans, Slyde38
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, hollow rim, Aluminium
Spokes
Stainless spokes, Black
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
Alu, winkelverstellbar, A-head, Bar bore: 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Herrmans, Click Ergo - lock on grips
Headset
Cane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Viento
Seatpost
Aluminium, Patent suspension, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line, 250W, 65 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Sinus N5 is part of the Winora E Sinus model. 18 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Winora Sinus Tria 9 2024 is the most affordable e-bike of this model and has a price of 3070$. On the other hand, Winora Sinus R380 auto 2024, is the most expensive and costs 5082$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Winora Sinus N5 price was 4129$. In conclusion, this e-bike price is 60.72% more expensive than the price of the average Commuter e-bike.
Sinus N5 components
Fork
The Sinus N5 comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Sinus N5 2024 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sinus N5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
