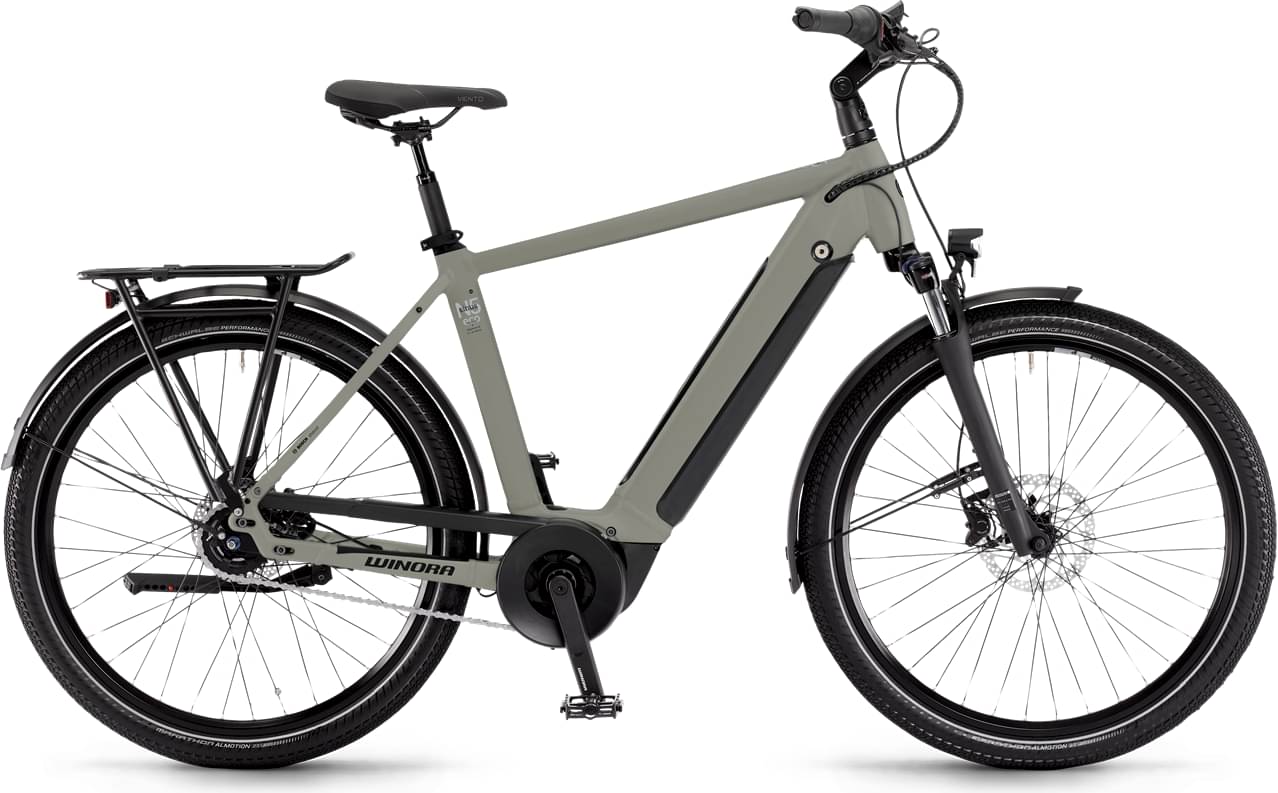

winora Sinus N5 eco 2024
2024 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, 63 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Shift Levers
Shimano, Nexus, Twist shifter
Cassette
Shimano, pinion, 27 - teeth
Crank
Samox, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, Z1 Narrow EPT
Chain Guide
Herrmans, Slyde38
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, Double Wall, Aluminium
Spokes
Stainless spokes
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5 x 2.15 inch
Brakes
Brakes
Rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Herrmans, Click Ergo - lock on grips
Headset
Feimin, A-Head Tapered, Aluminium, CartridgeCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Viento
Seatpost
XLC, Aluminium, Patent suspension, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line, 250 W, 65 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Front Center | 666 mm | 675 mm | 685 mm | 695 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1144 mm | 1154 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Sinus N5 eco is part of the Winora E Sinus model. 18 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Winora Sinus Tria 9 2024 is the cheapest e-bike model and costs 3070$. Winora Sinus R380 auto 2024 is the most expensive one and costs 5082$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2024 for 3811$. Comparing the average cost of a Commuter e-bike to this one, you will see that Sinus N5 eco price is 48.35% more expensive.
Overview of components
Fork
The Sinus N5 eco comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the Sinus N5 eco model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Winora Sinus N5 eco has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
