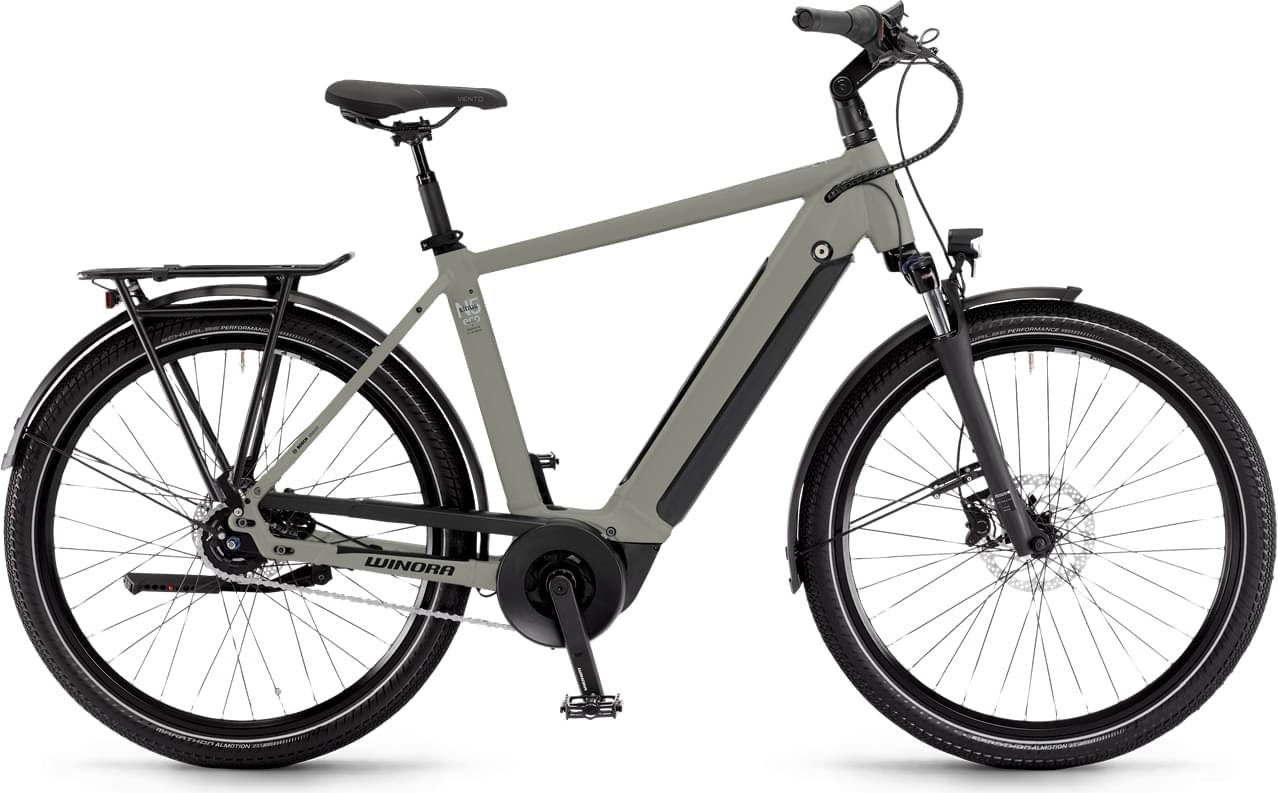

winora Sinus N5f eco 2024
2024 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, 63 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Shift Levers
Shimano, Nexus, Twist shifter
Cassette
Shimano, pinion, 27 - teeth
Crank
Samox, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, Z1 Narrow EPT
Chain Guide
Herrmans, Slyde38
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, Double Wall, Aluminium
Spokes
Stainless spokes
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5 x 2.15 inch
Brakes
Brakes
Rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Herrmans, Click Ergo - lock on grips
Headset
Feimin, A-Head Tapered, Aluminium, CartridgeCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Viento
Seatpost
XLC, Aluminium, Patent suspension, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line, 250 W, 65 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Front Center | 666 mm | 675 mm | 685 mm | 695 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1144 mm | 1154 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Sinus N5f eco completes the Winora E Sinus model. Winora launched 18 e-bikes of this model so far. You can easily view all of the Winora E Sinus e-bikes models from 2024, here.
Model range prices
Winora Sinus Tria 9 2024 is the most affordable e-bike of this model and has a price of 3070$. On the other hand, Winora Sinus R380 auto 2024, is the most expensive and costs 5082$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Winora Sinus N5f eco price was 3811$. Comparing this to the average Commuter e-bike price, we see that the price is 48.35% more expensive.
Overview of components
Fork
Winora Sinus N5f eco 2024 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Sinus N5f eco e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sinus N5f eco has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
