Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, 50 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Shift Levers
Shimano, Nexus, Twist shifter
Cassette
pinion, 19 teeth
Crank
Samox, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, Z1 Narrow EPT
Chain Guide
Herrmans, Slyde38
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, Double Wall, Aluminium
Spokes
Stainless spokes
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5 x 2.15 inch
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT201, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Herrmans, Click Ergo - lock on grips
Headset
Feimin, A-Head Tapered, Aluminium, CartridgeCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Viento
Seatpost
XLC, Aluminium, Patent suspension, 31.6 mm
Motor & Battery
Motor
Bosch, Active Plus, 250 W, 50 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Front Center | 666 mm | 675 mm | 685 mm | 695 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1144 mm | 1154 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model

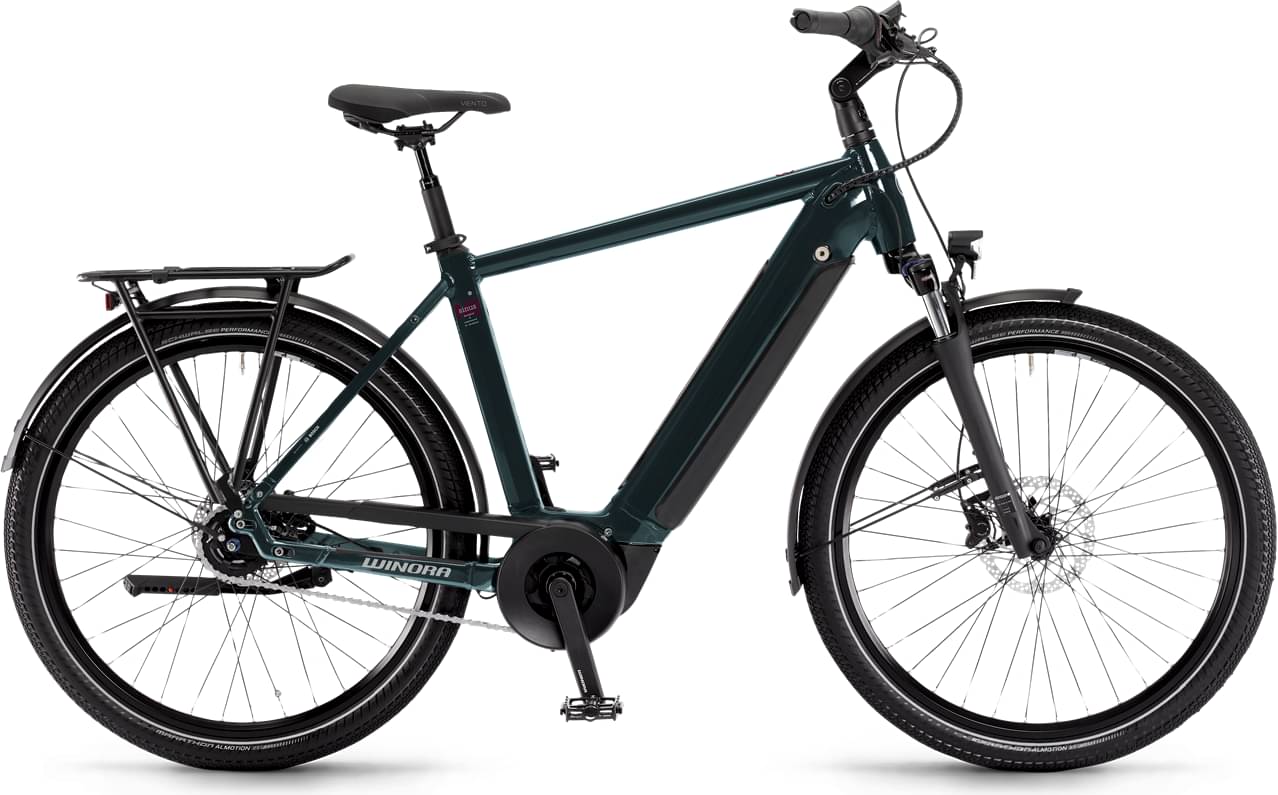

Sinus N8f is a Winora E Sinus model. There are 18 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Winora Sinus Tria 9 2024 is the most economical model, with a starting price of 3070$. Winora Sinus R380 auto 2024 on the other hand costs 5082$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2024 and its price was 3599$. Comparing this to the average Commuter e-bike price, we see that the price is 40.09% higher.
Sinus N8f components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Winora Sinus N8f 2024, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Winora Sinus N8f has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
