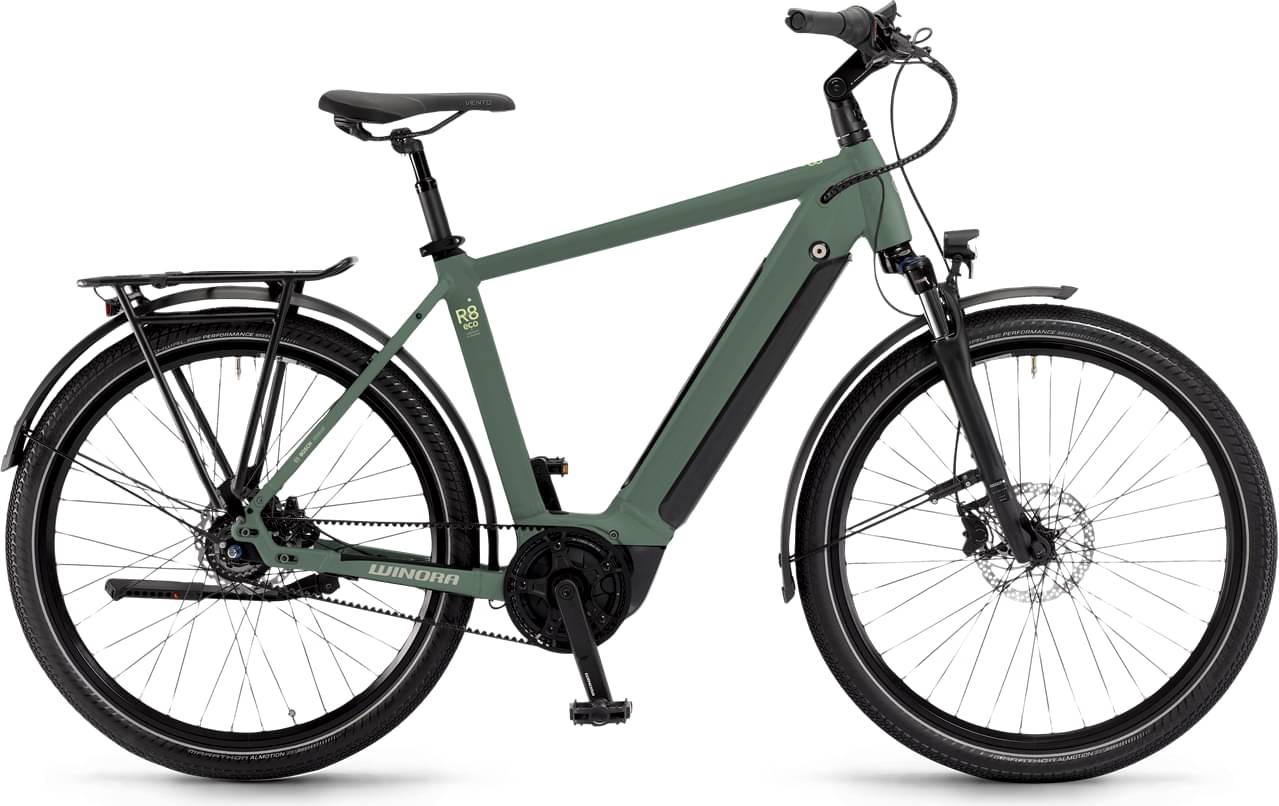

winora Sinus R8f eco 2024
2024 E-bike
Estimate price |
4,303$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus, Gates -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25-HLO, Lockout, Steel spring, 63 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
Drivetrain
Shift Levers
Shimano, Nexus, Twist shifter
Cassette
Gates, sprocket, 24 - teeth
Crank
Gates, Aluminium, 50 teeth
Bottom Bracket
integrated in the motor
Chain
Gates, CarbonDrive
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, Double Wall, Aluminium
Spokes
Stainless spokes
Tires
Schwalbe, Marathon Almotion, 55-584, 27.5 x 2.15 inch
Brakes
Brakes
Rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Herrmans, Click Ergo - lock on grips
Headset
Feimin, A-Head Tapered, Aluminium, CartridgeCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Viento
Seatpost
XLC, Aluminium, Patent suspension, 31.6 mm
Motor & Battery
Motor
Bosch, Active Plus, 250 W, 50 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Front Center | 666 mm | 675 mm | 685 mm | 695 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 155 mm | 155 mm | 160 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1144 mm | 1154 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Sinus R8f eco completes the Winora E Sinus model. Winora launched 18 e-bikes of this model so far. You can easily view all of the Winora E Sinus e-bikes models from 2024, here.
Model range prices
Winora Sinus Tria 9 2024 is the most affordable e-bike of this model and has a price of 3070$. On the other hand, Winora Sinus R380 auto 2024, is the most expensive and costs 5082$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Winora Sinus R8f eco price was 3917$. Comparing the average cost of a Commuter e-bike to this one, you will see that Sinus R8f eco price is 52.47% more expensive.
Sinus R8f eco components
Fork
Winora Sinus R8f eco 2024 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Sinus R8f eco has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Sinus R8f eco model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Winora Sinus R8f eco has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
