Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Winora, Aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Suspension Fork
RockShox, Recon RL, Air, 80 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore M6100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Pedals
VP, 625
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Schwalbe, Al Grounder Performance, 60-584, 27.5 x 2.4 inch
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, Deore M6100, Aluminium
Cockpit
Stem
aluminium, angle ajustable, A-head, 31.8 mm
Handlebar
Ergoriser, oversize, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Aluminium, CartridgeCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, VivoErgo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250 W, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.391 mm | 1.372 mm | 1.354 mm |
| Front Center | 716 mm | 732 mm | 749 mm | 765 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 68 mm | 69 mm | 68 mm | 68 mm |
| Stack | 645 mm | 655 mm | 664 mm | 673 mm |
| Reach | 458 mm | 471 mm | 484 mm | 497 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1182 mm | 1198 mm | 1215 mm | 1231 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |

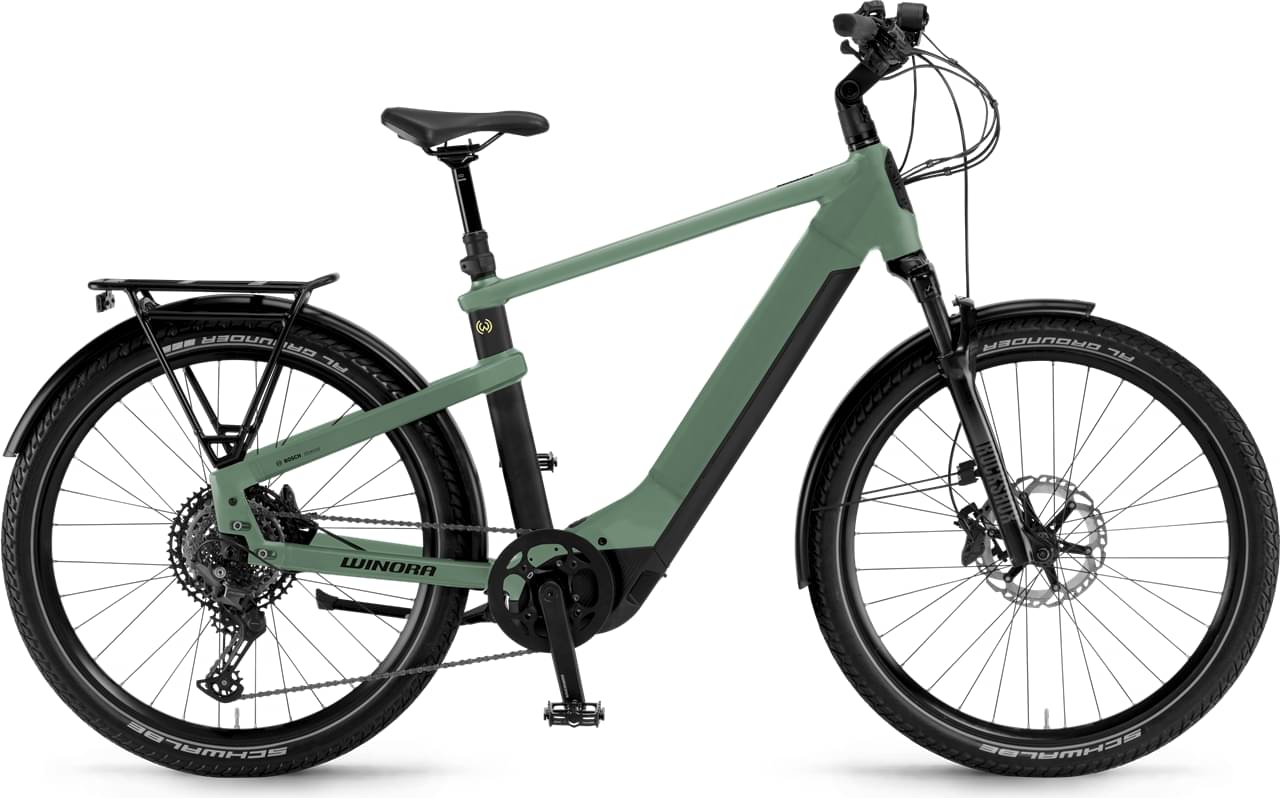

About this model
Yakun 12 completes the Winora E Yakun model. There are 5 e-bikes that carry this model name. Take a sneak peek at all Winora E Yakun e-bikes models from 2024, by clicking here.
Model range prices
Winora Yakun tour 2024 is the most affordable e-bike of this model and has a price of 3811$. On the other hand, Winora Yakun R5 Pro 2024, is the most expensive and costs 5294$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2024 and its price was 4976$. Doing a quick comparison, we notice that Yakun 12 price is 93.69% higher than the average cost of a Commuter e-bike.
Yakun 12 components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Yakun 12 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Winora Yakun 12 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
