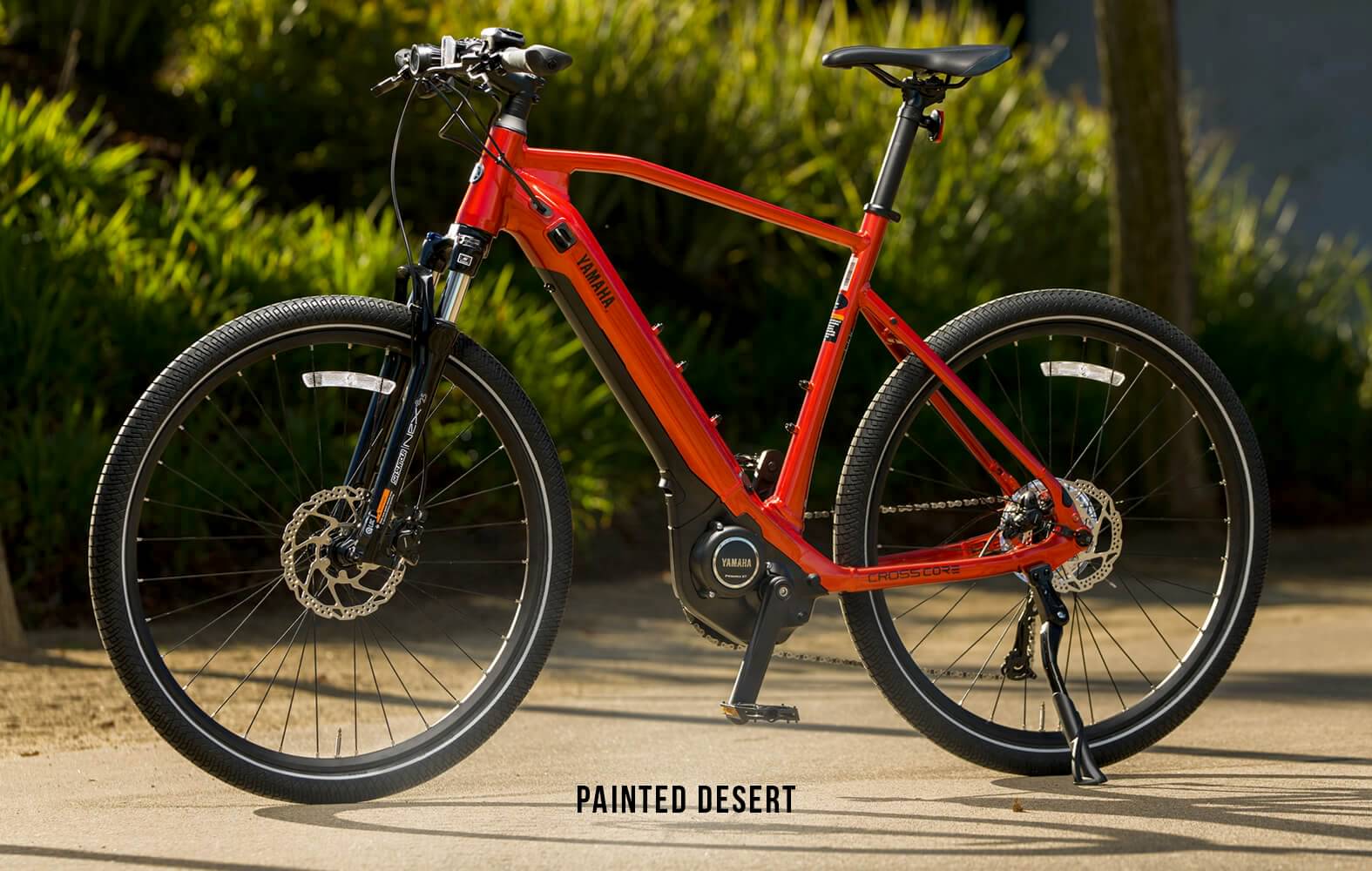

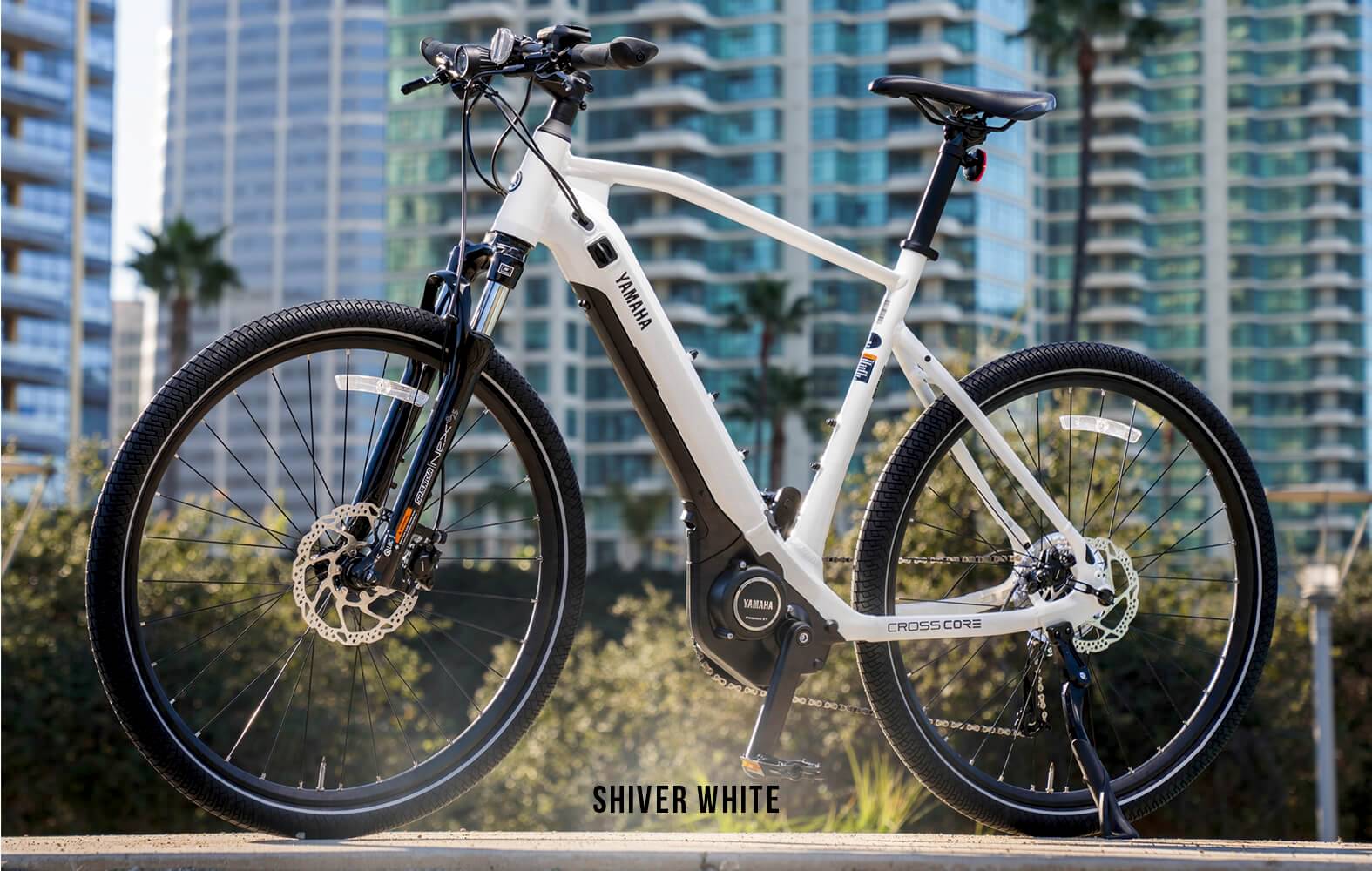

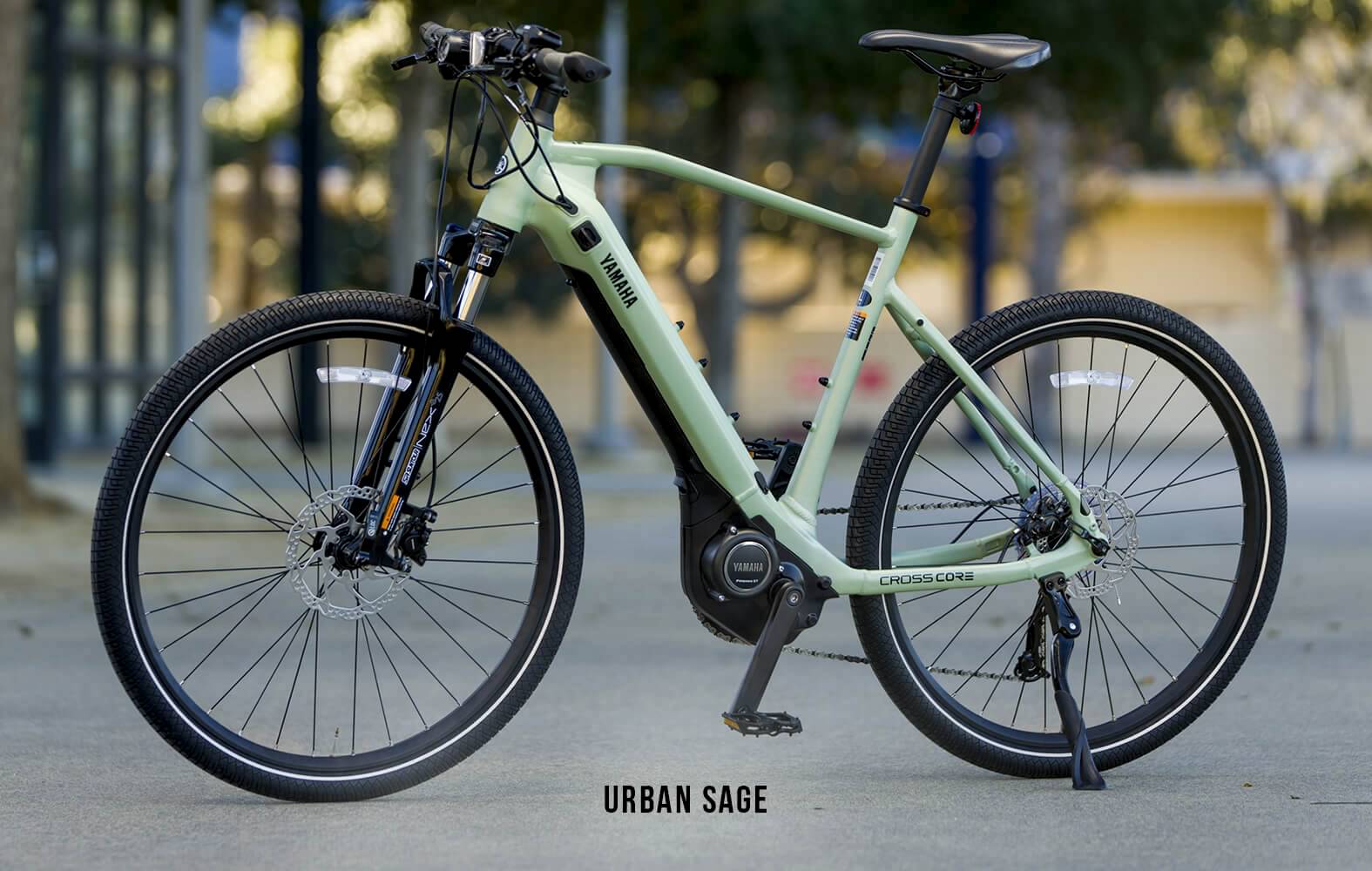

Yamaha Cross CoreRC 2023
2023 E-bike
Estimate price |
2,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Sora -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha Lithium Ion with charge-life indicator and self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Yamaha Hydroformed Aluminum, Integrated battery, Water bottle boss, Tapered Headtube, Internal shift/brake hose routing, Rack/Fender compatible
Suspension Fork
SR Suntour NEX E25. 63mm Travel, 2x100mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano M3100 SGS
Front Derailleur
Shimano Sora (2 x 9) Braze-on
Shift Levers
Shimano M2010 9-speed, Gear selection window
Cassette
SHIMANO HG400 9-speed, 11-13-15-17-20-23-26-30-36T
Crank
SAMOX 44t, Square taper, 165mm (S), 170mm (M L)
Chain
KMC e11 118 links
Wheels
Front Hub
Front: 12x100mm Quick-Release Thru-Axle (QRTA), Rear: 12x142mm QRTA with integrated speed sensor
Rear Hub
Front: 12x100mm Quick-Release Thru-Axle (QRTA), Rear: 12x142mm QRTA with integrated speed sensor
Rims
275” 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
Spokes
SUS304 14G
Tires
CST C1996 27.5x2.0”
Brakes
Brakes
Shimano MT200 front/rear, Shimano SM RT21, 180mm front, 160mm rear
Cockpit
Stem
Yamaha Alloy 4-bolt faceplate, 31.8 diameter, 80mm length (53cm, 55cm), 100mm length (58cm)
Handlebar
Alloy flat bar zero degree rise, 31.8mm diameter, 640mm width
Headset
Integrated headset with 30mm headset spacers
Seat
Saddle
Yamaha Urban Comfort Cro-Mo Rail
Seatpost
Alloy 30.9 x 295mm (S), 345mm (M L) with 2-bolt adjustable tilt saddle rail clamp
Motor & Battery
Motor
PWSeries ST, 3-bolt Mount, Square taper spindle, Quad Sensor System with rear hub speed sensor, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max), Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 28mph, Support modes: AUTO, ECO+, ECO, STANDARD, HIGH
Battery
Yamaha Lithium Ion with charge-life indicator and self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.67 mm | 1.61 mm |
| Front Center | 604 mm | 614 mm | 632 mm |
| Rake | 44 mm | 43 mm | 44 mm |
| Trail | 75 mm | 71 mm | 66 mm |
| Stack | 599 mm | 610 mm | 622 mm |
| Reach | 351 mm | 366 mm | 386 mm |
| Top Tube Length | 535 mm | 565 mm | 595 mm |
| Seat Tube Angle | 73.1 ° | 72 ° | 71.6 ° |
| Seat Tube Length | 430 mm | 490 mm | 552 mm |
| Head Tube Angle | 69.8 ° | 70.5 ° | 71.1 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1057 mm | 1067 mm | 1086 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Standover Height | 773 mm | 810 mm | 843 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Cross CoreRC belongs to the Yamaha E Cross model. 8 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Yamaha Cross Core 2023 is the most affordable e-bike of this model and has a price of 2399$. On the other hand, Yamaha Cross CoreRC 2023, is the most expensive and costs 2999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 2999$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Cross CoreRC price is 20.93% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Cross CoreRC model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yamaha Cross CoreRC is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cross CoreRC comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
