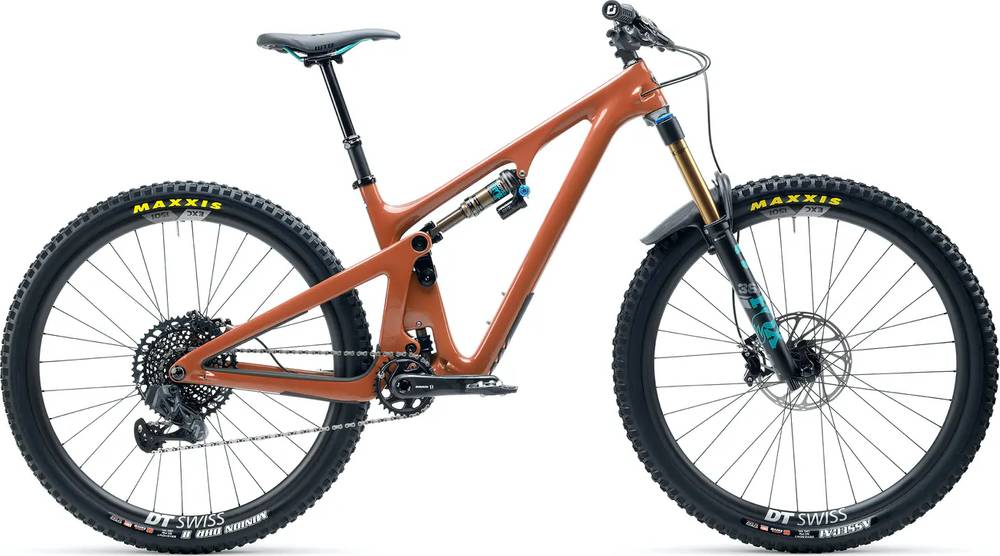

Yeti SB130 — C/Series / C1 2020
2020 Mountain
Estimate price |
5,200$
Weight | 13.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C/Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX PERFORMANCE 36/150MM
Rear Shock
FOX PERFORMANCE DPX2, 210 x 52.5MM
Drivetrain
Rear Derailleur
SHIMANO SLX
Shift Levers
SHIMANO SLX
Cassette
SHIMANO SLX 10-51
Crank
SHIMANO SLX 30T 170MM
Bottom Bracket
SHIMANO XT BB92
Chain
SHIMANO SLX
Wheels
Rims
DT SWISS M1900 30MM
Tires
MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SHIMANO DEORE 4 PISTON
Disk Rotors
SHIMANO 203/SHIMANO 180
Cockpit
Stem
RACE FACE RIDE 35X50MM
Handlebar
RACE FACE AEFFECT R 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337.6 mm | 337.7 mm | 337.7 mm | 337.7 mm |
| Front Center | 740.9 mm | 772.6 mm | 797.2 mm | 826.7 mm |
| Stack | 608 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 567.7 mm | 598.9 mm | 622.2 mm | 650.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 99.2 mm | 110.2 mm | 121.2 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1170 mm | 1202 mm | 1227 mm | 1256 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 720 mm | 722 mm | 725 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB130 — C/Series / C1 completes the Yeti Sb130 model. Yeti launched 45 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Yeti SB130 — C/Series / C1 2020 is the most economical model, with a starting price of 5200$. Yeti SB130 — T/Series / T3 2020 on the other hand costs 8199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Yeti SB130 — C/Series / C1 price was 5200$. Comparing this to the average Trail bike price, we see that the price is 88.27% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.89 kg (30.62 lbs), the SB130 — C/Series / C1 model is a bit heavier than average. In short, the average Trail bike weight is 7.01% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SB130 — C/Series / C1 components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the FOX PERFORMANCE DPX2 model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the SB130 — C/Series / C1 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SB130 — C/Series / C1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Yeti SB130 — C/Series / C1 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
