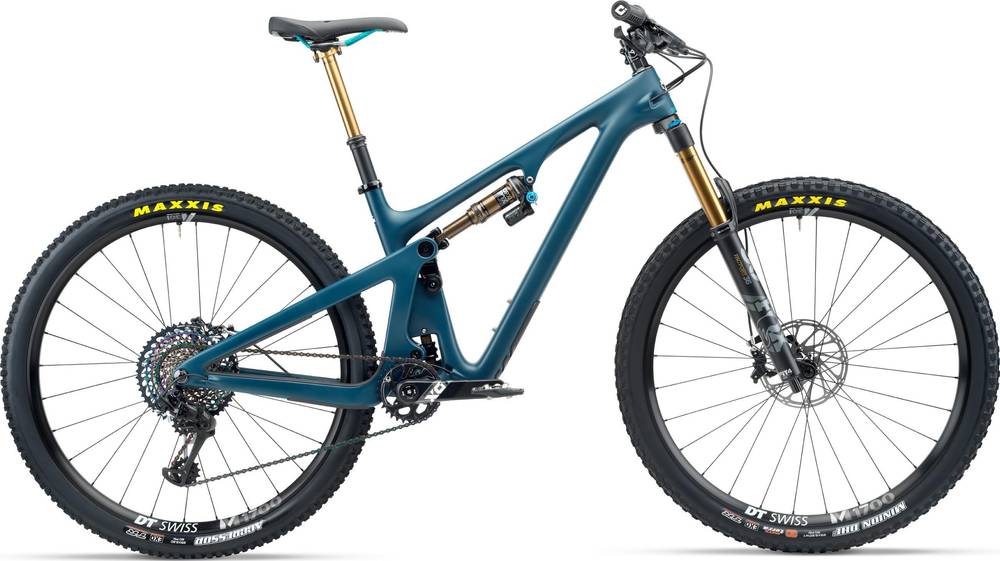

Yeti SB130 — T/Series / T3 2020
2020 Mountain
Estimate price |
8,199$
Weight | 13.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle, X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, trail inspired geometry, Switch Infinity suspension technology, press-fit BB92, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max bearing pivots, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY FIT 4 36/150MM
Rear Shock
FOX FACTORY DPX2, 210 x 52.5MM
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE
Shift Levers
SRAM XX1 EAGLE
Cassette
SRAM XX1 EAGLE 1299 10-50
Crank
SRAM X01 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM XX1 EAGLE
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM CENTERLINE 180/180
Cockpit
Stem
RACE FACE TURBINE 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB VOLT CUSTOM
Seatpost
FOX TRANSFER FACTORY 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337.6 mm | 337.7 mm | 337.7 mm | 337.7 mm |
| Front Center | 740.9 mm | 772.6 mm | 797.2 mm | 826.7 mm |
| Stack | 608 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 567.7 mm | 598.9 mm | 622.2 mm | 650.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 99.2 mm | 110.2 mm | 121.2 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1170 mm | 1202 mm | 1227 mm | 1256 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 720 mm | 722 mm | 725 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SB130 — T/Series / T3 completes the Yeti Sb130 model. Yeti launched 45 bikes of this model so far. You can easily view all of the Yeti Sb130 bikes models from 2020, here.
Model range prices
The most economical model, the Yeti SB130 — C/Series / C1 2020 has a starting price of 5200$. Yeti SB130 — T/Series / T3 2020 on the other hand is the most expensive at 8199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8199$. Doing a quick comparison, we notice that SB130 — T/Series / T3 price is 196.85% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.32 kg (29.37 lbs), Yeti bike is slightly heavier than average. In other words, this model is 2.62% heavier than the average Trail bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
SB130 — T/Series / T3 components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FACTORY DPX2, with a travel distance of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the SB130 — T/Series / T3 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Yeti SB130 — T/Series / T3 includes a dropper post. Therefore, climbing or descending will be a breeze.
