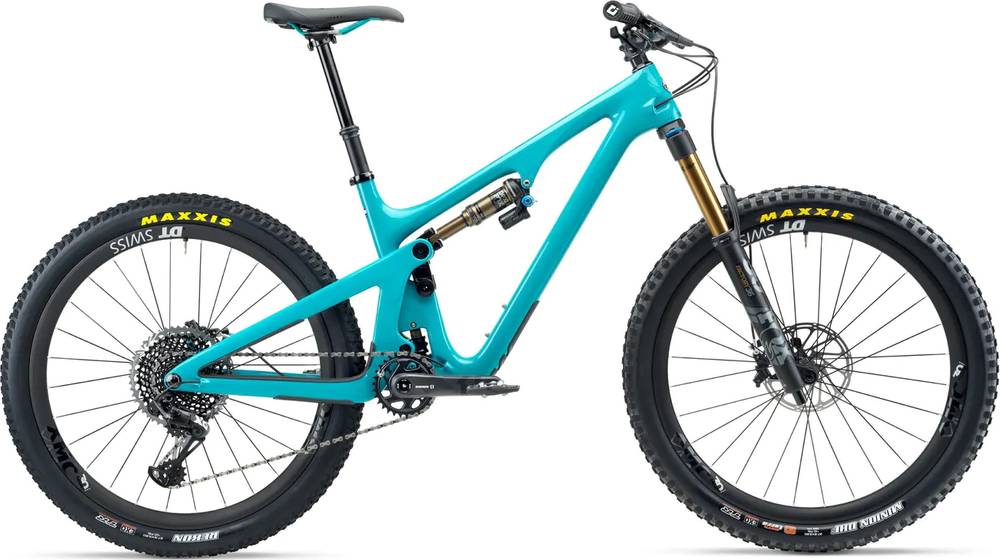

Yeti SB140 — T/Series / T2 2020
2020 Mountain
Estimate price |
7,399$
Weight | 13.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY GRIP 2 36/160MM
Rear Shock
FOX FACTORY DPX2, 210 x 55MM
Drivetrain
Rear Derailleur
SRAM X01 EAGLE
Shift Levers
SRAM X01 EAGLE
Cassette
SRAM X01 EAGLE 1295 10-50
Crank
SRAM X1 EAGLE 30T 170MM
Bottom Bracket
SRAM DUB BB92
Chain
SRAM GX EAGLE
Wheels
Rims
DT SWISS M1700 30MM
Tires
MAXXIS MINION DHF 2.6 EXO
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM CENTERLINE 180/180
Cockpit
Stem
RACE FACE TURBINE BASIC 35X50MM
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
WTB VOLT CUSTOM
Seatpost
FOX TRANSFER 31.6MM / XS-SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.3 mm | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm | 339.9 mm |
| Front Center | 711.8 mm | 742.9 mm | 775.2 mm | 799.9 mm | 829.6 mm |
| Stack | 587.9 mm | 600.9 mm | 605.9 mm | 615.9 mm | 625.9 mm |
| Reach | 411.1 mm | 436.1 mm | 466.1 mm | 486.1 mm | 511.1 mm |
| Top Tube Length | 544.2 mm | 573 mm | 604.5 mm | 627.5 mm | 655.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 77 ° | 77 ° | 76.9 ° |
| Seat Tube Length | 355 mm | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95.5 mm | 109.9 mm | 115.4 mm | 126.4 mm | 137.5 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1150 mm | 1181 mm | 1214 mm | 1238 mm | 1268 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Standover Height | 708 mm | 713 mm | 716 mm | 718 mm | 720 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SB140 — T/Series / T2 is part of the Yeti Sb140 model. Yeti launched 79 bikes of this model so far. You can easily view all of the Yeti Sb140 bikes models from 2020, here.
Model range prices
Yeti SB140 — C/Series / C1 2020 is the most economical model, with a starting price of 5399$. Yeti SB140 — T/Series / T3 2020 on the other hand costs 8299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7399$. Doing a quick comparison, we notice that SB140 — T/Series / T2 price is 167.89% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, SB140 — T/Series / T2 has a weight of 13.18 kg (29.06 lbs). In other words, this model is 1.54% heavier than the average Trail bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SB140 — T/Series / T2 components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The SB140 — T/Series / T2 has a rear shock with a travel of 140mm. The model FOX FACTORY DPX2 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The SB140 — T/Series / T2 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SB140 — T/Series / T2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Yeti model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
