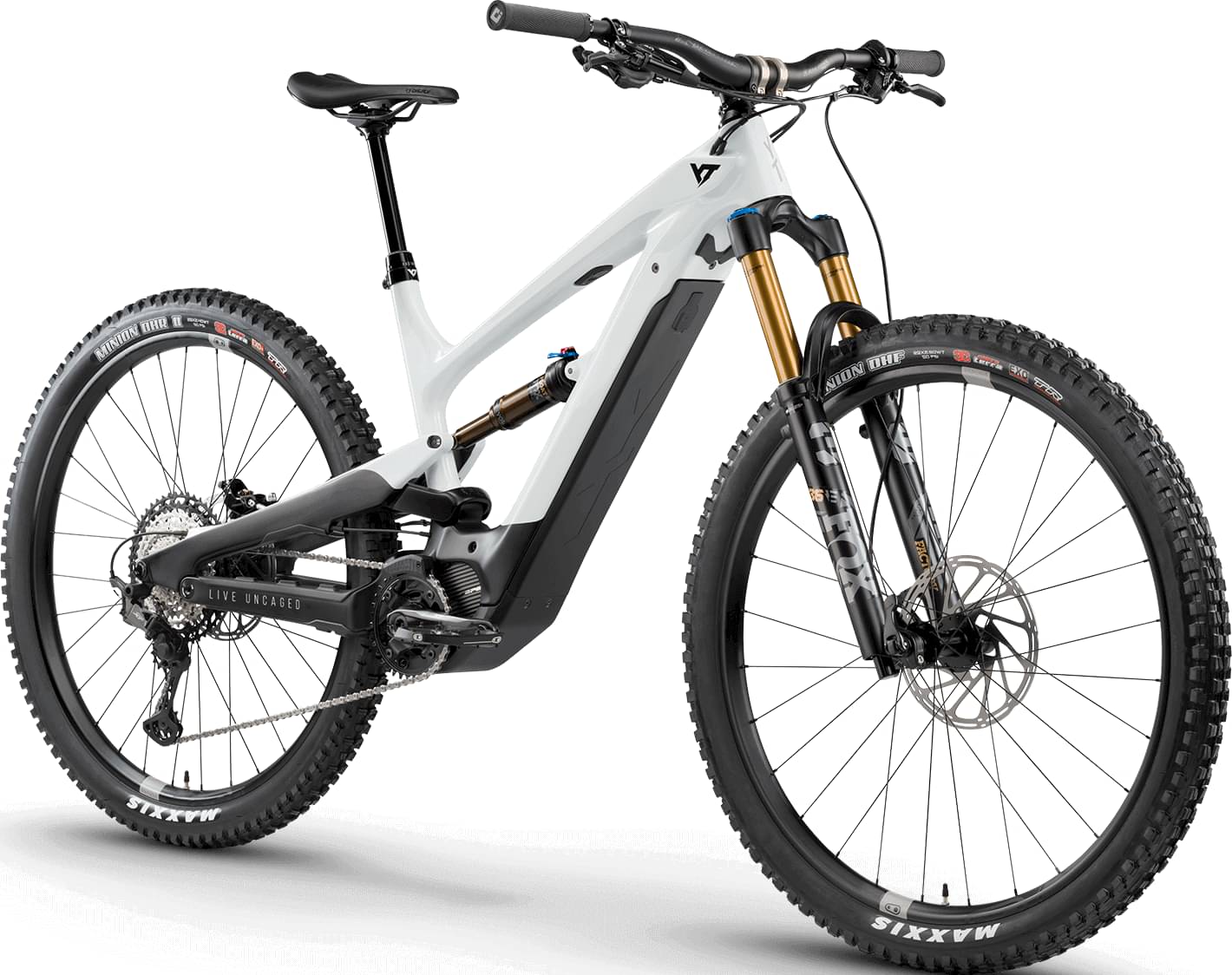

yt Industries Decoy CORE 4 29 2022
2022 E-bike
Estimate price |
8,028$
Weight | 21.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
163cm - 174cm
LG
171cm - 183cm
XL
180cm - 192cm
XXL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
FOX 36 FLOAT FACTORY E-BIKE+ , 29“ | 150 mm Travel | 110 x 15 mm Axle | 51mm Offset Grip2 Damper, Adjustable High- and Low-Speed Compression and Rebound, Air Pressure, Kashima Coating
Rear Shock
FOX FLOAT DPS FACTORY , Shock Length: 230 mm | Shock Stroke: 60 mm ? 145 mm Travel 3-pos lever, Low-Speed Compression, Low-Speed Rebound, Air Pressure, Kashima Coating
Drivetrain
Rear Derailleur
SHIMANO XT, M8100 | Shadow Plus | 12-fach
Shift Levers
SHIMANO XT, M8100 | 12-speed I 2-Way-Release
Cassette
SHIMANO XT, M8100 | 10-51T | 12-speed I Hyperglide+
Crank
SHIMANO XT, M8150 | Crank Arm Length 165 mm | HOLLOWTEC
Bottom Bracket
BSA, 73mm, threaded
Chain Guide
E13 e*SPEC Plus, 2 Bolt | 34-38T | Compact Slider
Wheels
Rims
CRANKBROTHERS SYNTHESIS ALLOY E-MTB I9 1/1 , Front: Aluminum Rim 29“ | Inner Width 31,5 mm | Front Hub 110 x 15 mm | Rear: Aluminum Rim 29“ | Inner Width 31,5 mm | Rear Hub 148 x 12 mm | Freehub I9 1/1 Microspline
Tires
FRONT: MAXXIS MINION DHF | REAR: MAXXIS MINION DHR II , Front: Tire Size 29“ x 2.5 WT | EXO Casing | 3C MaxxTerra Compound | Tubeless Ready Rear: Tire Size 29“ x 2.4 WT | EXO+ Casing | 3C MaxxTerra Compound | Tubeless Ready
Brakes
Brakes
SRAM CODE RSC, Rotor CENTERLINE Ø front 200 mm / rear 200 mm Adjustable Bite Point and Reach
Cockpit
Stem
RENTHAL APEX 35, Length 50 mm | 35 mm Clamp | Rise +/-6°
Handlebar
RENTHAL FATBAR 35, Rise 30 mm | Width 780 mm | 7° Back Sweep | 5° Up Sweep
Grips
ODI ELITE MOTION V2.1, Lock On
Headset
ACROS AZX-260, Block Lock I High Cap I 2 Spacer 5 mm I Flatcapset
Seat
Saddle
SDG BEL Air 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail
Seatpost
YT POSTMAN, Ø 31.6 mm | 125 mm Drop (Frame Size S-M) | 150 mm Drop (Frame Size L) | 170 mm Drop (Frame Size XL-XXL) | MMX-Remote
Motor & Battery
Motor
SHIMANO EP8, Torque 85 NM | Power 250 W I E-TUBE PROJECT APP
Battery
SMP YT CUSTOM, Removable | 540 Wh Capacity | 36 V
Remote
SHIMANO E7000, Monochrome I 35 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.397 mm | 1.346 mm | 1.308 mm | 1.274 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 741 mm | 763 mm | 785 mm | 809 mm | 833 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 113 mm | 112 mm | 112 mm | 112 mm |
| Stack | 614 mm | 619 mm | 623 mm | 632 mm | 641 mm |
| Reach | 423 mm | 443 mm | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 569 mm | 591 mm | 608 mm | 635 mm | 658 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1197 mm | 1219 mm | 1241 mm | 1265 mm | 1289 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 744 mm | 731 mm | 718 mm | 708 mm | 697 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 171 cm | 180 cm | 189 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
Model Overview
Decoy CORE 4 29 is a Yt E Decoy model. 42 e-bikes variations carry this model name so far. You can easily view all of the Yt E Decoy e-bikes models from 2022, here.
Model range prices
YT Industries Decoy CORE 2 29 2022 is the most economical model, with a starting price of 5626$. YT Industries Decoy CORE 4 MX 2022 on the other hand costs 7962$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, YT Industries Decoy CORE 4 29 price was 7431$. In conclusion, this e-bike price is 120.83% higher than the price of the average Trail e-bike.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
YT Industries Decoy CORE 4 29 it’s weighing 21.8 kg (48.06 lbs). At this weight, is a bit lighter than average. In other words, this model is 8.72% lighter than the average Trail e-bike.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPS FACTORY rear shock model, which has a travel of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, YT Industries Decoy CORE 4 29 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
YT Industries Decoy CORE 4 29 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
