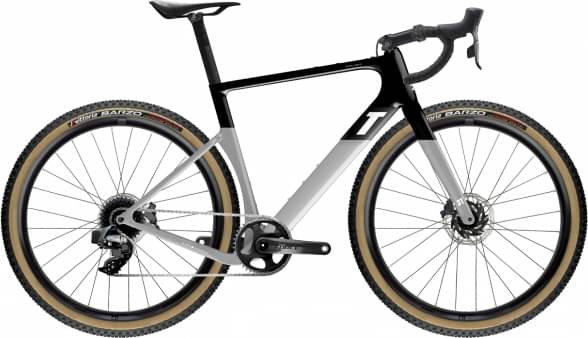

3T Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy 2023
2023 E-bike
Estimate price |
9,174$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force eTap -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T Exploro RaceMax BOOST
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Force D1 AXS Max 36
Front Derailleur
-
Shift Levers
SRAM Force D1 AXS
Cassette
12-speed Rival AXS 10-36T
Crank
SRAM Force D1 AXS, 38T, Narrow Q- Factor ( XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
Wheels
Rims
Rodi alloy 650b
Tires
Pirelli Cinturato Gravel M 650b
Brakes
Brakes
SRAM Force D1 AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth (XXS: 70mm - 51: 80mm - 54: 90mm - 56: 100mm - 58: 110mm - 61: 120mm)
Handlebar
3T Superergo LTD (XXS: 38cm - 51: 40cm - 54&56: 42cm - 58&61: 44cm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
Selle Italia Model X Superflow
Seatpost
3T Exploro seatpost for Ritchey clamp
Motor & Battery
Motor
Mahle X20 motor
Battery
Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 60 mm | 61 mm | 59 mm | 50 mm | 57 mm | 57 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
Model Overview
Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy is a 3t E Exploro Racemax model. 3T launched 12 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
3T Exploro RaceMax BOOST Dropbar 2023 is the most economical model, with a starting price of 5499$. 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023 on the other hand costs 12740$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, 3T Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy price was 8493$. Comparing the average cost of a Gravel e-bike to this one, you will see that Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy price is 133.2% more expensive.
Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. 3T Exploro RACEMAX BOOST Force D1 AXS 1X12 650b Alloy is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
