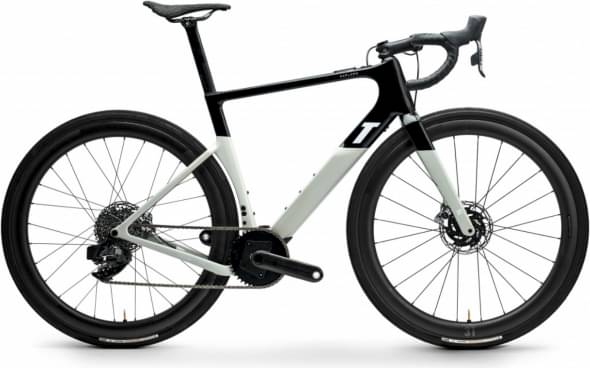

3T Exploro RaceMax BOOST Superlight Red AXS 1X12 700c 2023
2023 E-bike
Estimate price |
11,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3T Exploro RaceMax BOOST
Suspension Fork
Fango RaceMax w/ compact crown
Drivetrain
Rear Derailleur
SRAM Red AXS MAX 36 T
Front Derailleur
-
Shift Levers
SRAM Red AXS
Cassette
12-speed Red AXS 10-36T
Crank
3T Torno LTD, 38T chainring (XXS&51:170mm-54&56:172.5mm-58&61:175mm)
Wheels
Rims
3T Discus 45 | 40 LTD
Tires
–
Brakes
Brakes
SRAM Red AXS Hydraulic Disc w/ SRAM 160mm rotor
Cockpit
Stem
3T Apto Stealth
Handlebar
3T Superergo LTD (XXS: 38cm - 51: 40cm - 54&56: 42cm - 58&61: 44cm)
Headset
3T MinMax IS42/28.6 + IS 47/38
Seat
Saddle
Fizik Antares Adaptive 00 Blue or San Marco Shortfit 2.0 3D Carbon FX depending on availability
Seatpost
3T Exploro seatpost for Ritchey clamp
Motor & Battery
Motor
Mahle X20 motor
Battery
Mahle iX250 (236Wh) hidden battery included. Optional 172 Wh Range Extender available
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 274 mm | 274 mm |
| Front Center | 596 mm | 606 mm | 606 mm | 611 mm | 621 mm | 641 mm |
| Rake | 62 mm | 58 mm | 52 mm | 54 mm | 48 mm | 48 mm |
| Trail | 68 mm | 69 mm | 65 mm | 57 mm | 63 mm | 63 mm |
| Stack | 522 mm | 544 mm | 566 mm | 586 mm | 606 mm | 634 mm |
| Reach | 357 mm | 368 mm | 379 mm | 387 mm | 395 mm | 406 mm |
| Top Tube Length | 508 mm | 528 mm | 548 mm | 568 mm | 588 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 436 mm | 463 mm | 490 mm | 518 mm | 545 mm | 572 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 147 mm | 161 mm | 180 mm | 201 mm | 232 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1000 mm | 1010 mm | 1010 mm | 1016 mm | 1026 mm | 1046 mm |
| Bottom Bracket Drop | 79 mm | 79 mm | 77 mm | 77 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 168 cm | 176 cm | 183 cm | cm |
About this model
Exploro RaceMax BOOST Superlight Red AXS 1X12 700c is part of the 3t E Exploro Racemax model. 3T launched 12 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
3T Exploro RaceMax BOOST Dropbar 2023 is the most affordable e-bike of this model and has a price of 5499$. On the other hand, 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 Dropbar 2023, is the most expensive and costs 12740$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When 3T released this model in 2023, its price was 11999$. Comparing this to the average Gravel e-bike price, we see that the price is 229.46% higher.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 700c 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. 3T Exploro RaceMax BOOST Superlight Red AXS 1X12 700c is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
