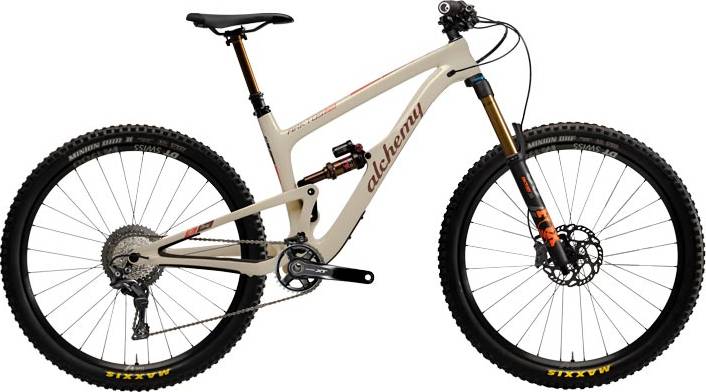

Alchemy Arktos 29 — GX Eagle 2019
2019 Mountain
Estimate price |
5,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX 1275 Eagle 10-50T
Crank
SRAM GX EAGLE FC X01 EAGLE SB+ DUB 175 BLK 32
Bottom Bracket
SRAM BB DUB BSA MTB73 SB+
Chain
SRAM GX Eagle 12 SPD
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 29×2.4 DC EXO TR
Brakes
Brakes
Shimano XT M8000 Hydraulic
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Aeffect R 50mm 0 Degree
Handlebar
Race Face Aeffect R 35×780 20mm Rise
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
X-Fusion Manic 150mm 31.6mm with Trigger Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 731 mm | 749 mm | 775 mm | 812 mm |
| Rake | 41 mm | 29 mm | 40 mm | 40 mm |
| Trail | 126 mm | 139 mm | 127 mm | 127 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 411 mm | 437 mm | 445 mm | 476 mm |
| Top Tube Length | 573 mm | 603 mm | 623 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1178 mm | 1204 mm | 1241 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 785 mm | 787 mm | 795 mm | 823 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos 29 — GX Eagle is an Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Alchemy Arktos 29 ST — NX Eagle 2019 is the cheapest bike model and costs 4899$. Alchemy Arktos NINE7FIVE — XTR 2019 is the most expensive one and costs 9499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Alchemy Arktos 29 — GX Eagle price was 5199$. If we compare this with the average Trail bike cost we notice that the price is 88.23% more expensive.
Arktos 29 — GX Eagle components
Fork
The Arktos 29 — GX Eagle comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Alchemy Arktos 29 — GX Eagle bike has the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 model installed, and has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Arktos 29 — GX Eagle bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Alchemy Arktos 29 — GX Eagle bike has 4 sizes, in the range of 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Alchemy Arktos 29 — GX Eagle comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
