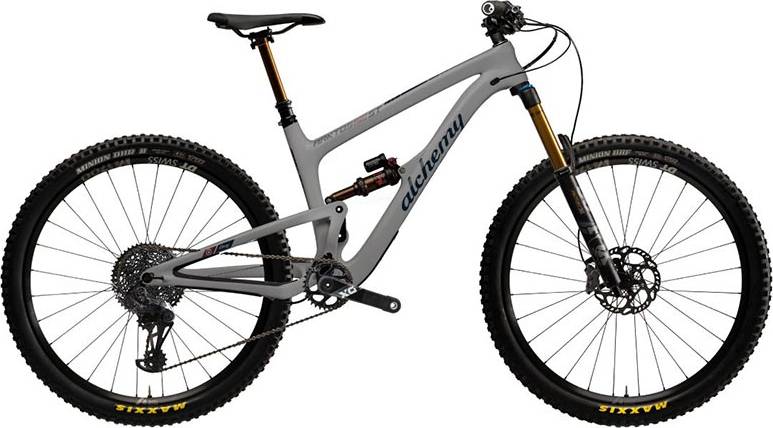

Alchemy Arktos 29 ST — XT 2019
2019 Mountain
Estimate price |
4,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 140mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, 10×22 Hardware
Drivetrain
Rear Derailleur
Shimano XT 11-speed Rear RD-M8000 GS Shadow+
Shift Levers
Shimano XT SL?M8000?Rapidfire Plus
Cassette
Shimano XT M8000 11-Speed 11-46t
Crank
Shimano XT FC-M8000-1 32 T 175mm
Bottom Bracket
Shimano XT Threaded
Chain
Shimano XT 11 Speed
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.3 DC EXO TR, Maxxis Minion DHR 29×2.3 DC EXO TR
Brakes
Brakes
Shimano XT M8000 Hydraulic
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Turbine R 50mm, 35mm, 0 degree
Handlebar
Race Face Turbine R 780mm, 20mm, 35mm
Grips
DMR Deathgrip Thin
Seat
Saddle
WTB Volt Race 142×165
Seatpost
Fox Factory 150mm Transfer w/ Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 722 mm | 742 mm | 766 mm | 803 mm |
| Rake | 40 mm | 31 mm | 41 mm | 41 mm |
| Trail | 122 mm | 132 mm | 121 mm | 121 mm |
| Stack | 612 mm | 621 mm | 635 mm | 648 mm |
| Reach | 414 mm | 440 mm | 447 mm | 478 mm |
| Top Tube Length | 571 mm | 601 mm | 620 mm | 656 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1148 mm | 1168 mm | 1192 mm | 1229 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Standover Height | 781 mm | 783 mm | 791 mm | 819 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos 29 ST — XT completes the Alchemy Arktos model. Alchemy launched 77 bikes of this model so far. You can easily view all of the Alchemy Arktos bikes models from 2019, here.
Model range prices
The most economical model, the Alchemy Arktos 29 ST — NX Eagle 2019 has a starting price of 4899$. Alchemy Arktos NINE7FIVE — XTR 2019 on the other hand is the most expensive at 9499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 4899$. If we compare this with the average Trail bike cost we notice that the price is 77.37% more expensive.
Overview of components
Fork
Alchemy Arktos 29 ST — XT 2019 bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0 model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Arktos 29 ST — XT 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Arktos 29 ST — XT has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Alchemy Arktos 29 ST — XT includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
