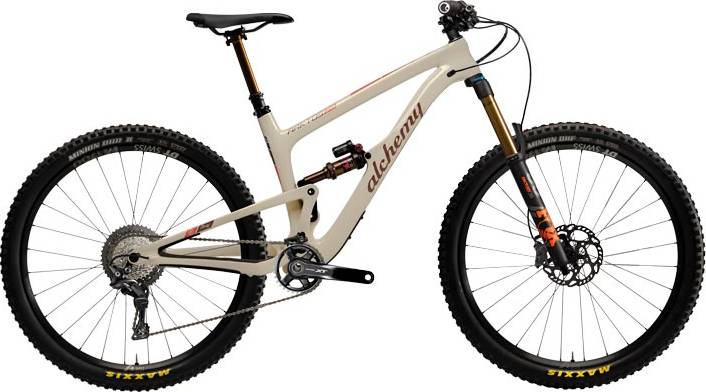

Alchemy Arktos 29 — X01 Eagle 2019
2019 Mountain
Estimate price |
6,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 160mm Boost 15mm Grip 2
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25, 10×22 Hardware
Drivetrain
Rear Derailleur
SRAM X01 Eagle RD X01 EAGLE BLK
Shift Levers
SRAM X01 Eagle SL X01 EAGLE TRIGGER BLK
Cassette
SRAM XG 1275 EAGLE 10-50T
Crank
SRAM X01 EAGLE FC X01 EAGLE SB+ DUB 175 BLK 32
Bottom Bracket
SRAM DUB BSA MTB73 SB+
Chain
SRAM GX Eagle 12 Speed
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 29×2.4 DC EXO TR
Brakes
Brakes
Shimano XT M8000 Hydraulic
Disk Rotors
SShimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Turbine R 50mm, 35mm, 0 degree
Handlebar
Race Face Turbine R 780mm, 20mm, 35mm
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
Fox Factory 125mm or 150mm Transfer w/ Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.43 mm | 1.37 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 731 mm | 749 mm | 775 mm | 812 mm |
| Rake | 41 mm | 29 mm | 40 mm | 40 mm |
| Trail | 126 mm | 139 mm | 127 mm | 127 mm |
| Stack | 613 mm | 623 mm | 637 mm | 651 mm |
| Reach | 411 mm | 437 mm | 445 mm | 476 mm |
| Top Tube Length | 573 mm | 603 mm | 623 mm | 658 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1160 mm | 1178 mm | 1204 mm | 1241 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 785 mm | 787 mm | 795 mm | 823 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
Model Overview
Arktos 29 — X01 Eagle is an Alchemy Arktos model. Alchemy released 77 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Alchemy Arktos 29 ST — NX Eagle 2019 is the most economical model, with a starting price of 4899$. Alchemy Arktos NINE7FIVE — XTR 2019 on the other hand costs 9499$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6699$. Comparing the average cost of a Trail bike to this one, you will see that Arktos 29 — X01 Eagle price is 142.54% higher.
Arktos 29 — X01 Eagle components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.25 rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Arktos 29 — X01 Eagle bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Arktos 29 — X01 Eagle. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
