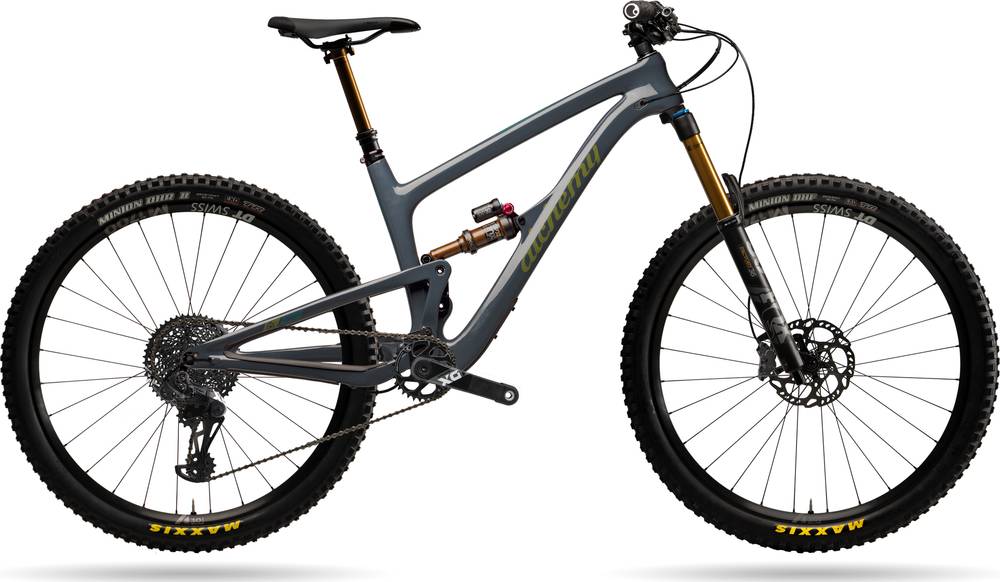

Alchemy Arktos 29ST — XT 2019
2019 Mountain
Estimate price |
5,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox 36 29 Factory Kashima 140mm Boost 15mm
Rear Shock
Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, 10×22 Hardware
Drivetrain
Rear Derailleur
Shimano XT 11-speed Rear RD-M8000 GS Shadow+
Shift Levers
Shimano XT SL?M8000?Rapidfire Plus
Cassette
Shimano XT M8000 11-Speed 11-46t
Crank
Shimano XT FC-M8000-1 32 T 175mm
Bottom Bracket
Shimano XT Threaded
Chain
Shimano XT 11 Speed
Wheels
Rims
DT Swiss M 1700 SPLINE 29 – 30 mm CL 15/110mm
Tires
Maxxis Minion DHF 29×2.5 DC EXO TR, Maxxis Minion DHR 29×2.4 DC EXO TR
Brakes
Brakes
Shimano XT M8000 Hydraulic
Disk Rotors
Shimano 180mm Center Lock Ice Tech Rotor
Cockpit
Stem
Race Face Turbine R 50mm, 35mm, 0 degree
Handlebar
Race Face Turbine R 780mm, 20mm, 35mm
Grips
Ergon GA 20 Black
Seat
Saddle
WTB Volt Race 142×165
Seatpost
Fox Factory 125mm Transfer w/ Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 722 mm | 742 mm | 766 mm | 803 mm |
| Rake | 40 mm | 31 mm | 41 mm | 41 mm |
| Trail | 122 mm | 132 mm | 121 mm | 121 mm |
| Stack | 612 mm | 621 mm | 635 mm | 648 mm |
| Reach | 414 mm | 440 mm | 447 mm | 478 mm |
| Top Tube Length | 571 mm | 601 mm | 620 mm | 656 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 483 mm | 518 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1148 mm | 1168 mm | 1192 mm | 1229 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm | 41 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm |
About this model
Arktos 29ST — XT belongs to the Alchemy Arktos model. Alchemy launched 77 bikes of this model so far. You can easily view all of the Alchemy Arktos bikes models from 2019, here.
Model range prices
Alchemy Arktos 29 ST — NX Eagle 2019 is the most affordable bike of this model and has a price of 4899$. On the other hand, Alchemy Arktos NINE7FIVE — XTR 2019, is the most expensive and costs 9499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Alchemy Arktos 29ST — XT price was 5399$. Comparing this to the average Trail bike price, we see that the price is 95.47% more expensive.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox DPX2 Factory Kashima EVOL LV 3-Position Adjust 7.875×2.0, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Arktos 29ST — XT model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arktos 29ST — XT comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Alchemy Arktos 29ST — XT includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
