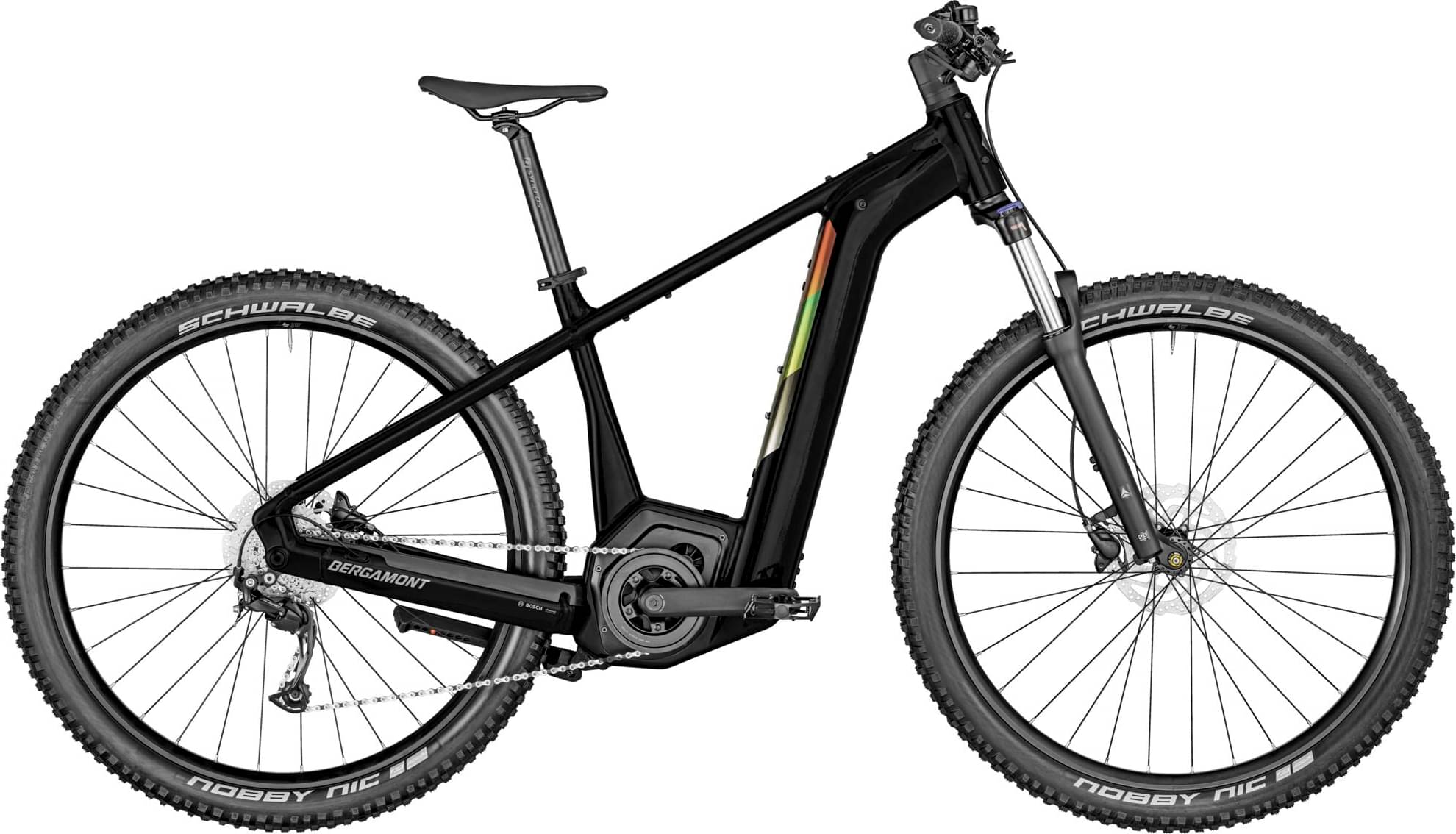

Bergamont E-Revox Edition 2023
2023 E-bike
Estimate price |
3,679$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour XCM32 LO DS, 120 mm, rebound adjust, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano RD-M3100, Shadow
Shift Levers
Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG201-9, 11-36t
Crank
FSA CK-200, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e9S
Pedals
MTB alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Nobby Nic Performance, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Performance, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.63 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm | 683 mm |
| Reach | 398 mm | 405 mm | 413 mm | 418 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Revox Edition belongs to the Bergamont E E Revox model. There are 62 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bergamont E-Revox 4 2023 is the cheapest e-bike model and costs 3161$. Bergamont E-Revox Elite Rigid EQ 2023 is the most expensive one and costs 4925$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3344$. If we compare this with the average Trail e-bike cost we notice that the price is 0.63% lower.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, E-Revox Edition has a weight of 26.5 kg (58.42 lbs). To sum up, it’s 11.81% heavier than the average weight of Trail e-bikes.
E-Revox Edition components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The E-Revox Edition 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Revox Edition has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
