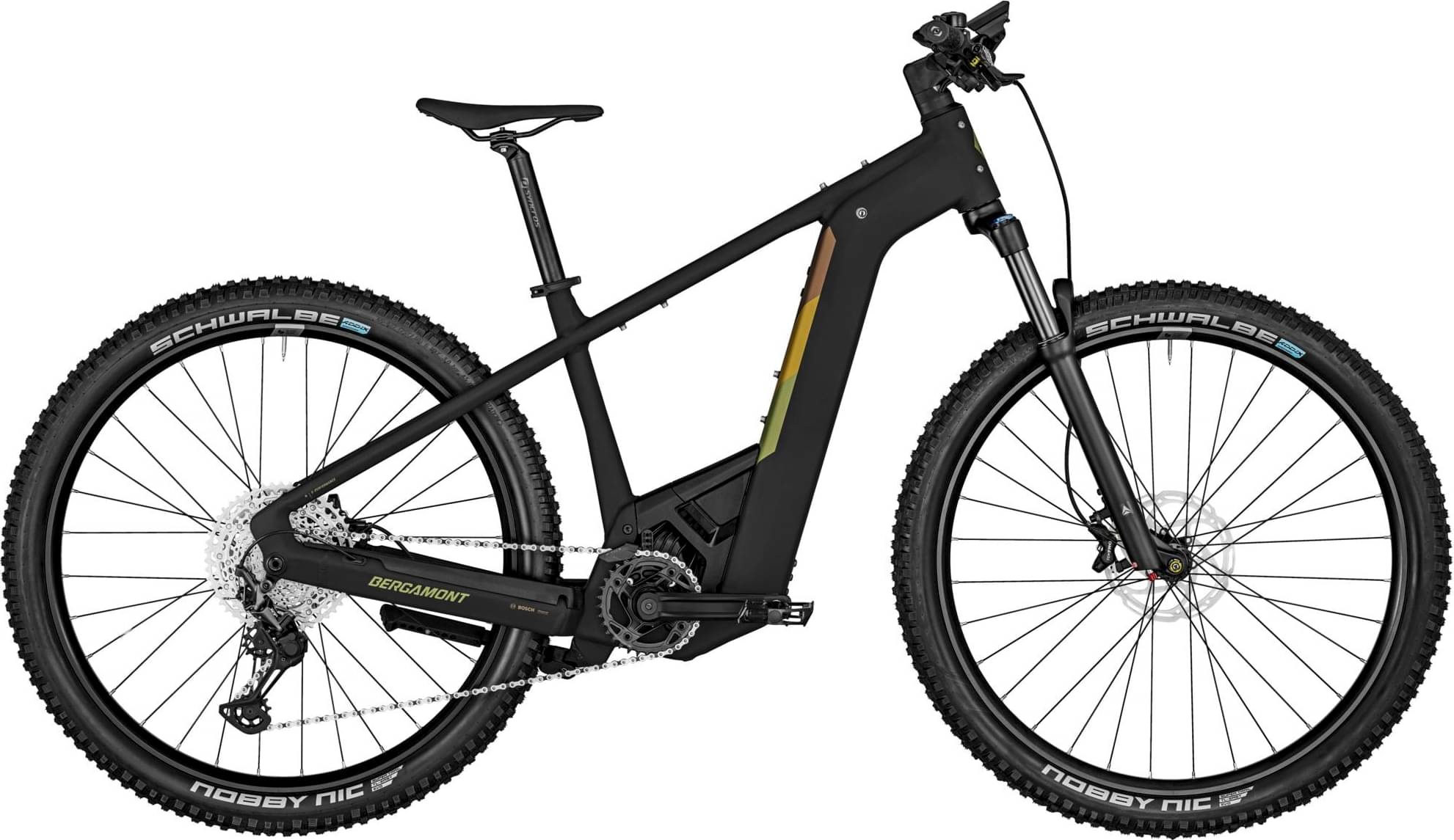

Bergamont E-Revox Expert 2023
2023 E-bike
Estimate price |
4,883$
Weight | 27.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
MTB alloy
Wheels
Front Hub
Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.63 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm | 683 mm |
| Reach | 398 mm | 405 mm | 413 mm | 418 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox Expert belongs to the Bergamont E E Revox model. Bergamont launched 62 e-bikes of this model so far. Take a sneak peek at all Bergamont E E Revox e-bikes models from 2023, by clicking here.
Model range prices
Bergamont E-Revox 4 2023 is the cheapest e-bike model and costs 3161$. Bergamont E-Revox Elite Rigid EQ 2023 is the most expensive one and costs 4925$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4439$. If we compare this with the average Trail e-bike cost we notice that the price is 31.92% more expensive.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Bergamont E-Revox Expert it’s weighing 27.1 kg (59.75 lbs). At this weight, is considerably heavier than average. In other words, this model is 14.35% heavier than the average Trail e-bike.
E-Revox Expert components
Fork
Bergamont E-Revox Expert 2023 e-bike is equipped with the Suntour XCR Air fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on E-Revox Expert are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Revox Expert has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Bergamont E-Revox Expert e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
