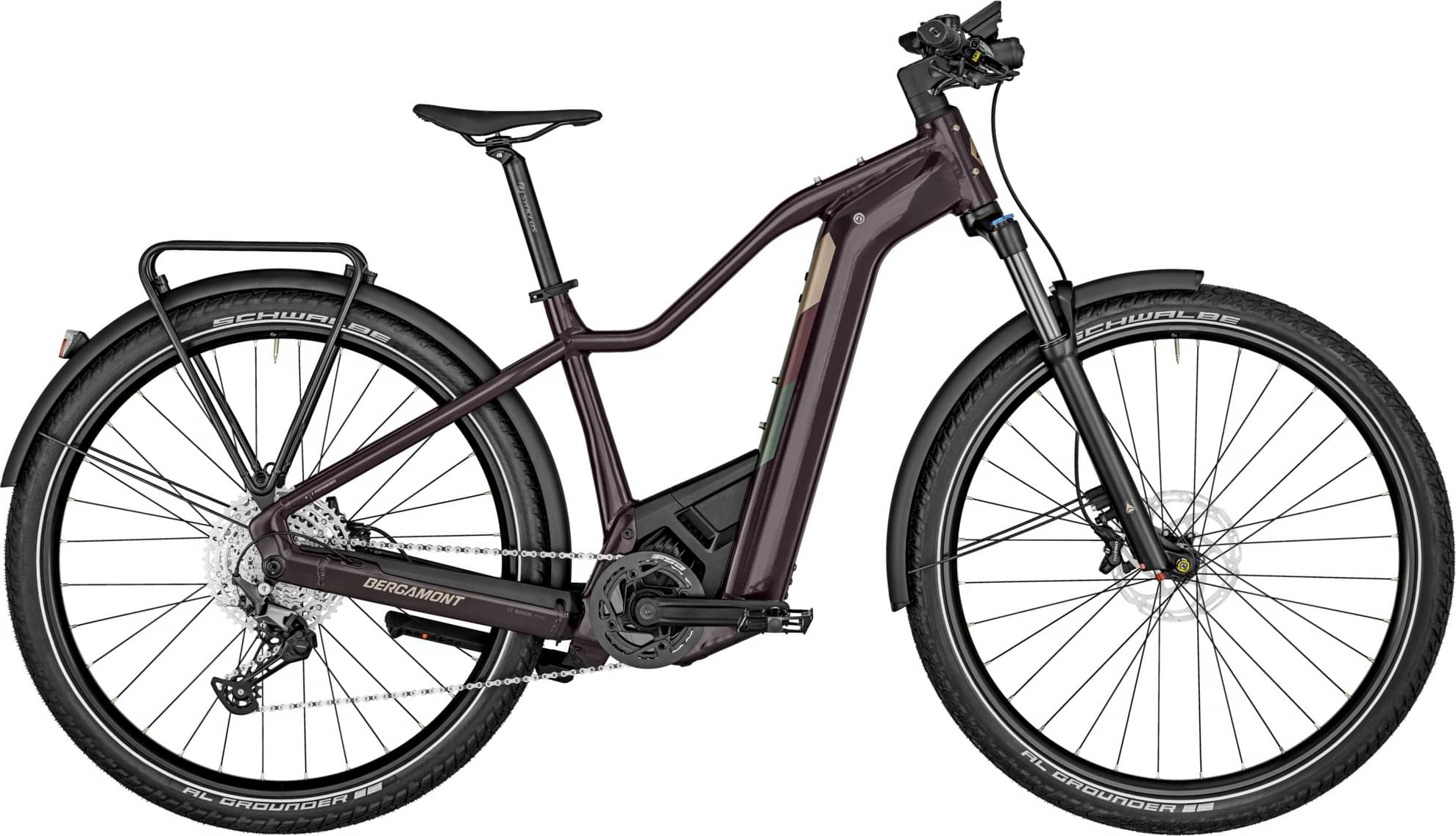

Bergamont E-Revox Expert FMN EQ 2023
2023 E-bike
Estimate price |
5,151$
Weight | 27.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour XCR34 LOR Air, 120 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
MTB alloy
Wheels
Front Hub
Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Al Grounder, 29x2.35" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Al Grounder, 29x2.35" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Tektro HD-M745, hydraulic disc brake, 4-piston
Brake Levers
Tektro HD-M745, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Syncros E-MTB
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm |
| Reach | 398 mm | 405 mm | 413 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
E-Revox Expert FMN EQ completes the Bergamont E E Revox model. Bergamont released 62 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Bergamont E-Revox 4 2023 is the most economical model, with a starting price of 3161$. Bergamont E-Revox Elite Rigid EQ 2023 on the other hand costs 4925$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4682$. If we compare this with the average Trail e-bike cost we notice that the price is 39.14% higher.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Bergamont E-Revox Expert FMN EQ it’s weighing 27.8 kg (61.29 lbs). At this weight, is much heavier than average. In short, the average Trail e-bike weight is 17.3% lower than this one.
E-Revox Expert FMN EQ components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The E-Revox Expert FMN EQ 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Revox Expert FMN EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
