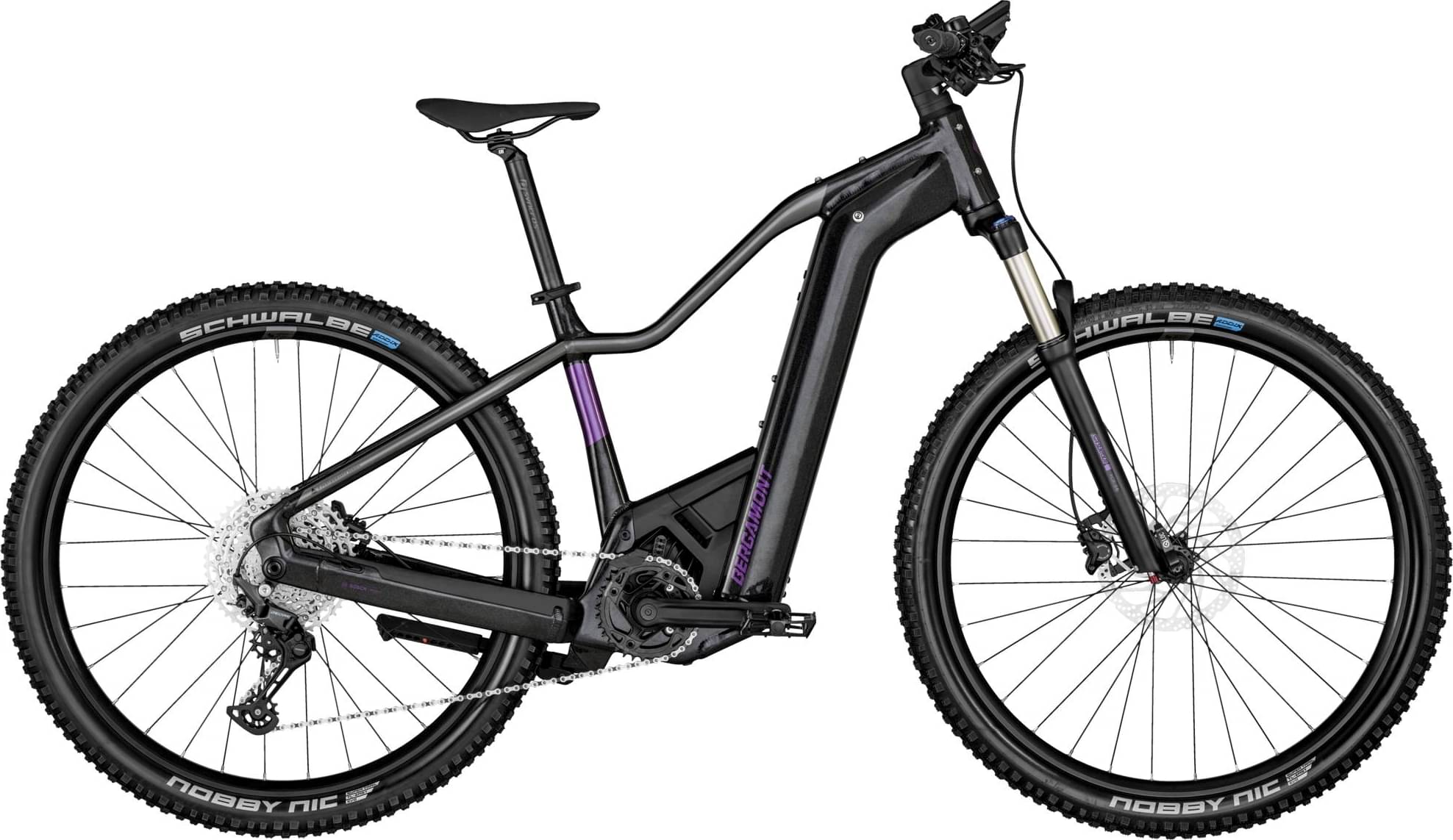

Bergamont E-Revox Premium Expert FMN 2023
2023 E-bike
Estimate price |
5,084$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour XCR34 LOR, 120 mm, rebound adjust, 15x110 mm axle
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6100, Shadow Plus
Shift Levers
Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M6100, 10-51t
Crank
FSA CK-320, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e12S
Pedals
VPE-506
Wheels
Front Hub
Shimano HB-MT410-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT410-B, centerlock, disc, 12x148 mm axle
Rims
Cross X18, disc, eyelets, width: 30 mm
Spokes
stainless, black
Tires
Front: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light, Rear: Schwalbe Nobby Nic Evo, Super Trail, Tubeless-Easy, 29x2.60" Tube: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston
Brake Levers
Shimano BL-MT4100, hydraulic disc brake
Cockpit
Stem
Satori Viper, 0°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Ergon GA20
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with block lock
Seat
Saddle
Syncros Savona 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 646 mm | 656 mm | 665 mm |
| Reach | 398 mm | 405 mm | 413 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1190 mm | 1201 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 794 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
E-Revox Premium Expert FMN completes the Bergamont E E Revox model. 62 e-bikes variations carry this model name so far. Take a sneak peek at all Bergamont E E Revox e-bikes models from 2023, by clicking here.
Model range prices
Bergamont E-Revox 4 2023 is the most affordable e-bike of this model and has a price of 3161$. On the other hand, Bergamont E-Revox Elite Rigid EQ 2023, is the most expensive and costs 4925$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 4621$. Comparing the average cost of a Trail e-bike to this one, you will see that E-Revox Premium Expert FMN price is 37.33% more expensive.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.9 kg (57.1 lbs), the E-Revox Premium Expert FMN model is a bit heavier than average. In conclusion, the average Trail e-bike weighs 9.28% less than E-Revox Premium Expert FMN.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The E-Revox Premium Expert FMN 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Revox Premium Expert FMN has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
