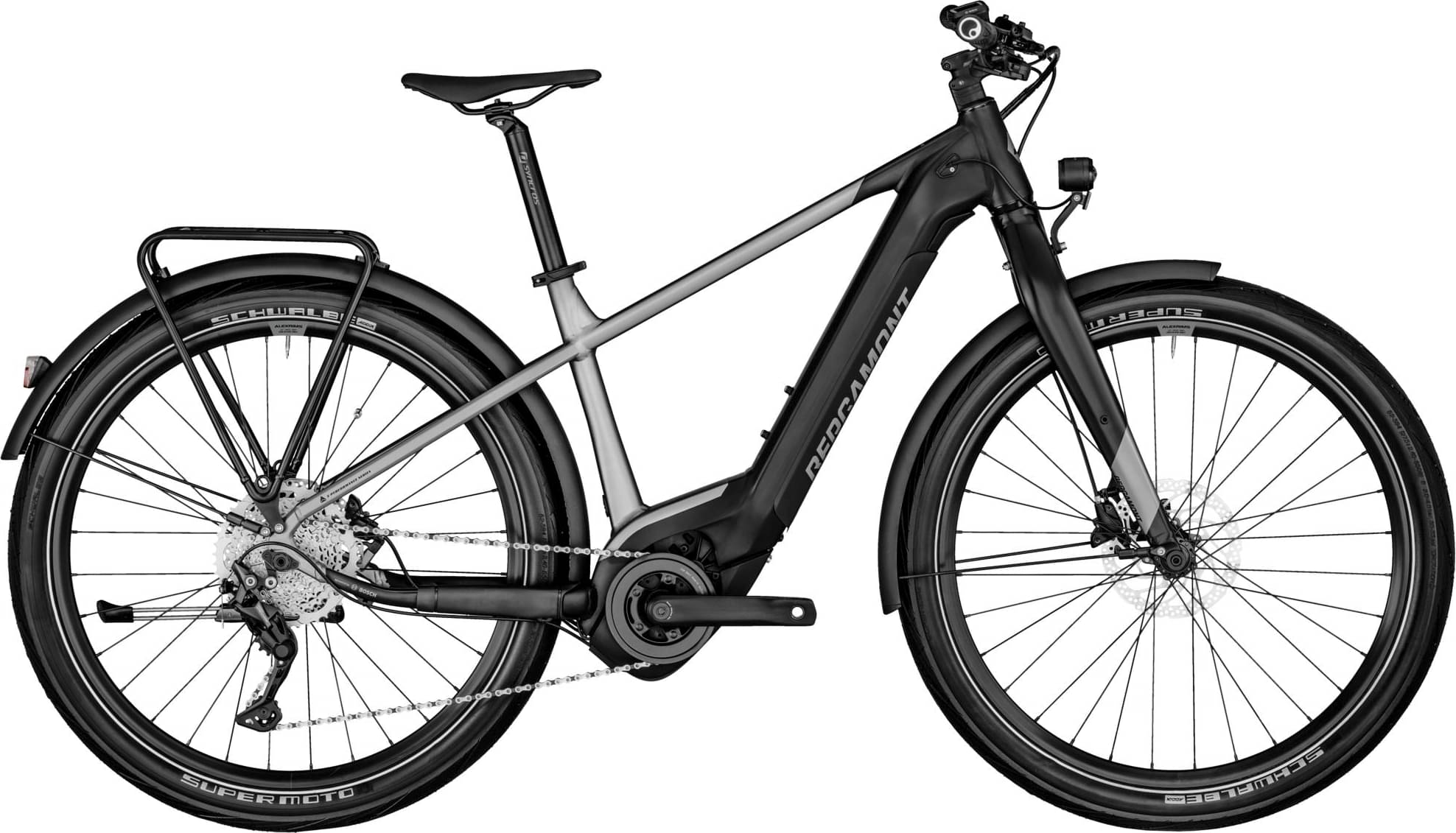

Bergamont E-Revox Rigid EQ 2023
2023 E-bike
Estimate price |
4,080$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore, FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
BGM 27.5" MTB rigid fork
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-46t
Crank
FSA CK-200, 34t, 170 mm
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
none
Wheels
Front Hub
Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Rims
Alex EXR30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Front: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light, Rear: Schwalbe Super Moto, Performance, 27.5x2.40" Tube: Schwalbe SV21B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT201, hydraulic disc brake
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
Grips
Ergon GA20
Headset
Prestine PT F13X, A-Headset, semi-integrated, tapered
Seat
Saddle
Syncros Tofino 2.5
Seatpost
Syncros M3.0
Motor & Battery
Motor
Bosch Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.56 mm | 1.52 mm | 1.51 mm |
| Front Center | 651 mm | 659 mm | 675 mm | 675 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 622 mm | 628 mm | 632 mm | 648 mm |
| Reach | 396 mm | 403 mm | 416 mm | 428 mm |
| Top Tube Length | 585 mm | 593 mm | 602 mm | 619 mm |
| Seat Tube Length | 420 mm | 445 mm | 480 mm | 525 mm |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1125 mm | 1133 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 751 mm | 761 mm | 768 mm | 799 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Revox Rigid EQ belongs to the Bergamont E E Revox model. Bergamont launched 62 e-bikes of this model so far. Take a sneak peek at all Bergamont E E Revox e-bikes models from 2023, by clicking here.
Model range prices
Bergamont E-Revox 4 2023 is the most economical model, with a starting price of 3161$. Bergamont E-Revox Elite Rigid EQ 2023 on the other hand costs 4925$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Bergamont released this model in 2023, its price was 3709$. Doing a quick comparison, we notice that E-Revox Rigid EQ price is 44.38% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, E-Revox Rigid EQ has a weight of 23.5 kg (51.81 lbs). In conclusion, the average Commuter e-bike weighs 7.23% more than E-Revox Rigid EQ.
Overview of components
Wheels
When it comes to wheels, the E-Revox Rigid EQ e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Revox Rigid EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
E-Revox Rigid EQ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
