Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, FSA -
Suspension Hardtail -
Motor mid-drive -
Battery 500Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
City Wave Alloy 28" Internal Cable Routing
Suspension Fork
SR Suntour NEX DS 63mm
Drivetrain
Rear Derailleur
Shimano Acera 8sp
Front Derailleur
-
Shift Levers
Shimano Acera
Cassette
Shimano HG31 8sp (11-32T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG40
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Kenda K1129 700x45C
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Traditional
Handlebar
BH City Alloy 640mm
Grips
BH Ergonomic
Headset
Semi-Integrated 1" 1/8
Seat
Saddle
Selle Royal Freeway gel
Seatpost
Alloy 31,6
Motor & Battery
Motor
TS System
Battery
500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

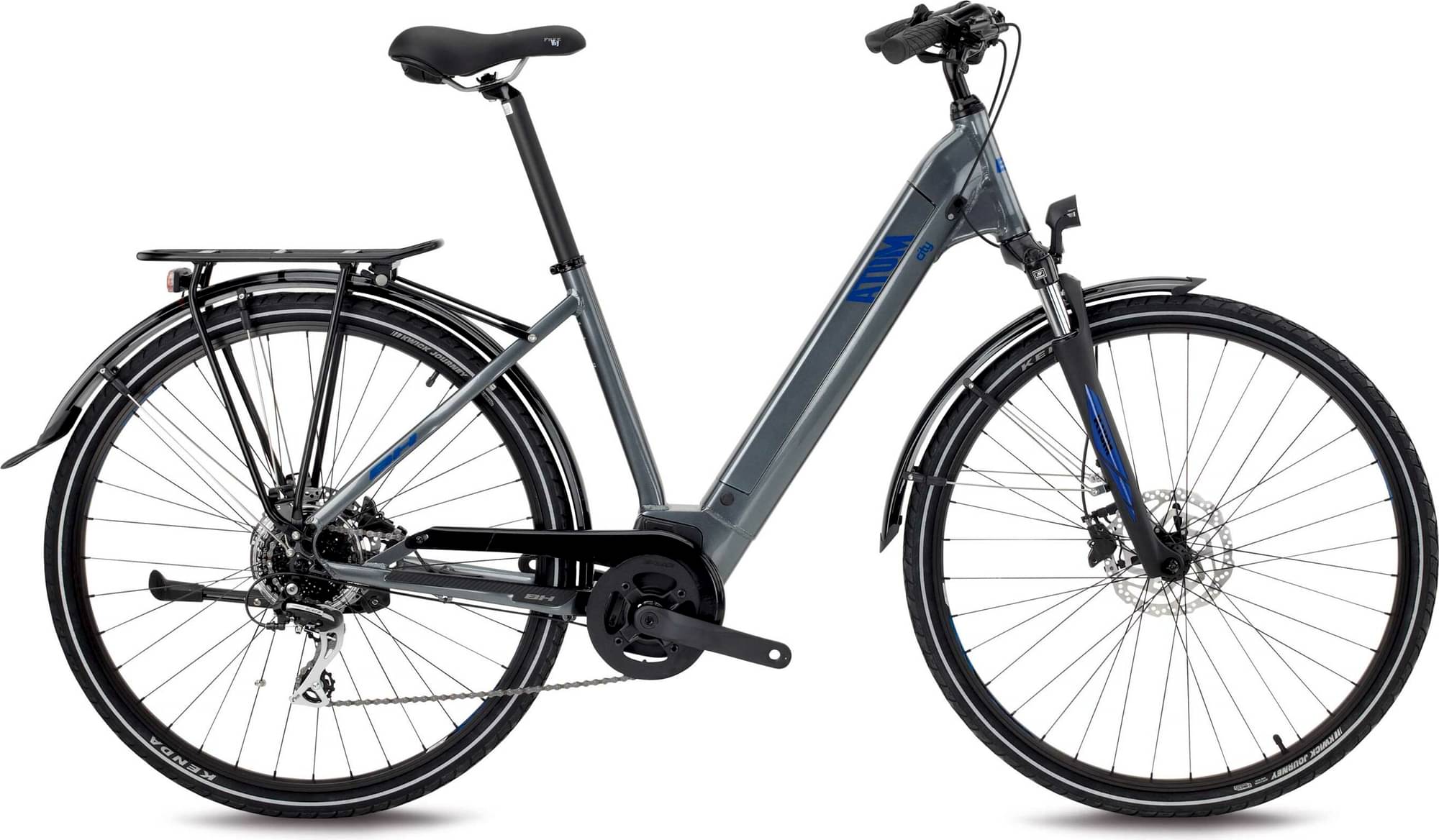

ATOM CITY WAVE completes the Bh E Atom model. BH released 32 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH ATOM JET 2023 is the cheapest e-bike model and costs 2918$. BH ATOM LYNX 8.1 2023 is the most expensive one and costs 4986$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2918$. Doing a quick comparison, we notice that ATOM CITY WAVE price is 17.66% more expensive than the average cost of a Hybrid e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork

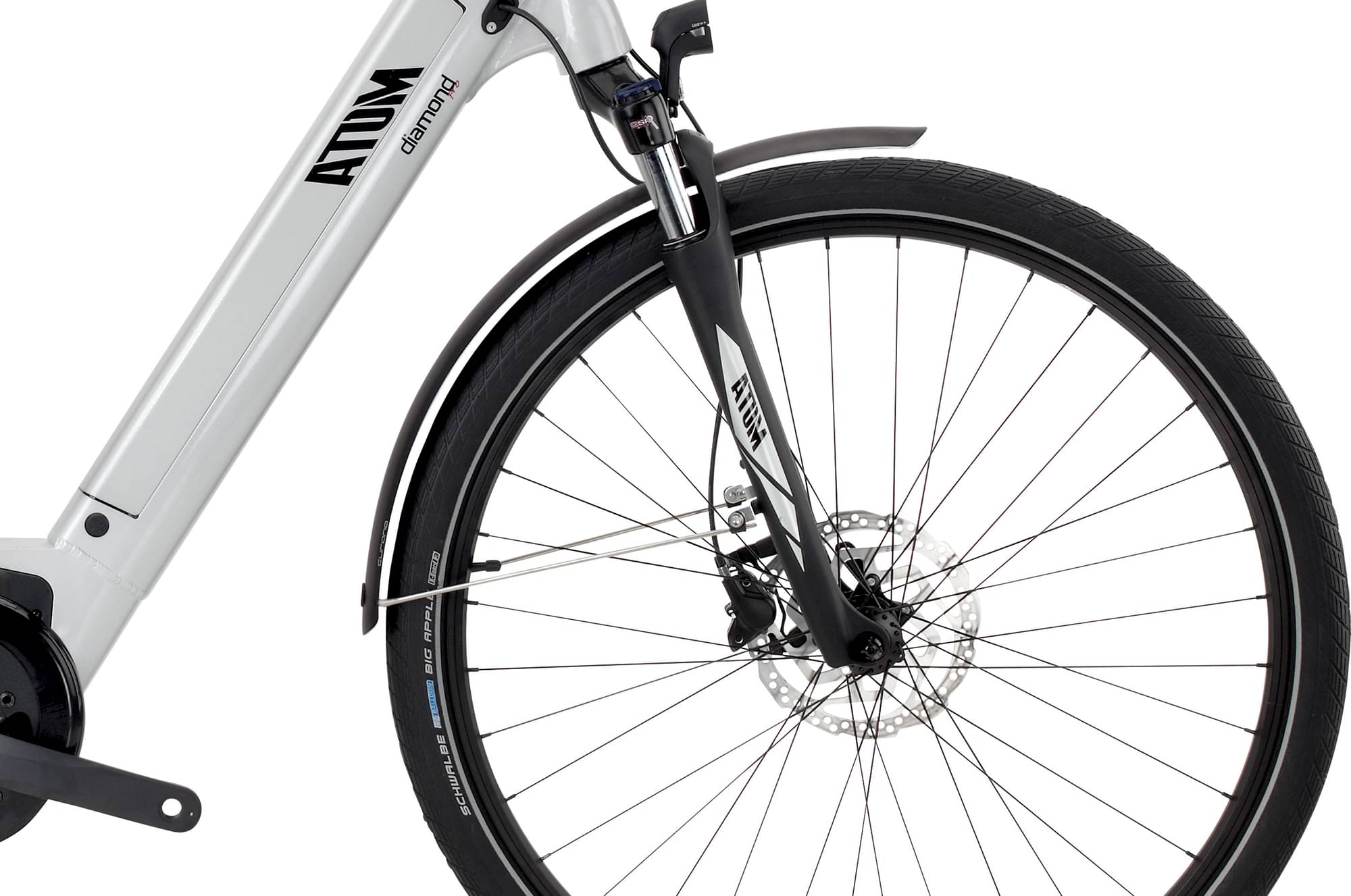

This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the ATOM CITY WAVE e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOM CITY WAVE is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
