Bike details
Overview
Key information split into simple groups.

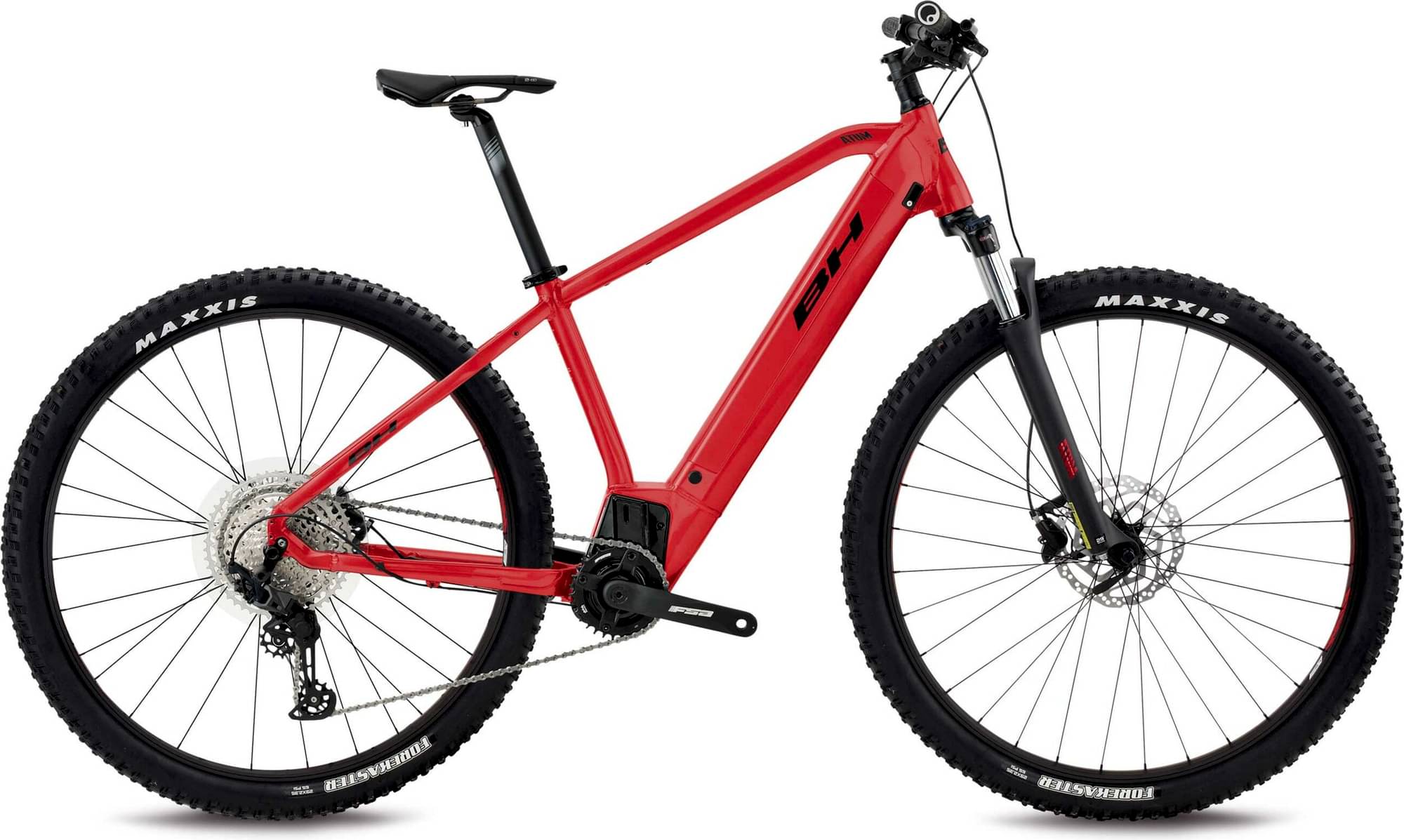

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29" Internal Cable Routing
Suspension Fork
SR Suntour X1 LO 100mm
Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 34T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Maxxis Forekaster TPI60 29"X2,35"
Brakes
Brakes
Front: Shimano MT201 180mm, Rear: Shimano MT201 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
Ergon GE10
Headset
Tapered with adaptor
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Alloy 31,6

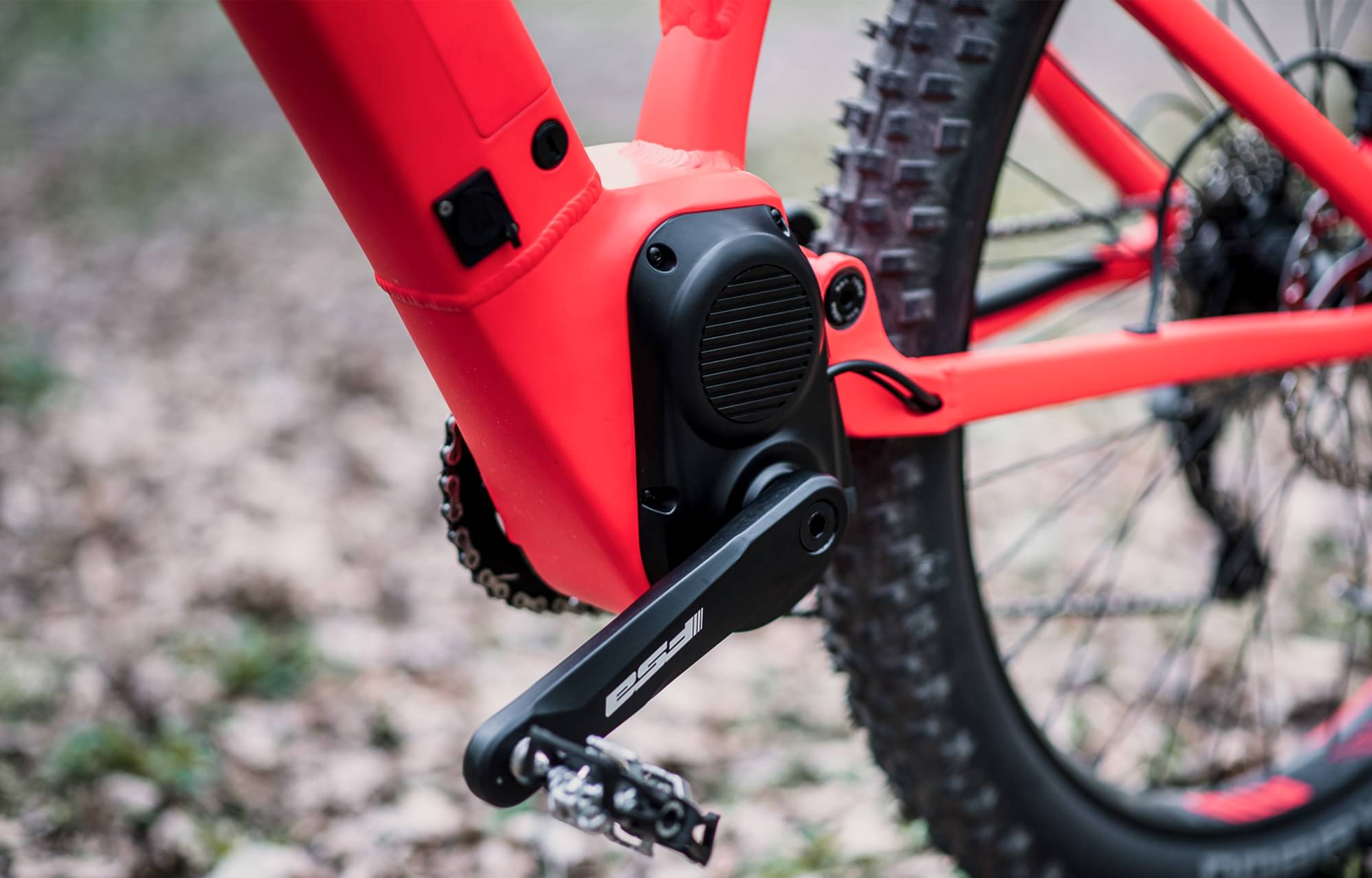

Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.55 mm | 1.53 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Stack | 656 mm | 661 mm | 675 mm |
| Reach | 408 mm | 426 mm | 442 mm |
| Top Tube Length | 603 mm | 622 mm | 646 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 145 mm | 160 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm |
| Wheelbase | 695 mm | 709 mm | 732 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ATOM PRO belongs to the Bh E Atom model. 32 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH ATOM JET 2023 is the cheapest e-bike model and costs 2918$. BH ATOM LYNX 8.1 2023 is the most expensive one and costs 4986$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness e-bikes
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, BH ATOM PRO price was 3891$. Doing a quick comparison, we notice that ATOM PRO price is 65.5% higher than the average cost of a Fitness e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The ATOM PRO 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOM PRO is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
