Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components

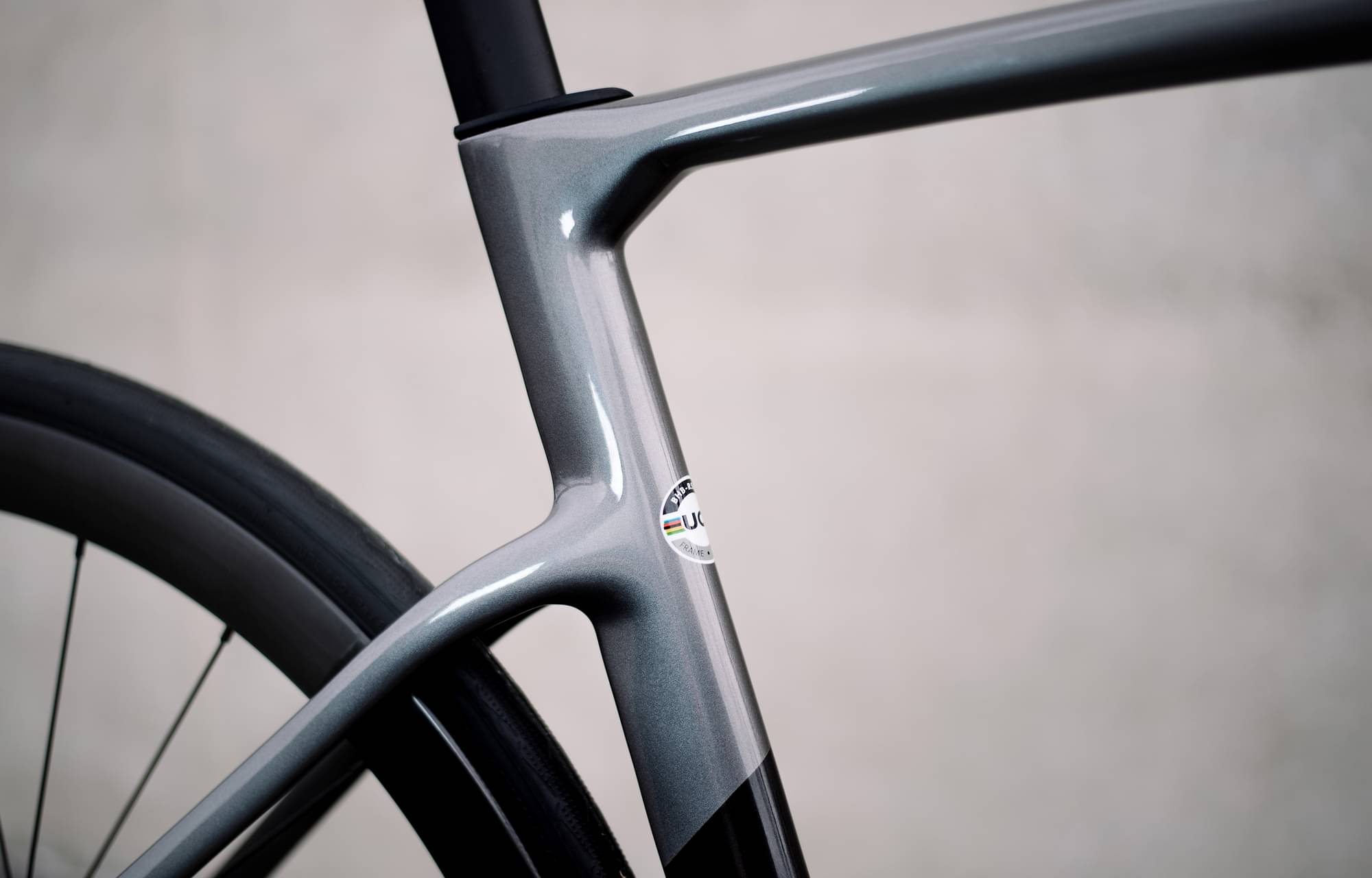

Frame
Frame
RS1 Disc ACR Monocoque, PC Layup
Suspension Fork
RS1 Disc Full Integrated Tapeder, Full Carbon 1.5
Drivetrain

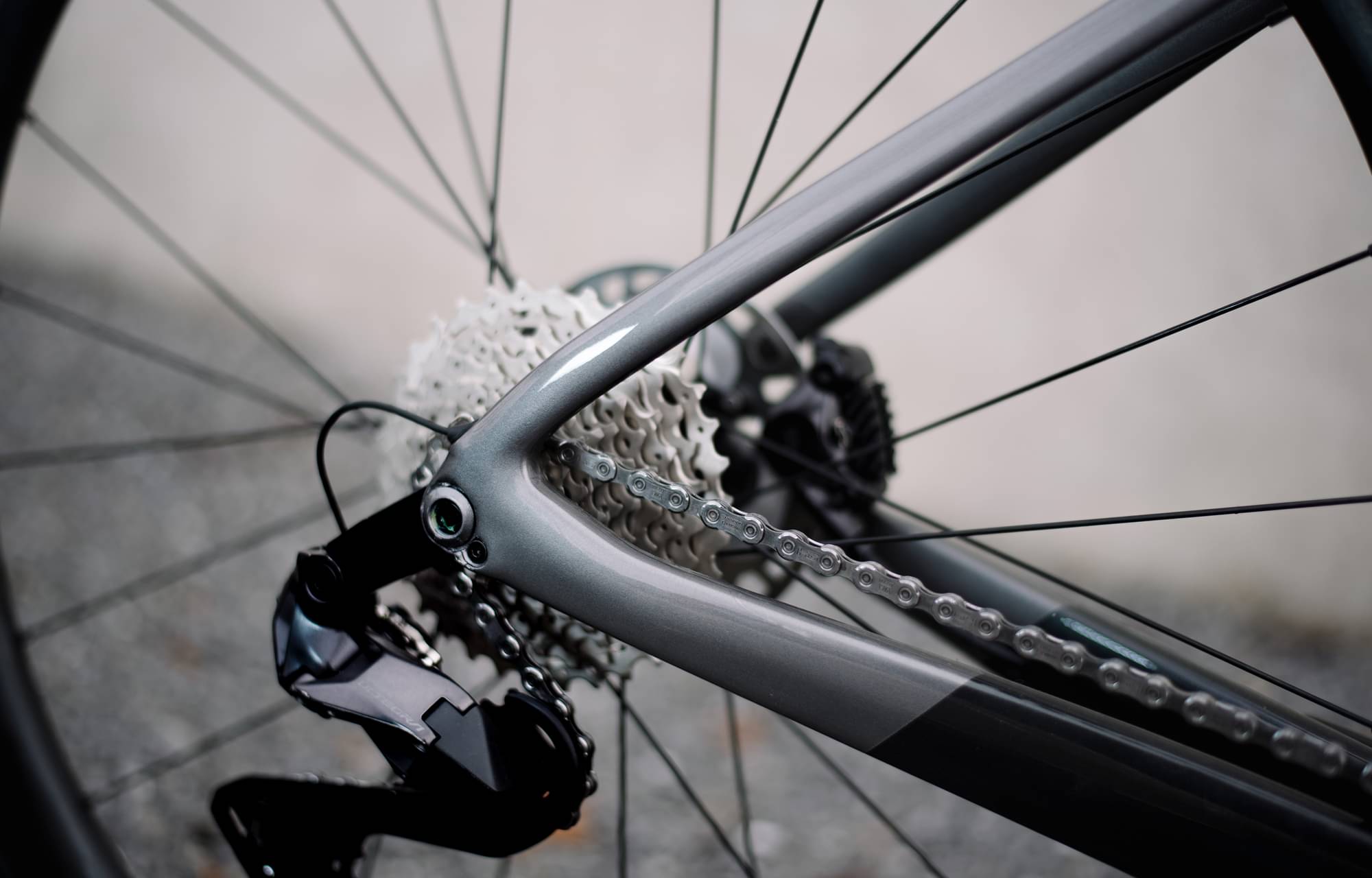

Rear Derailleur
SRAM Rival Etap 12sp
Front Derailleur
SRAM Rival Etap
Shift Levers
SRAM Rival Etap
Cassette
SRAM Rival 10/36
Crank
SRAM Rival 48/35, X, Crank set, SRAM Rival 48/35, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
SRAM
Wheels
Rims
Slite XDR
Tires
Hutchinson Epsilon 700x 28
Brakes
Brakes
Front: SRAM Rival hydraulic, Rear: SRAM Rival hydraulic
Cockpit
Stem
FSA NS ACR, X, Stem, FSA NS ACR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
FSA Energy ACR Compact, X, Handlebar, FSA Energy ACR Compact, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm
Headset
FSA ACR
Seat
Saddle
BH Ergo G
Seatpost
RS1 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Top Tube Length | 508 mm | 523 mm | 537 mm | 553 mm | 568 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 404 mm | 404 mm | 407 mm | 407 mm | 410 mm | 410 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
RS1 4.0 completes the Bh Rs1 model. BH released 10 bikes variations of this model so far. You can easily view all of the Bh Rs1 bikes models from 2023, here.
Model range prices
BH RS1 3.0 2023 is the most affordable bike of this model and has a price of 3891$. On the other hand, BH RS1 5.0 2023, is the most expensive and costs 7297$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, BH RS1 4.0 price was 5473$. In conclusion, this bike price is 63.37% higher than the price of the average Race bike.
RS1 4.0 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the RS1 4.0 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes

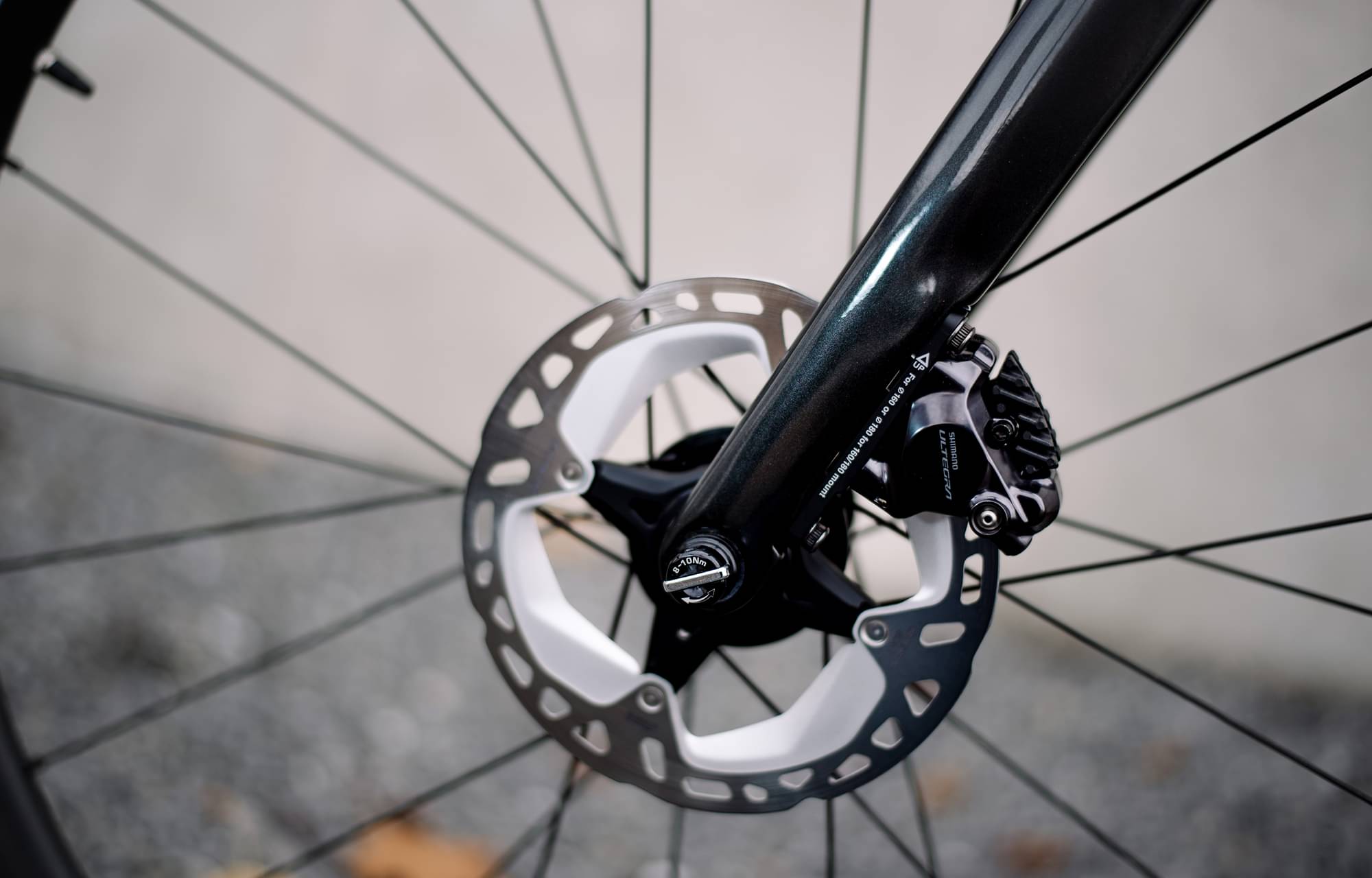

Nothing is more important on a bike than its ability to brake properly. BH RS1 4.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
