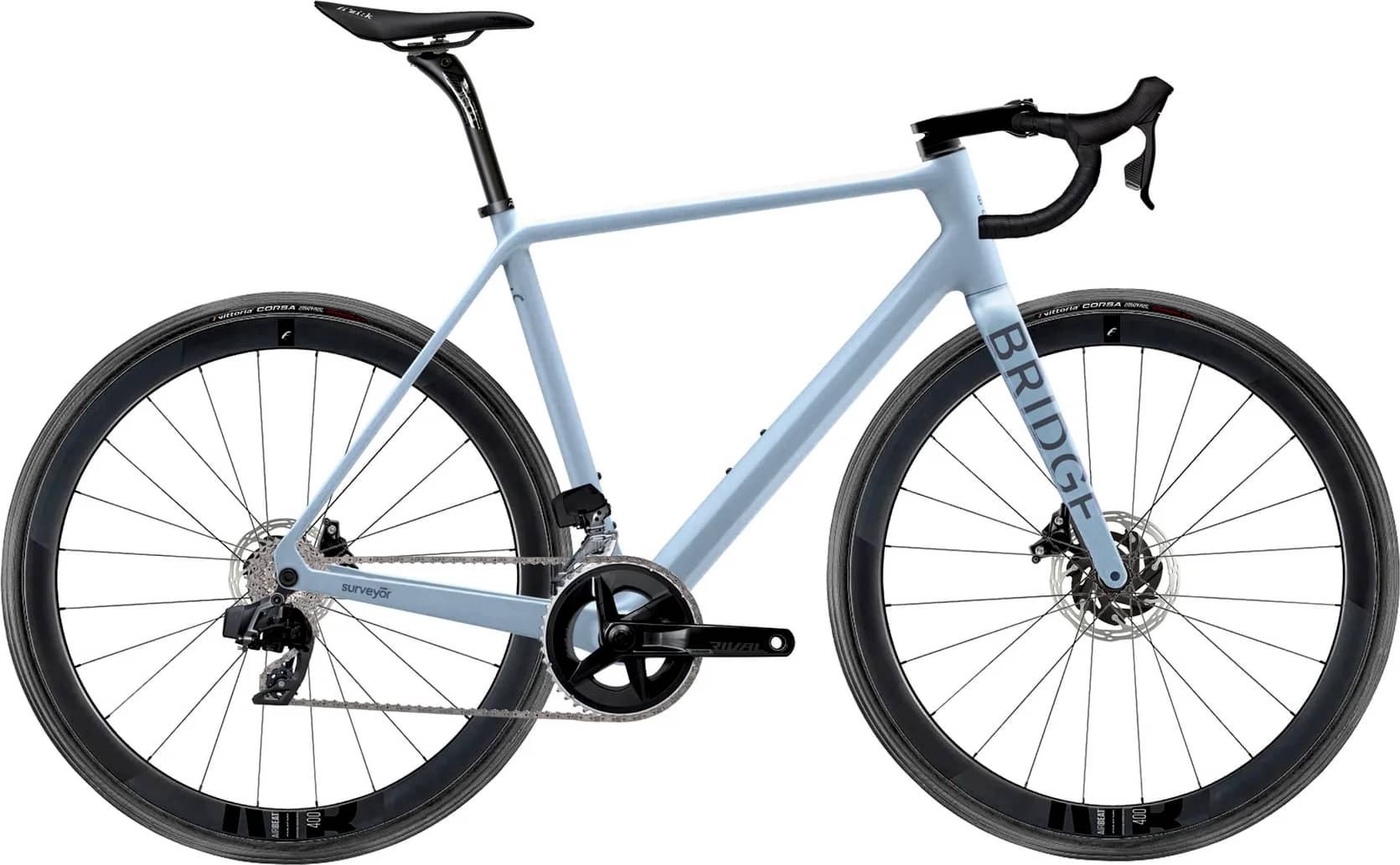

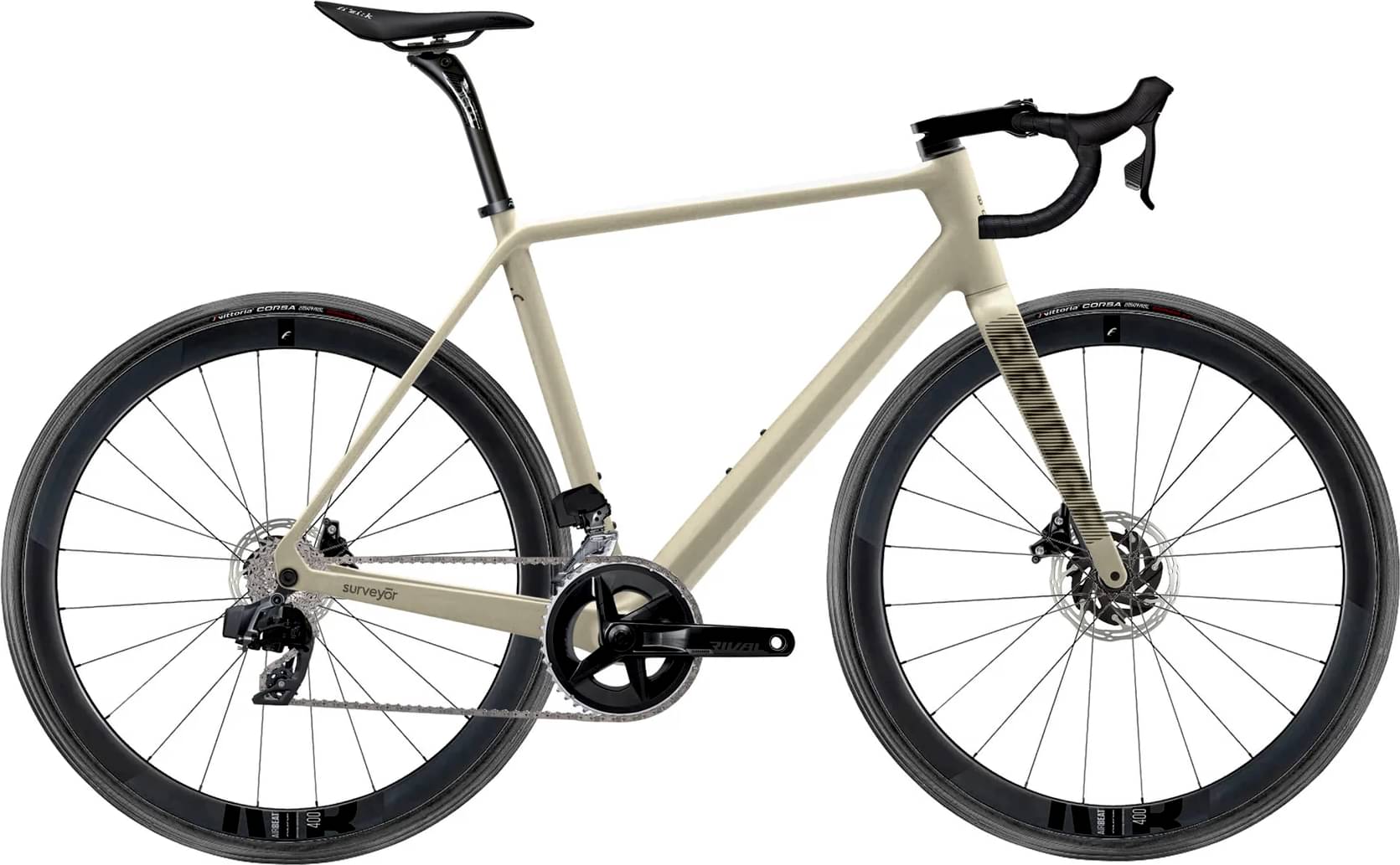

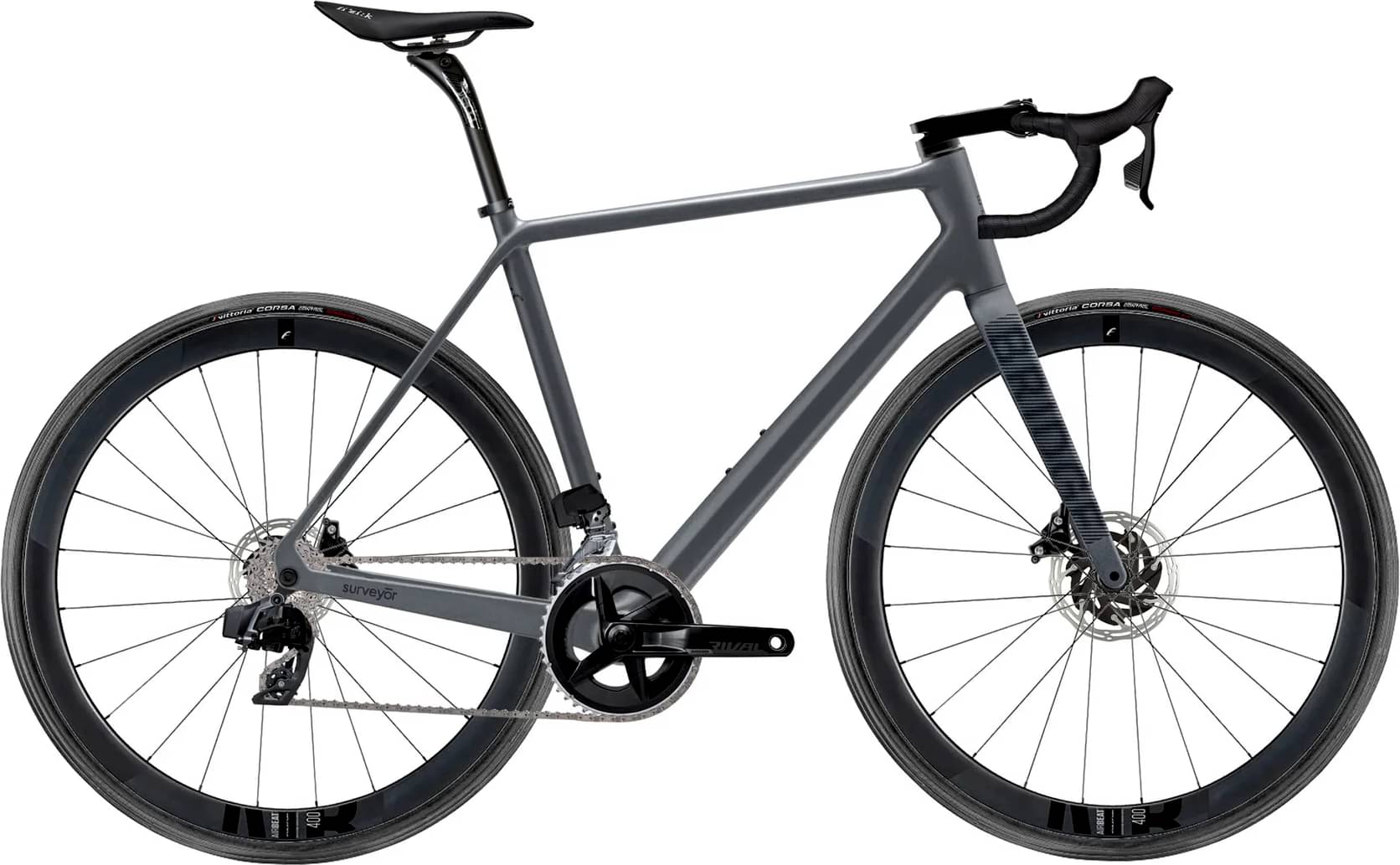

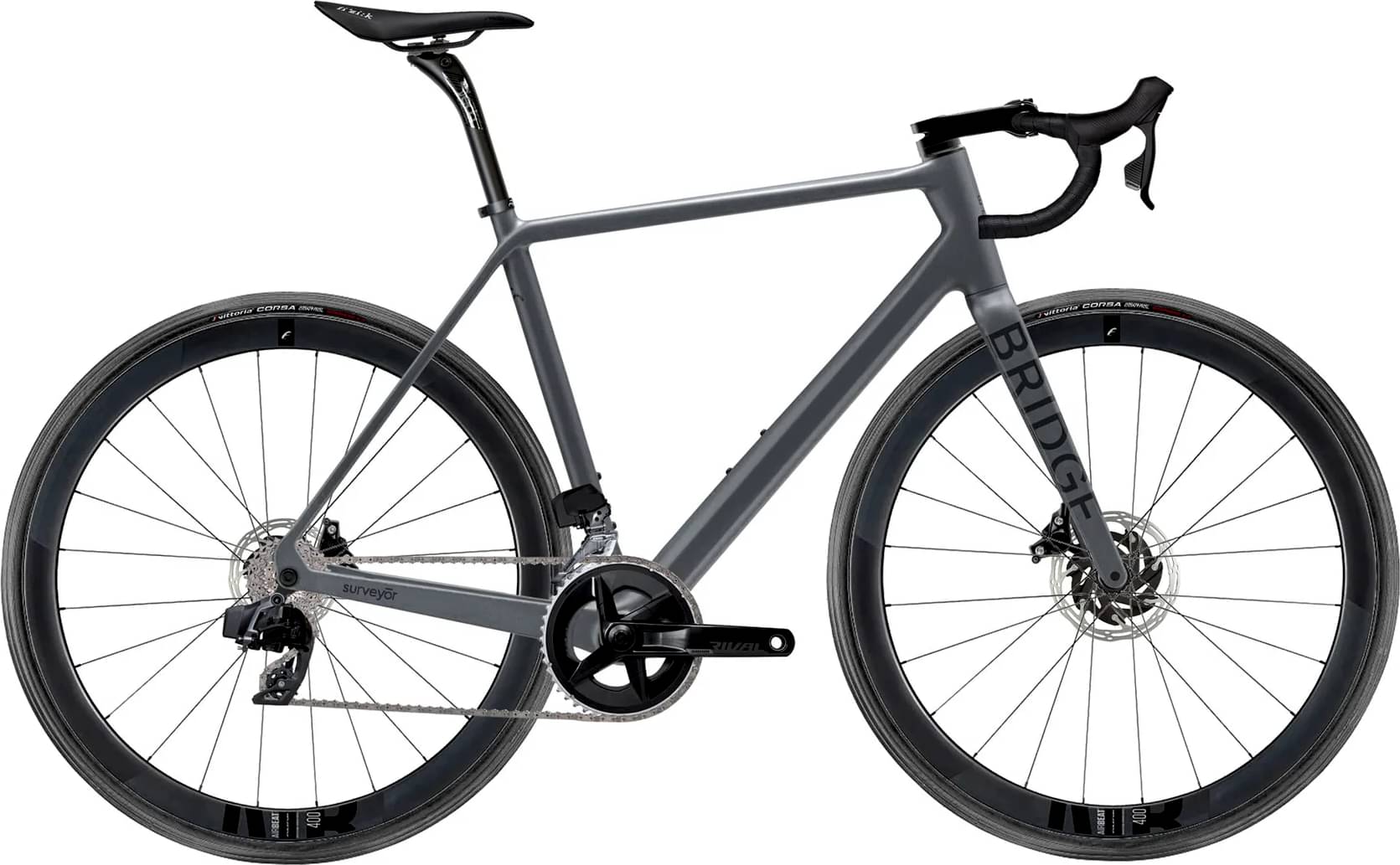

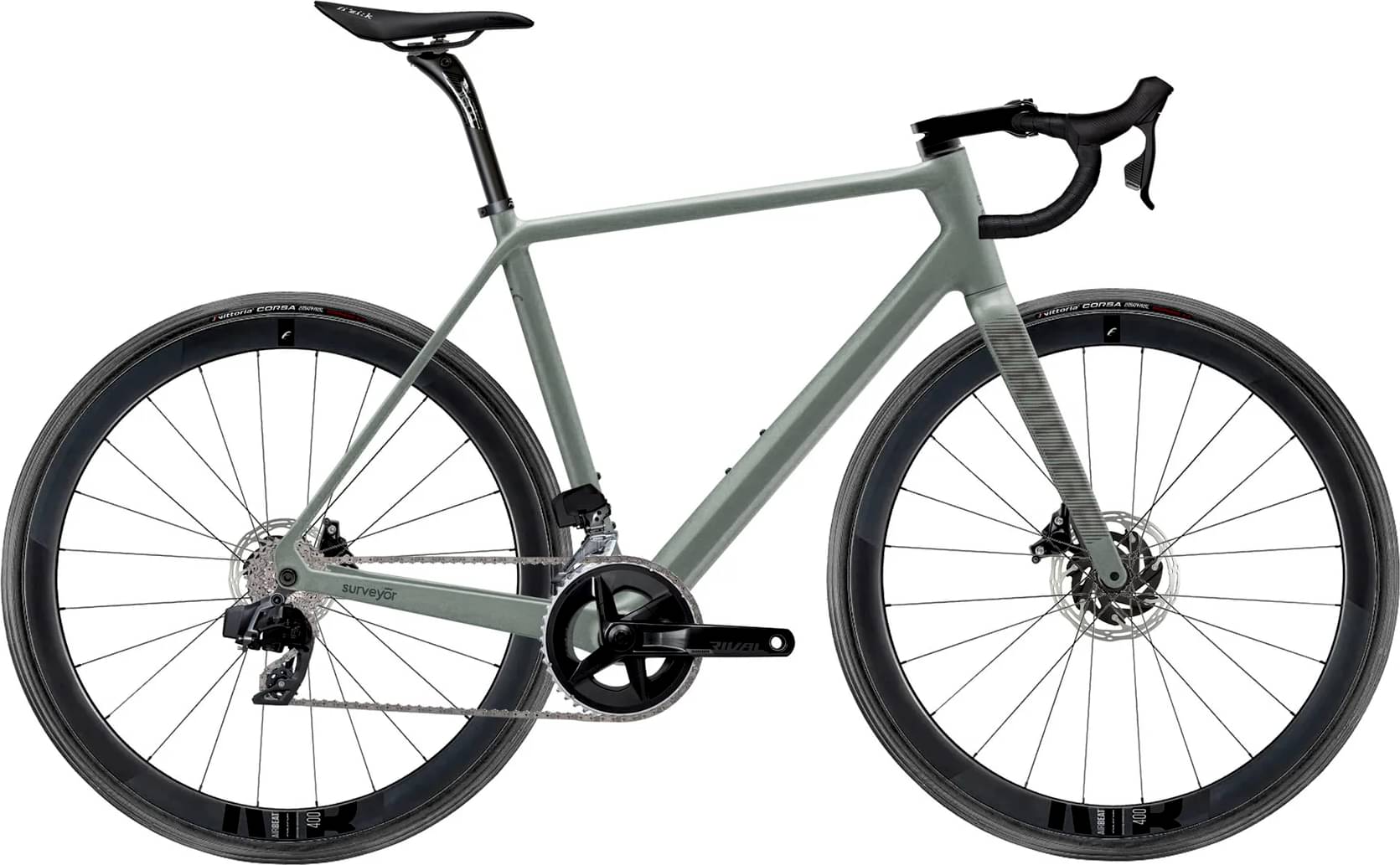

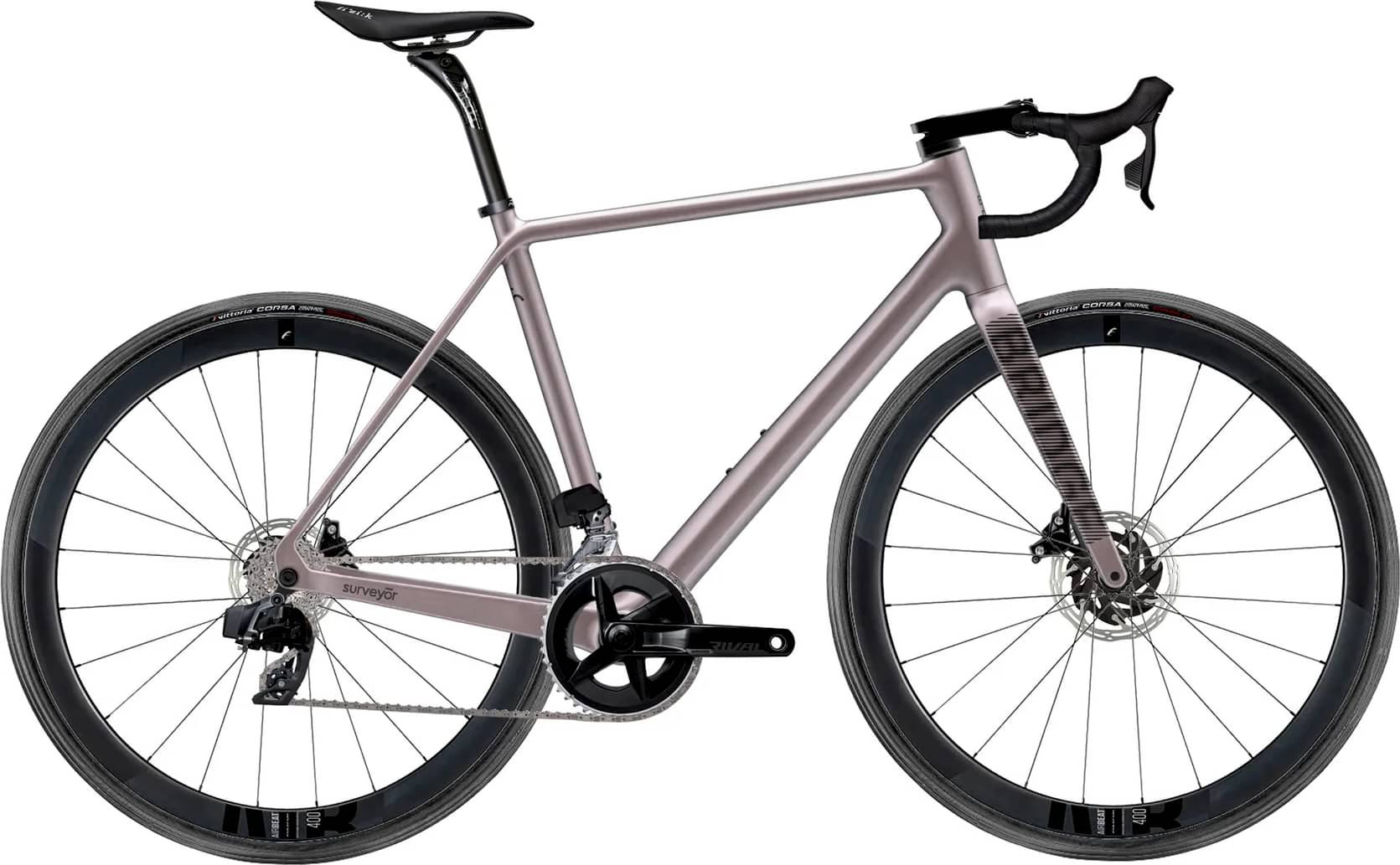

bridgebikeworks Bridge Bikeworks Surveyor – Rival AXS 2023
2023 Road
Estimate price |
6,076$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Rival AXS
Cassette
SRAM Rival
Bottom Bracket
White Industries T47/86
Wheels
Rims
Fulcrum Airbeat 400 Carbon
Tires
Vittoria Corsa N.EXT
Brakes
Brakes
Rim
Cockpit
Stem
Deda Superbox
Handlebar
Deda Superzero Alloy
Seat
Saddle
Fizik Argo R5
Seatpost
Deda Superzero 25
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.42 mm | 1.46 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 585.7 mm | 600.2 mm | 598.7 mm | 611.9 mm | 625.12 mm |
| Rake | 53.1 mm | 53.1 mm | 45.9 mm | 45.9 mm | 45.9 mm |
| Trail | 65.5 mm | 63.9 mm | 63.3 mm | 63.3 mm | 60 mm |
| Stack | 501.4 mm | 530.4 mm | 559.4 mm | 587.4 mm | 616.4 mm |
| Reach | 367.4 mm | 374.4 mm | 382.4 mm | 389.4 mm | 396.4 mm |
| Top Tube Length | 504.1 mm | 518.8 mm | 539.9 mm | 560.3 mm | 575.6 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 459.4 mm | 487 mm | 532.2 mm | 559.8 mm | 587.9 mm |
| Head Tube Angle | 71 ° | 71.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 90.1 mm | 119.7 mm | 145.3 mm | 173.6 mm | 203 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 980 mm | 995 mm | 994 mm | 1007 mm | 1021 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Surveyor – Rival AXS is a Bridgebikeworks Surveyor model. Bridge Bikeworks released 12 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bridge Bikeworks Surveyor – Rival AXS Gravel 2023 is the cheapest bike model and costs 6146$. Bridge Bikeworks Surveyor – Red AXS Gravel 2023 is the most expensive one and costs 10846$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Bridge Bikeworks released this model in 2023, its price was 6146$. Comparing the average cost of an Endurance bike to this one, you will see that Surveyor – Rival AXS price is 161.98% higher.
Overview of components
Fork material
Surveyor – Rival AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Surveyor – Rival AXS model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
