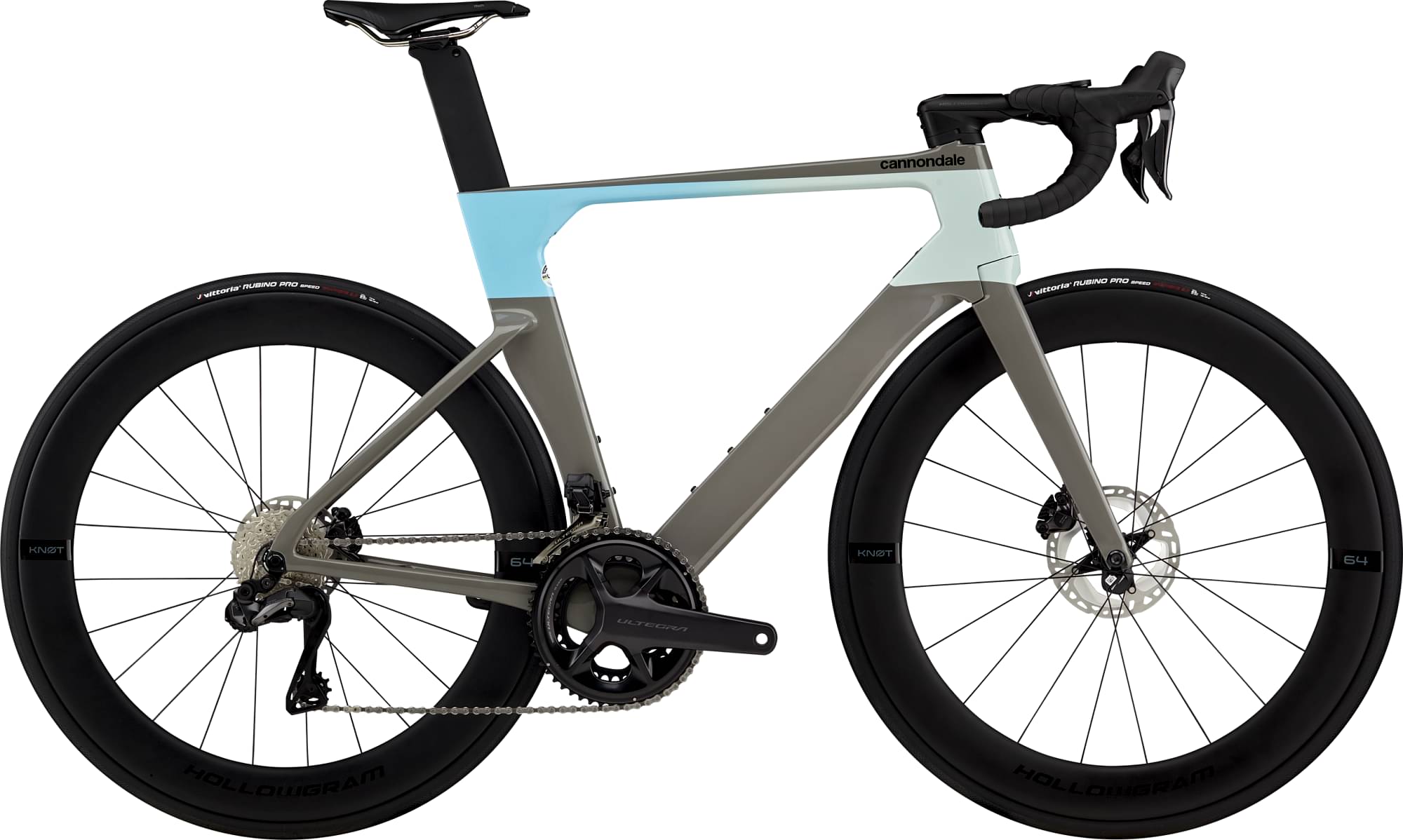

Cannondale SystemSix Hi-MOD Ultegra Di2 2023
2023 Road
Estimate price |
11,375$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 188cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SystemSix Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle
Suspension Fork
SystemSix Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2 R8150
Shift Levers
Shimano Ultegra Di2 R8170, 2x12
Cassette
Shimano Ultegra R8100, 11-30, 12-speed
Crank
Shimano Ultegra Di2 R8100, 52/36
Bottom Bracket
FSA PF30A to 24mm Reducer
Chain
Shimano Ultegra, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 350 internals
Rear Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 350 internals
Rims
HollowGram 64 KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm inner width, tubeless ready
Spokes
HollowGram, 2.0/1.8/2.0, straight-pull
Tires
Vittoria Rubino Pro Speed, 700x25c
Brakes
Brakes
Shimano Ultegra Di2 R8170 hydraulic disc, 160/140mm MT800 rotors
Brake Levers
Shimano Ultegra Di2 R8170 hydraulic disc
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -17°
Handlebar
HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Fizik Tempo Argo R5, 150mm width, S-Alloy rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm |
| Front Center | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm |
| Rake | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm |
| Stack | 519 mm | 539 mm | 559 mm | 579 mm | 599 mm |
| Reach | 380 mm | 385 mm | 391 mm | 397 mm | 402 mm |
| Top Tube Length | 528 mm | 543 mm | 559 mm | 575 mm | 591 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm |
| Head Tube Angle | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° |
| Head Tube Length | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Wheelbase | 988 mm | 974 mm | 986 mm | 999 mm | 1011 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 722 mm | 761 mm | 797 mm | 820 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 175 cm | 180 cm | 188 cm | 193 cm | 198 cm |
Model Overview
SystemSix Hi-MOD Ultegra Di2 is part of the Cannondale Systemsix model. There are 33 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Cannondale SystemSix Carbon Ultegra 2023 is the most affordable bike of this model and has a price of 5400$. On the other hand, Cannondale SystemSix Hi-MOD Dura-Ace Di2 2023, is the most expensive and costs 13050$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Cannondale released this model in 2023, its price was 10339$. Comparing the average cost of an Aero bike to this one, you will see that SystemSix Hi-MOD Ultegra Di2 price is 145.52% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
SystemSix Hi-MOD Ultegra Di2 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the SystemSix Hi-MOD Ultegra Di2 model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale SystemSix Hi-MOD Ultegra Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Cannondale SystemSix Hi-MOD Ultegra Di2 bike has 5 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
