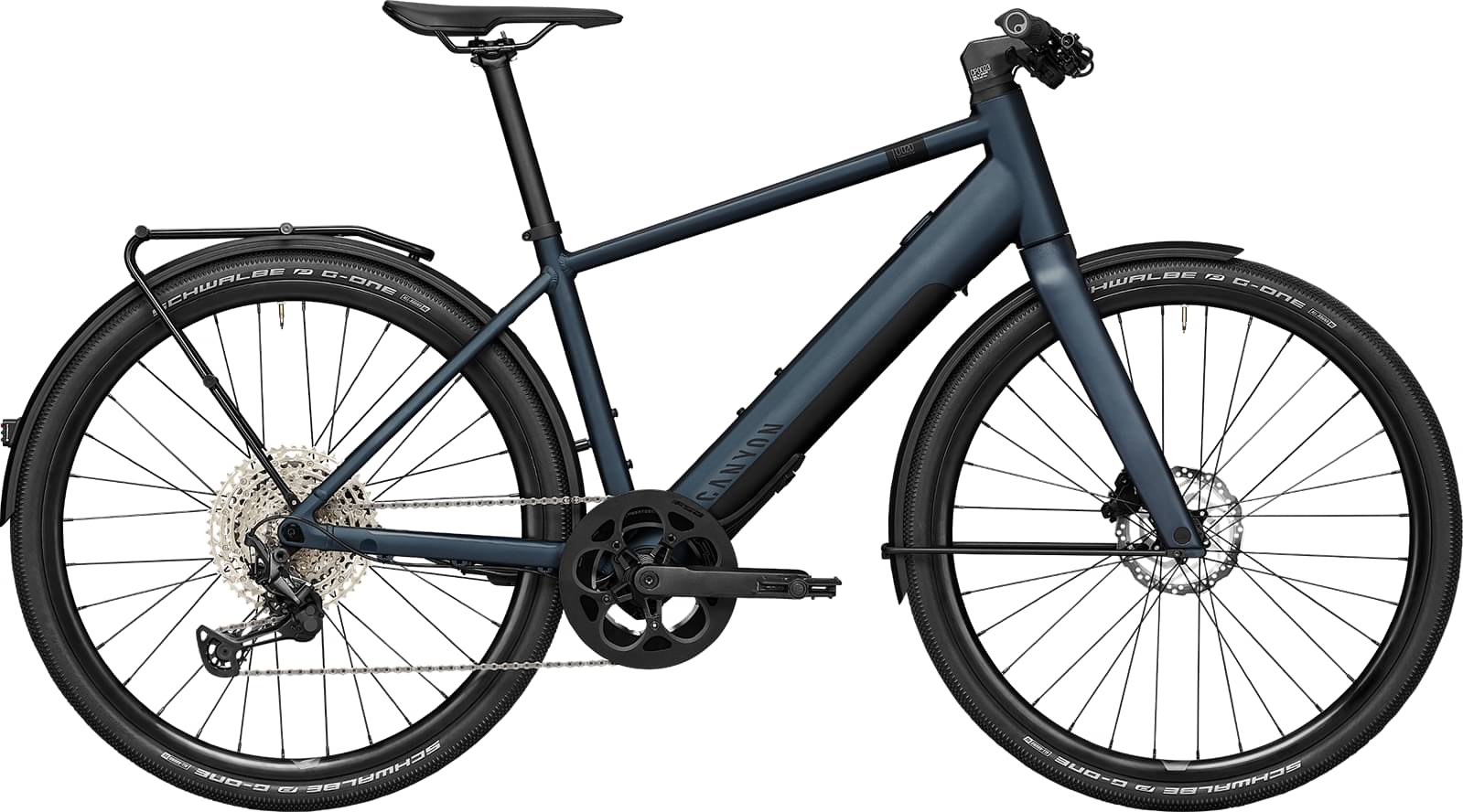

Canyon Commuter:ON 7 2022
2022 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua 350W 58Nm mid-drive -
Battery Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
167cm - 179cm
LG
177cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 CF Disc
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore M6100 12s, Right shift lever. Shifts up to 3 gears at a time.
Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
Samox EC38 48T, E-bike specific crank. Constructed from forged 6061 aluminium.
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor Mount: Center Lock | Alexrims GX26P | Shimano MT410 SH12, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround 40mm, Width: 1.5"
Brakes
Brakes
Shimano MT200, Hydraulic disc brakes. With ergonomic 3-finger levers. | Shimano MT200 / UR300?, Hydraulic disc brakes. With ergonomic 3-finger levers.
Disk Rotors
Shimano RT10, Rotor diameter: 160 mm. | Shimano EM300 Center Lock
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Canyon Sport Saddle EP1249, Canyon Sport Saddle
Seatpost
Iridium, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Fazua RIDE 50 STREET, Smooth drivepack with new housing, lighter design & more torque., Max power: 350 W, Torque: 58 Nm, Weight: 1.8 kg
Battery
Fazua Evation X, Compact, lightweight battery., Capacity: 252 Wh, Weight: 1.4 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.381 mm | 1.373 mm | 1.383 mm | 1.378 mm |
| Front Center | 614 mm | 636 mm | 668 mm | 694 mm |
| Rake | 41 mm | 41 mm | 41 mm | 43 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm |
| Stack | 555 mm | 574 mm | 607 mm | 642 mm |
| Reach | 402 mm | 418 mm | 439 mm | 466 mm |
| Top Tube Length | 567 mm | 588 mm | 619 mm | 656 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 155 mm | 175 mm | 210 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 433 mm |
| Wheelbase | 1032 mm | 1054 mm | 1086 mm | 1117 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 73 mm |
| Standover Height | 715 mm | 748 mm | 780 mm | 817 mm |
| Wheels | 650 | 650 | 650 | 700 |
| Rider Max Height | 169 cm | 179 cm | 189 cm | cm |
Model Overview
Commuter:ON 7 completes the Canyon E Commuteron model. Canyon launched 12 e-bikes of this model so far. Take a sneak peek at all Canyon E Commuteron e-bikes models from 2022, by clicking here.
Model range prices
Canyon Commuter:ON 7 WMN 2022 is the most affordable e-bike of this model and has a price of 3503$. On the other hand, Canyon Commuter:ON 8 LTD mid-step 2022, is the most expensive and costs 4034$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2022, its price was 3503$. Comparing this to the average Commuter e-bike price, we see that the price is 36.36% more expensive.
Commuter:ON 7 components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Commuter:ON 7 are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Commuter:ON 7 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
