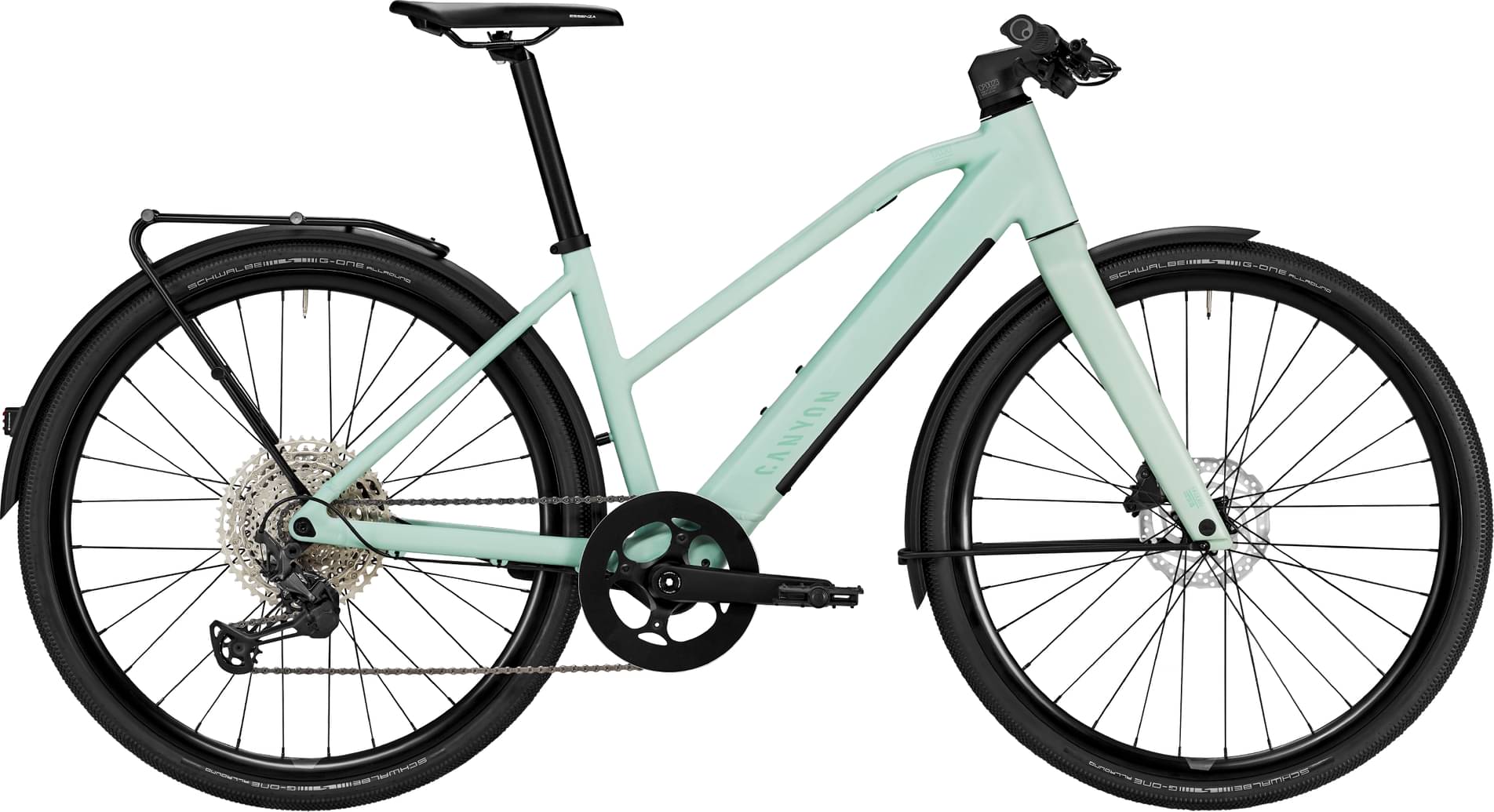

Canyon Commuter:ON 7 mid-step 2023
2023 E-bike
Estimate price |
3,784$
Weight | 18.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Suspension Rigid -
Motor Fazua mid-drive -
Battery FAZUA ENERGY 430 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Axle dimension: 12x142 mm, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 CF Disc, Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm, Weight: 979 g | Alexrims GX26P | Shimano MT410 SH12, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 26 mm, Inner width: 23 mm
Tires
Schwalbe G-One Allround 40mm, Width: 1.5", Weight: 400 g | Schwalbe G-One Allround Super Ground 27.5" & 28" Gravel Tyres
Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT
Battery
FAZUA ENERGY 430
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.46 mm | 1.48 mm |
| Front Center | 617 mm | 637 mm | 656 mm |
| Rake | 73 mm | 71 mm | 62 mm |
| Trail | 22 mm | 24 mm | 33 mm |
| Stack | 535 mm | 580 mm | 613 mm |
| Reach | 387 mm | 396 mm | 414 mm |
| Top Tube Length | 548 mm | 570 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 409 mm | 456 mm | 504 mm |
| Head Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 148 mm | 193 mm | 224 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1027 mm | 1047 mm | 1066 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 657 mm | 678 mm | 736 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
About this model
Commuter:ON 7 mid-step is a Canyon E Commuteron model. Canyon released 12 e-bikes variations of this model so far. You can easily view all of the Canyon E Commuteron e-bikes models from 2023, here.
Model range prices
Canyon Commuter:ON 7 2023 is the cheapest e-bike model and costs 3503$. Canyon Commuter:ON 8 LTD 2023 is the most expensive one and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Commuter:ON 7 mid-step price was 3503$. Doing a quick comparison, we notice that Commuter:ON 7 mid-step price is 36.36% more expensive than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 18.1 kg (39.9 lbs), the Commuter:ON 7 mid-step model is much lighter than average. In other words, this model is 39.23% lighter than the average Commuter e-bike.
Commuter:ON 7 mid-step components
Fork material
Commuter:ON 7 mid-step has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Canyon Commuter:ON 7 mid-step 2023, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Commuter:ON 7 mid-step has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
