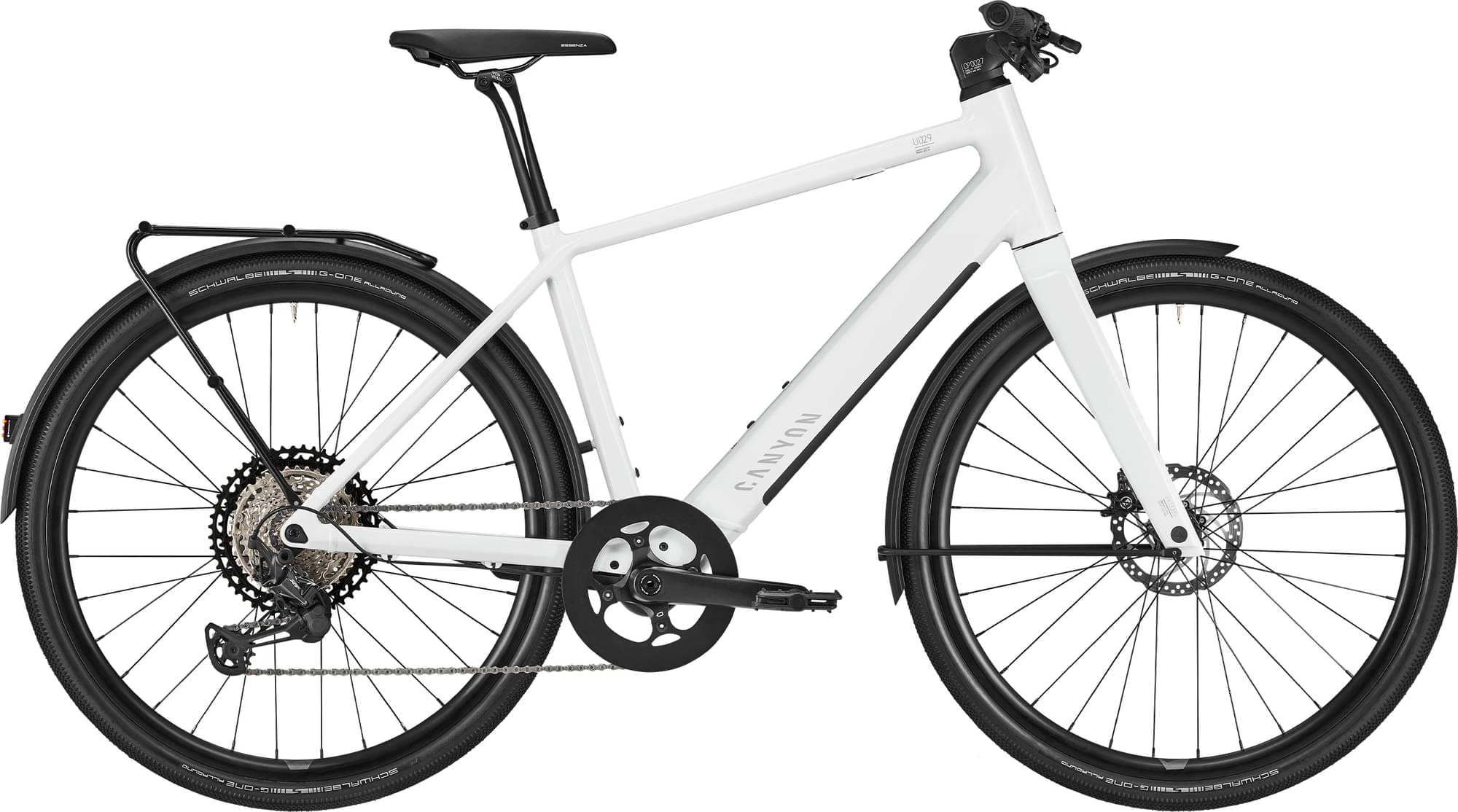

Canyon Commuter:ON 8 LTD 2022
2022 E-bike
Estimate price |
4,357$
Weight | 17.54 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset XT -
Suspension Rigid -
Motor Fazua 450W mid-drive -
Battery FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter:ON, Material: Aluminium (AL)
Suspension Fork
Canyon FK0085 Disc, Material: Carbon
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano XT, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.
Crank
Samox EC37F, Number of chainrings: 1
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims GX26P | Shimano MT400, Rotor Mount: Center Lock | Alexrims GX26P | Shimano MT410 SH12, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround 40mm, Width: 1.5"
Brakes
Brakes
hydraulicDisc
Disk Rotors
Magura MDR-C
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza, Gender: Male
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Motor & Battery
Motor
FAZUA RIDE 60 DRIVE UNIT, Lightweight, advanced electric motor., Power: 450 W, Weight (without battery): 1.96 kg, Motor assist up to 25 kph
Battery
FAZUA ENERGY 430, Compact, lightweight battery., Capacity: 430 Wh, Weight: 2.3 kg, Integrated into down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm |
| Front Center | 637 mm | 656 mm | 690 mm |
| Rake | 41 mm | 42 mm | 43 mm |
| Trail | 73 mm | 66 mm | 71 mm |
| Stack | 593 mm | 627 mm | 660 mm |
| Reach | 409 mm | 426 mm | 451 mm |
| Top Tube Length | 583 mm | 611 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 456 mm | 504 mm | 553 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 193 mm | 226 mm | 228 mm |
| Chainstay Length | 430 mm | 430 mm | 438 mm |
| Wheelbase | 1060 mm | 1079 mm | 1118 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm |
| Standover Height | 762 mm | 790 mm | 838 mm |
| Wheels | 650 | 650 | 700 |
| Rider Max Height | 181 cm | 191 cm | cm |
About this model
Commuter:ON 8 LTD is part of the Canyon E Commuteron model. Canyon released 12 e-bikes variations of this model so far. You can easily view all of the Canyon E Commuteron e-bikes models from 2022, here.
Model range prices
The most economical model, the Canyon Commuter:ON 7 WMN 2022 has a starting price of 3503$. Canyon Commuter:ON 8 LTD mid-step 2022 on the other hand is the most expensive at 4034$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Canyon released this model in 2022, its price was 4034$. In conclusion, this e-bike price is 57.03% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 17.54 kg (38.67 lbs), the Commuter:ON 8 LTD model is much lighter than average. In conclusion, the average Commuter e-bike weighs 43.67% more than Commuter:ON 8 LTD.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Canyon Commuter:ON 8 LTD 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Commuter:ON 8 LTD comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
