Canyon Neuron:ON 9 2023
2023 E-bike
Estimate price |
6,307$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike Select+
-
Groupset GX Eagle AXS, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity. Chargeable either in the bike, or when removed. Adapter for external charging not included. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
Rockshox Pike Select +, Air-sprung fork with 130 mm travel. Improved DebonAir air spring. Charger 2.1 damper. Low-friction SKF wiper seals and Maxima Plush damper oil for minimum friction and performance that lasts. Axle dimensions: 15x110 mm., Travel: 130 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"

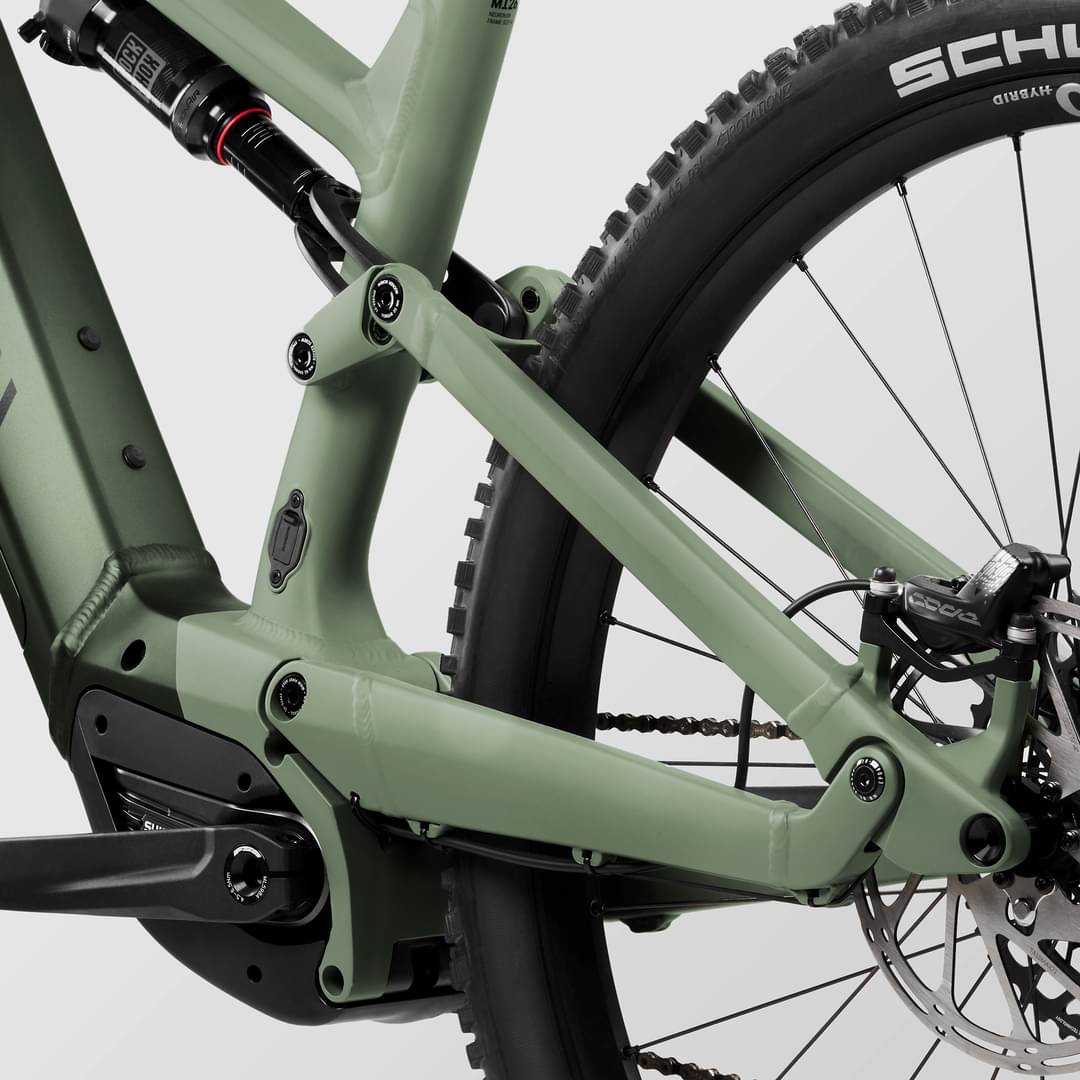

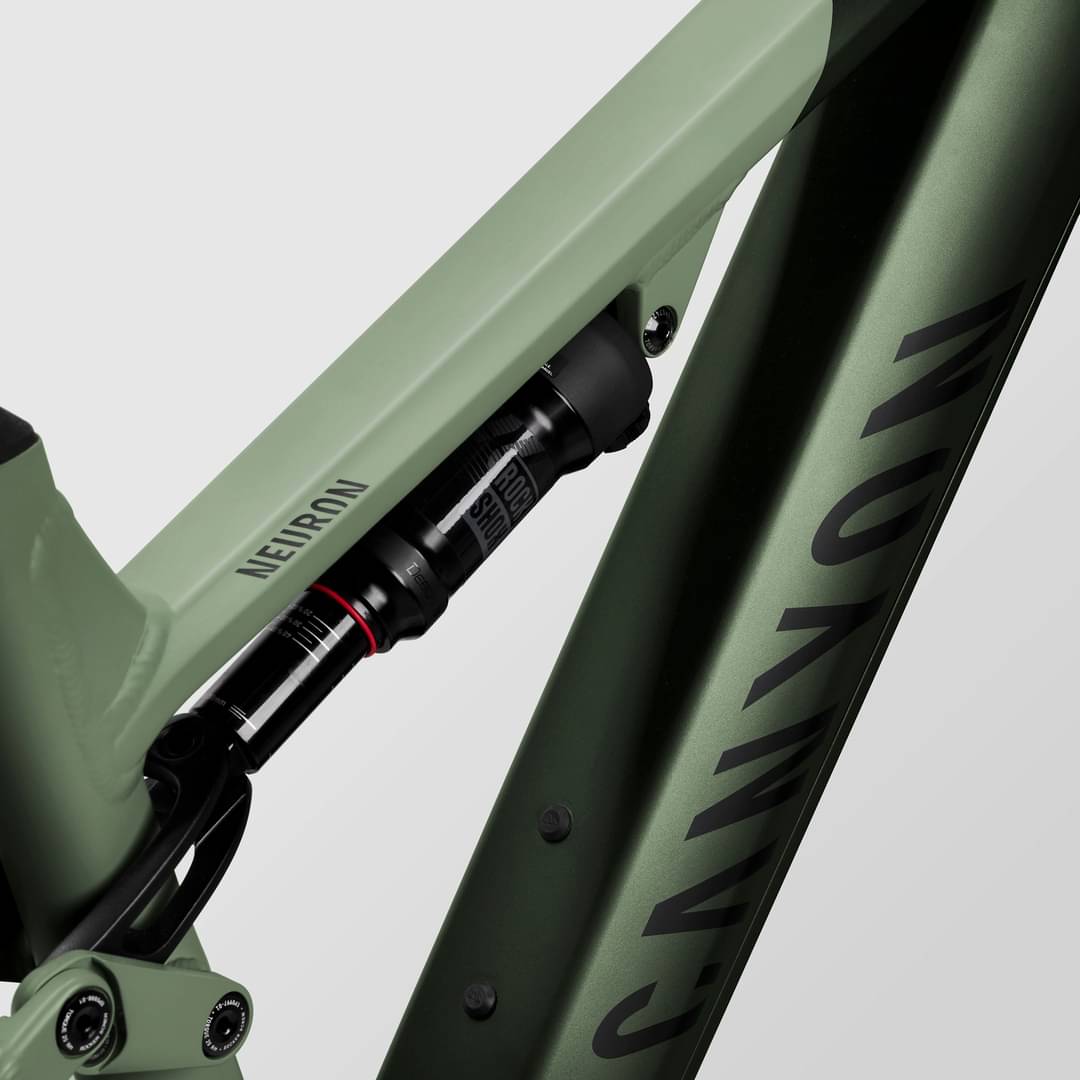

Rear Shock
RockShox Deluxe Select R, Provides 130 mm of rear travel. With Maxima Plus damper oil for minimum friction and performance that lasts. External rebound adjustment.
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12s, Next-gen wireless 1x12 groupset. App-configurable.
Shift Levers
SRAM GX Eagle AXS Controller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
Cassette
SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
Shimano Steps E-MTB, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Chain
SRAM GX Eagle 12s, Strong and sturdy 12 speed chain with SRAM's easy to use powerlink. | SRAM GX EAGLE 12-speed Chain 126 Links
Chain Guide
Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain.
Wheels
Rims
DT Swiss H 1900 Spline Hybrid 29, Rotor mount: IS 6-bolt, Wheelsize: 29" | DT SWISS H 1900 Spline Hybrid 29, Rotor mount: IS 6-bolt, Wheelsize: 29"
Tires
Schwalbe Nobby Nic SuperTrail Speedgrip, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version | Schwalbe Hans Dampf SuperTrail, 2.6, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version
Brakes
Brakes
SRAM Matchmaker Clamp, SRAM's matchmaker clamp keeps things clean for minimal distractions. | SRAM Code R | SRAM Code R
Cockpit
Stem
FSA Comet 35, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm
Grips
Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp.
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery

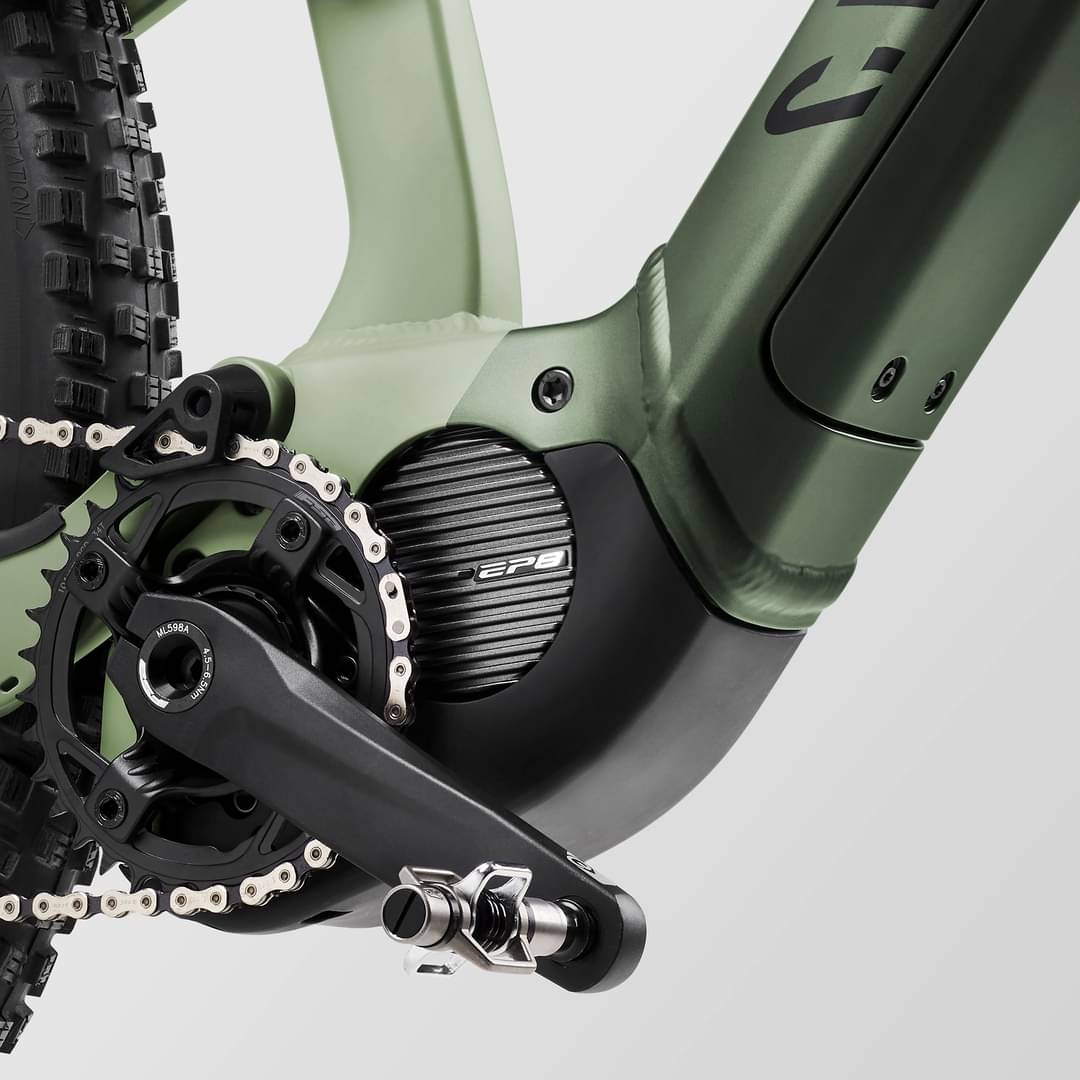

Motor
Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost.
Battery
Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity. Chargeable either in the bike, or when removed. Adapter for external charging not included.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 335 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 731 mm | 737 mm | 761 mm | 785 mm |
| Rake | 46 mm | 52 mm | 52 mm | 52 mm |
| Trail | 104 mm | 99 mm | 99 mm | 99 mm |
| Stack | 610 mm | 628 mm | 637 mm | 647 mm |
| Reach | 428 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 591 mm | 611 mm | 634 mm | 657 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 438 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1168 mm | 1178 mm | 1202 mm | 1226 mm |
| Bottom Bracket Drop | 20 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 775 mm | 801 mm | 803 mm | 811 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Neuron:ON 9 is a Canyon E Neuronon model. 27 e-bikes variations carry this model name so far. You can easily view all of the Canyon E Neuronon e-bikes models from 2023, here.
Model range prices
The most economical model, the Canyon Neuron:ON 6 2023 has a starting price of 4034$. Canyon Neuron:ON CF 9 2023 on the other hand is the most expensive at 7431$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Neuron:ON 9 price was 5839$. Comparing this to the average Trail e-bike price, we see that the price is 73.52% higher.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Neuron:ON 9 has a weight of 24.5 kg (54.01 lbs). In conclusion, the average Trail e-bike weighs 3.38% less than Neuron:ON 9.
Neuron:ON 9 components
Fork
The Neuron:ON 9 comes factory-installed with the RockShox Pike Select+ fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select R, with a travel distance of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Neuron:ON 9 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Neuron:ON 9 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Neuron:ON 9 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
