Canyon Neuron:ON CF 7 2023
2023 E-bike
Estimate price |
5,734$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Neuron:ON CF, Sleek carbon e-MTB frame with a fixed, integrated battery combines an all-day riding position with trail-capable geometry. The Triple Phase Suspension delivers next level compliance and grip., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
RockShox Pike, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.34 kg

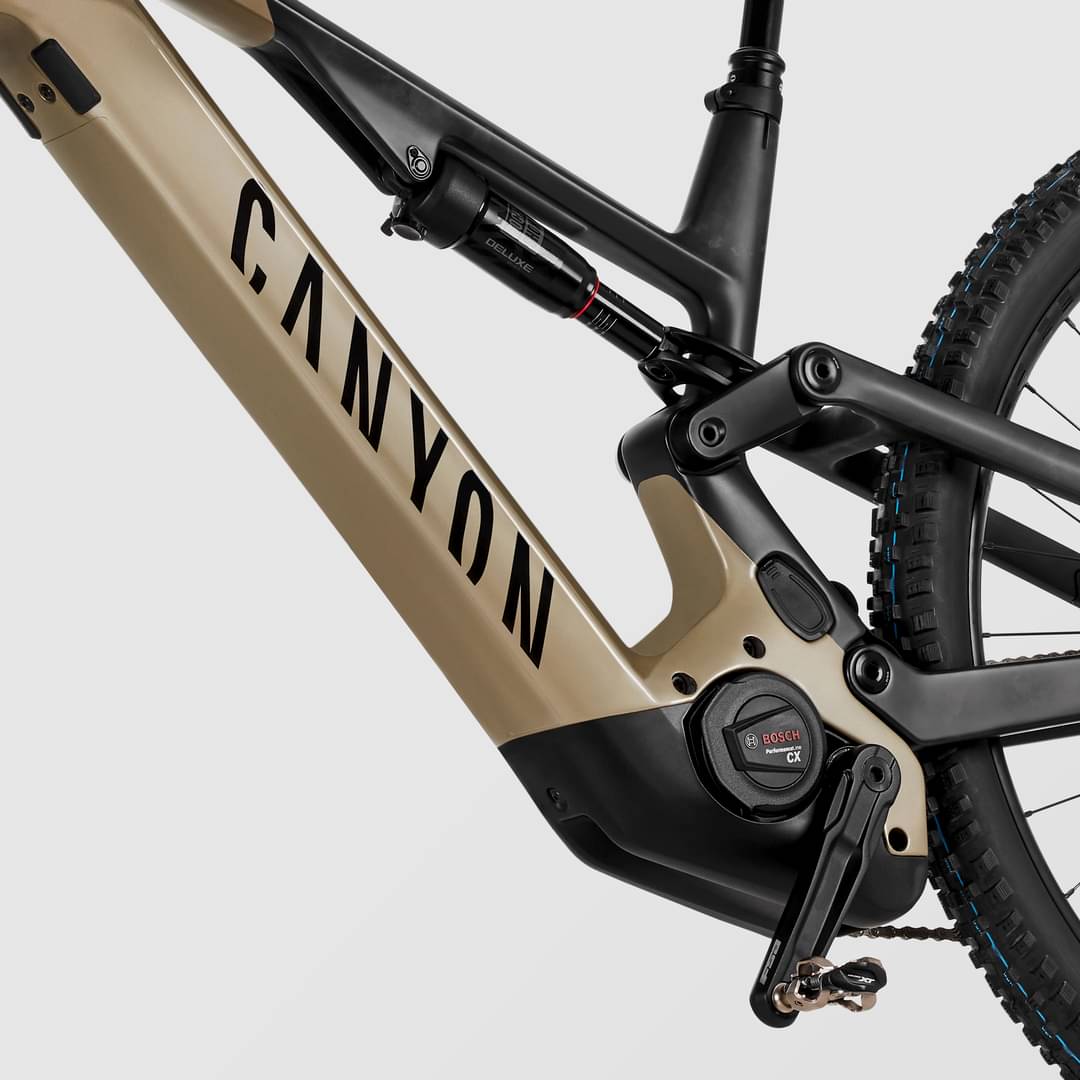

Rear Shock
RockShox Deluxe Select R
Drivetrain
Rear Derailleur
Shimano DEORE M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA 762 Forged Crank Bosch gen4
Bottom Bracket
Bosch, press-fit
Chain
Shimano CN-M6100 | Shimano CN-M6100 Deore 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
RODI TRYP30 EVO, Rotor mount: Center Lock, Weight: 1.09 kg | RODI TRYP30 EVO, Rotor mount: Center Lock, Weight: 1.19 kg
Tires
Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4" | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 29" x 2.4" MTB Tyre | Maxxis Minion DHR II EXO 3C MaxxGrip WT 29" x 2.4" MTB Tyre
Brakes
Brakes
Shimano Deore M6120
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery

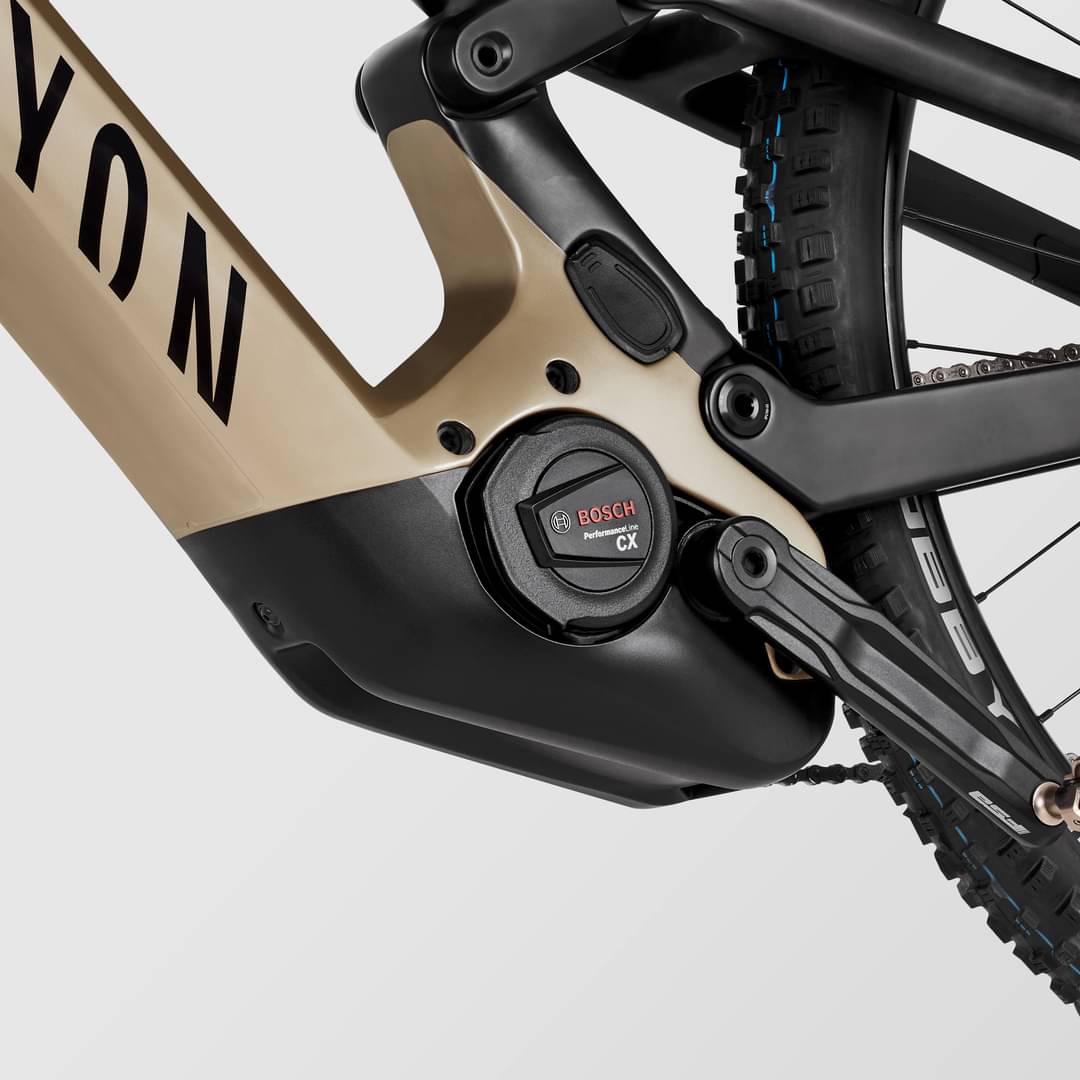

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 755 mm | 784 mm | 808 mm | 837 mm |
| Rake | 44 mm | 43 mm | 39 mm | 39 mm |
| Trail | 122 mm | 123 mm | 128 mm | 128 mm |
| Stack | 634 mm | 644 mm | 653 mm | 662 mm |
| Reach | 438 mm | 463 mm | 488 mm | 513 mm |
| Top Tube Length | 590 mm | 617 mm | 644 mm | 671 mm |
| Seat Tube Angle | 68.6 ° | 69.3 ° | 69.9 ° | 70.2 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1206 mm | 1235 mm | 1259 mm | 1288 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 776 mm | 782 mm | 788 mm | 793 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Neuron:ON CF 7 is part of the Canyon E Neuronon model. There are 27 e-bikes that carry this model name. Take a sneak peek at all Canyon E Neuronon e-bikes models from 2023, by clicking here.
Model range prices
Canyon Neuron:ON 6 2023 is the most economical model, with a starting price of 4034$. Canyon Neuron:ON CF 9 2023 on the other hand costs 7431$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 5308$. If we compare this with the average Trail e-bike cost we notice that the price is 57.74% higher.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Neuron:ON CF 7 has a weight of 22.9 kg (50.49 lbs). In short, the average Trail e-bike weight is 3.49% higher than this one.
Neuron:ON CF 7 components
Fork
Canyon Neuron:ON CF 7 2023 e-bike is equipped with the RockShox Pike fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Neuron:ON CF 7 has a rear shock with a travel of 140mm. The model RockShox Deluxe Select R is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Neuron:ON CF 7 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
