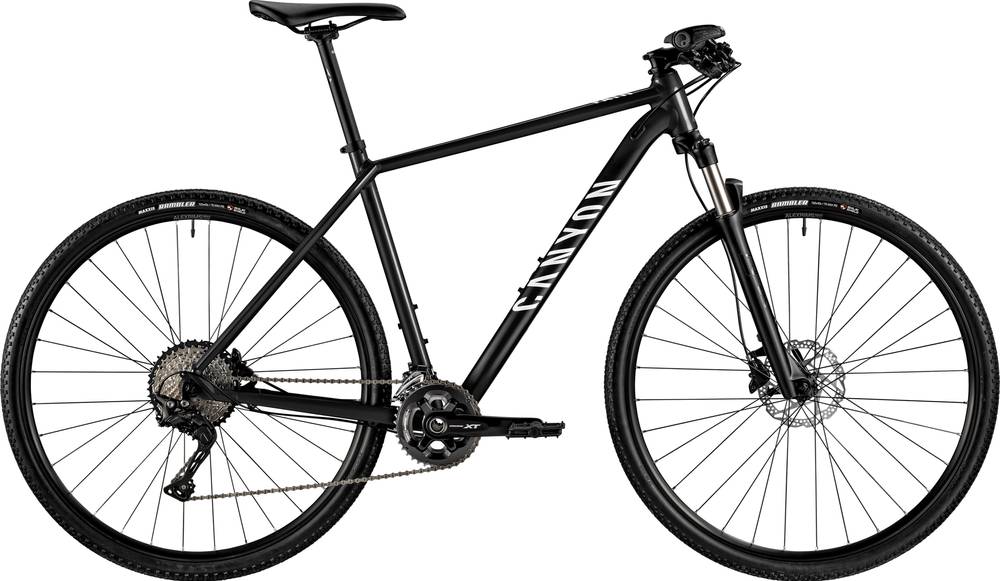

Canyon Pathlite 6.0 2020
2020 Urban
Estimate price |
1,099$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
178cm - 184cm
LG
183cm - 189cm
XL
190cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite AL, Material: Aluminium, Axle Dimension: 10 x 135 mm, Brake Mount: Post Mount, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour NRX-D Air
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 SGS
Front Derailleur
Shimano SLX M7025
Shift Levers
Shimano SLX M7000 2/3s | Shimano SLX M7000 11s
Cassette
Shimano SLX M7000 11-42 11s
Crank
Shimano Deore XT M8000 38/28 38/28
Bottom Bracket
Shimano BSA BB-MT800
Wheels
Rims
Alexrims MD23 | Shimano TX505, Rim Material: Aluminium, Rim Width: 23 mm, Hub Type: TX505 | Alexrims MD23 | Shimano TX505 SH10, Rim Material: Aluminium, Rim Width: 23 mm, Hub Type: TX505
Tires
MAXXIS Rambler 40mm
Brakes
Brakes
Shimano MT201
Disk Rotors
Shimano RT54
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GS2
Seat
Saddle
Iridium One Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.54 mm | 1.54 mm | 1.57 mm | 1.57 mm |
| Front Center | 633 mm | 638 mm | 647 mm | 664 mm | 674 mm | 700 |
| Rake | 46 mm | 47 mm | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 71 mm | 70 mm | 70 mm | 72 mm | 72 mm | 70 mm |
| Stack | 572 mm | 594 mm | 609 mm | 628 mm | 646 mm | 670 mm |
| Reach | 379 mm | 392 mm | 396 mm | 407 mm | 411 mm | 428 mm |
| Top Tube Length | 554 mm | 574 mm | 582 mm | 599 mm | 608 mm | 632 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1061 mm | 1063 mm | 1072 mm | 1089 mm | 1099 mm | 1125 mm |
| Bottom Bracket Drop | 44 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 168 cm | 178 cm | 184 cm | 189 cm | 196 cm | cm |
Model Overview
Pathlite 6.0 completes the Canyon Pathlite model. 41 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Pathlite AL 4.0 2020 has a starting price of 955$. Canyon Pathlite WMN AL SL 8.0 2020 on the other hand is the most expensive at 1804$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1099$. If we compare this with the average Fitness bike cost we notice that the price is 67.53% more expensive.
Fitness bikes average weight
If we make a quick analysis of the average weight of a Fitness bike, we get 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Pathlite 6.0 it’s weighing 12.6 kg (27.78 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.1% heavier than the average Fitness bike.
Pathlite 6.0 components
Fork
The SunTour NRX D is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Pathlite 6.0 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite 6.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
