Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: IS-Mount
Suspension Fork
RockShox Pike DJ, Travel: 100 mm, Technology: Solo Air, Axle Dimension: 15 x 100 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T 30
Bottom Bracket
SRAM BSA DUB
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon G5
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Max Height | 210 cm | cm |
Model Overview

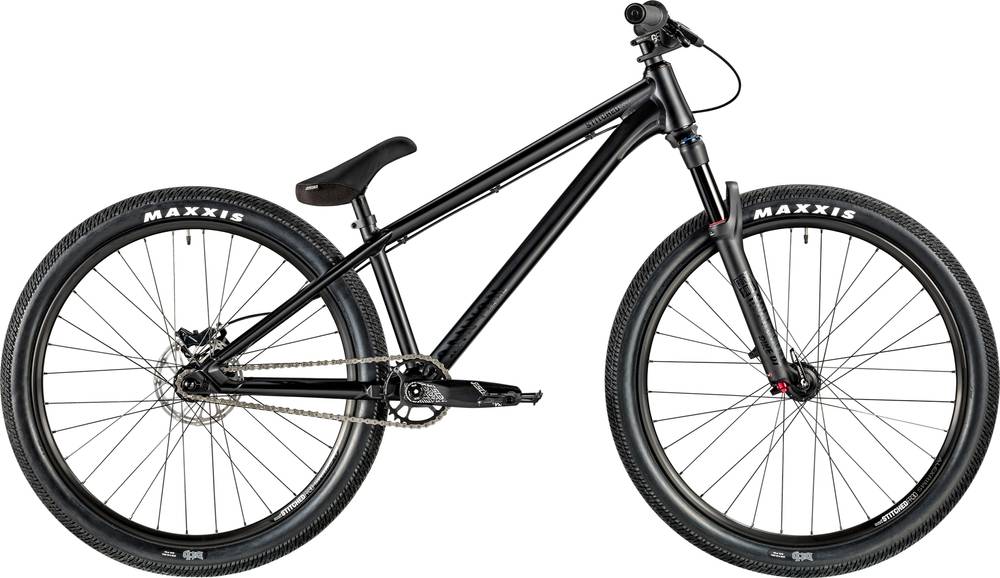

Stitched 360 Pro is part of the Canyon Stitched model. Canyon launched 26 bikes of this model so far. You can easily view all of the Canyon Stitched bikes models from 2019, here.
Model range prices
Canyon Stitched 360 2019 is the most economical model, with a starting price of 901$. Canyon Stitched 720 Pro 2019 on the other hand costs 1804$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Dirt Jump bikes average price
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 1326$. Doing a quick comparison, we notice that Stitched 360 Pro price is 53.65% higher than the average cost of a Dirt Jump bike.
Overview of components
Fork
The Stitched 360 Pro comes factory-installed with the RockShox Pike DJ fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Stitched 360 Pro model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Stitched 360 Pro is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
