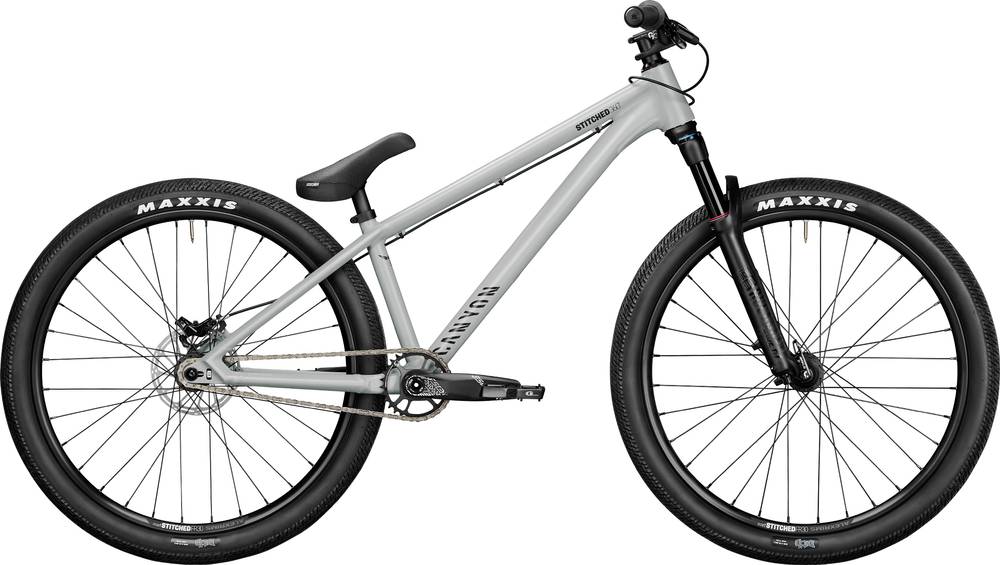

Canyon Stitched 360 Pro 2020
2020 Mountain
Estimate price |
1,605$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 170cm
LG
160cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched
Suspension Fork
RockShox Pike DJ, Travel: 100 mm, Technology: Solo Air, Axle Dimension: 15 x 100 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid G2, Disc Mount: 6-Hole
Cockpit
Stem
Canyon G5, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 656 mm | 673 mm |
| Rake | 42 mm | 42 mm |
| Trail | 90 mm | 90 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 378 mm | 378 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 140 cm | 160 cm |
| Rider Max Height | 170 cm | 200 cm |
About this model
Stitched 360 Pro completes the Canyon Stitched model. Canyon launched 26 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Stitched 360 2020 is the most affordable bike of this model and has a price of 1061$. On the other hand, Canyon Stitched 720 2020, is the most expensive and costs 1910$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Dirt Jump bikes
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, even though the average price of a Dirt Jump bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2020, its price was 1485$. Comparing this to the average Dirt Jump bike price, we see that the price is 72.07% more expensive.
Dirt Jump bikes average weight
On a deeper look, we notice that the average weight of a Dirt Jump bike is 12.37 kg (27.27 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Stitched 360 Pro it’s weighing 11.5 kg (25.35 lbs). At this weight, is a bit lighter than average. In conclusion, the average Dirt Jump bike weighs 7.57% more than Stitched 360 Pro.
Overview of components
Fork
Canyon Stitched 360 Pro 2020 bike is equipped with the RockShox Pike DJ fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Stitched 360 Pro 2020 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Stitched 360 Pro is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Stitched 360 Pro comes in 2 sizes, that range from 140 cm – 200 cm (4.59 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
