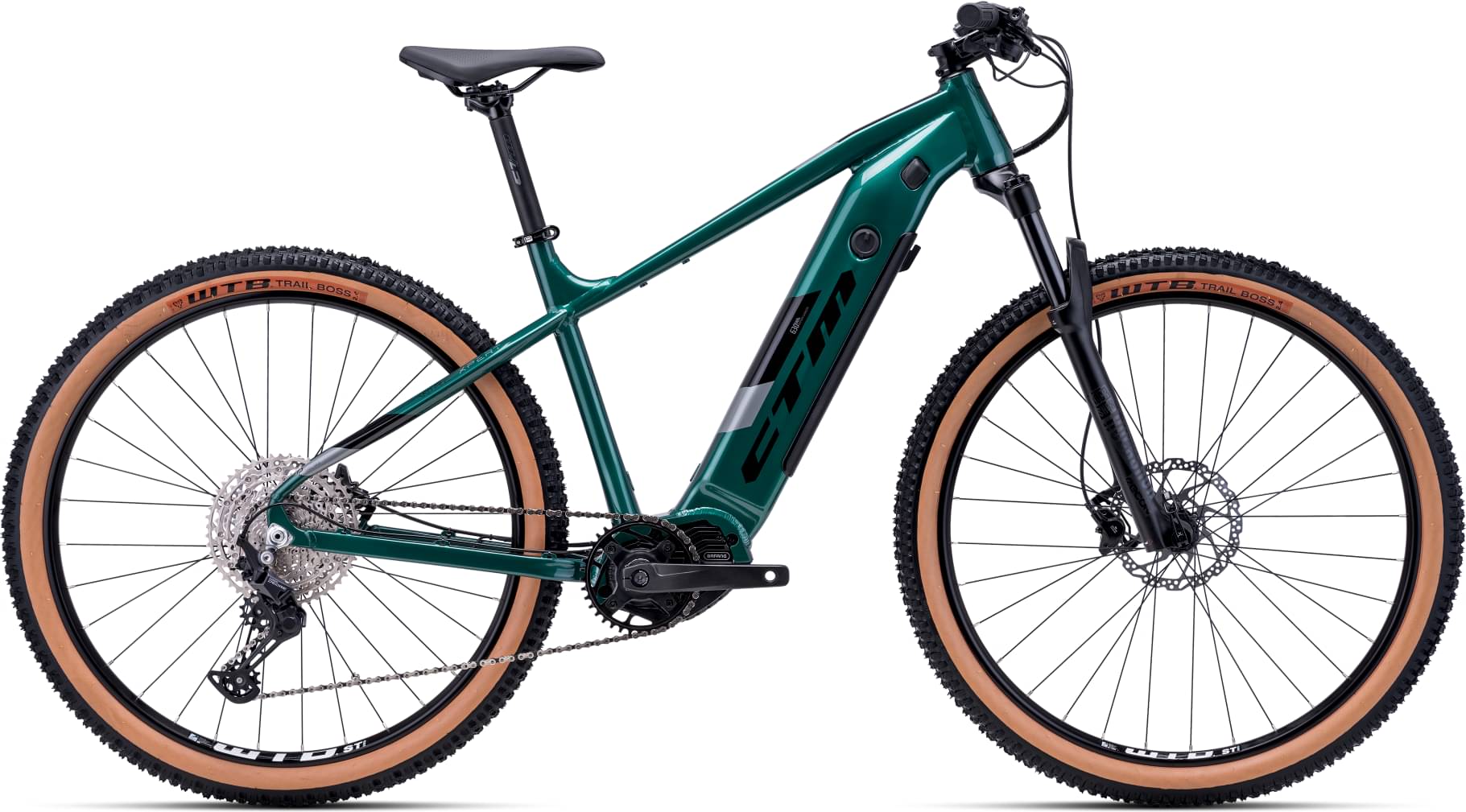

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

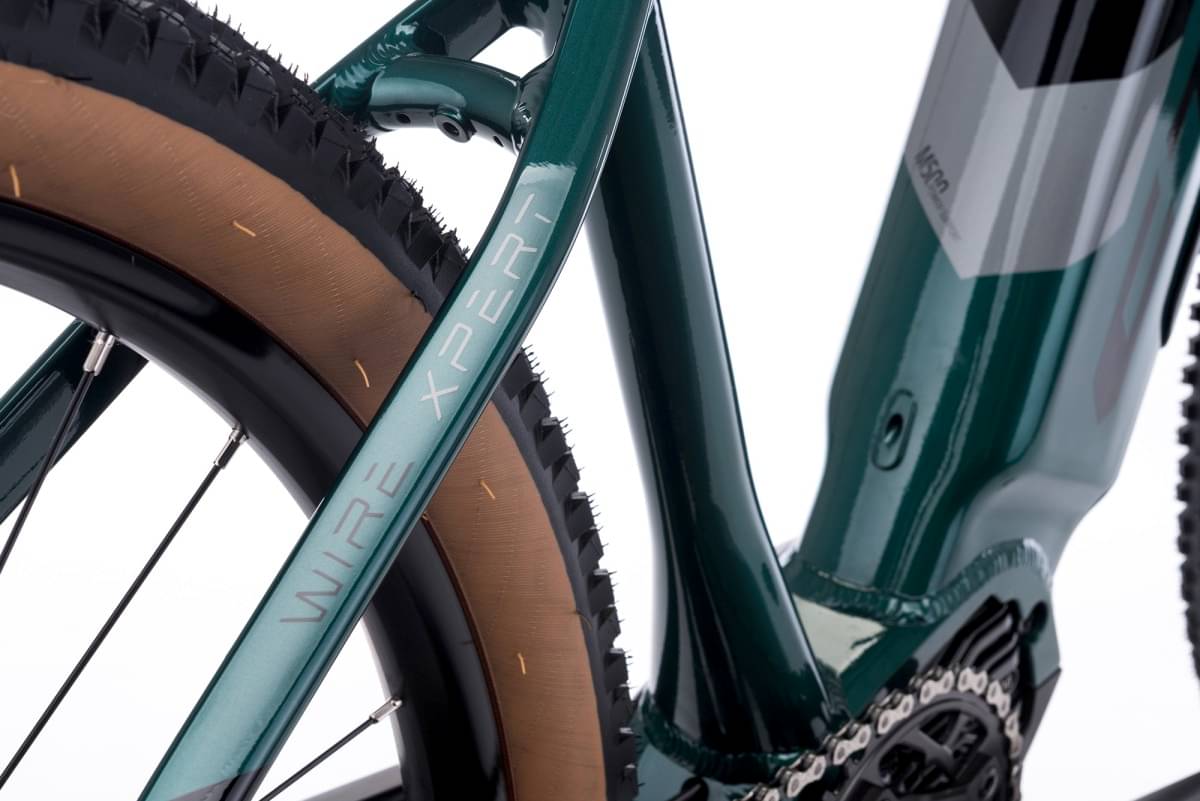

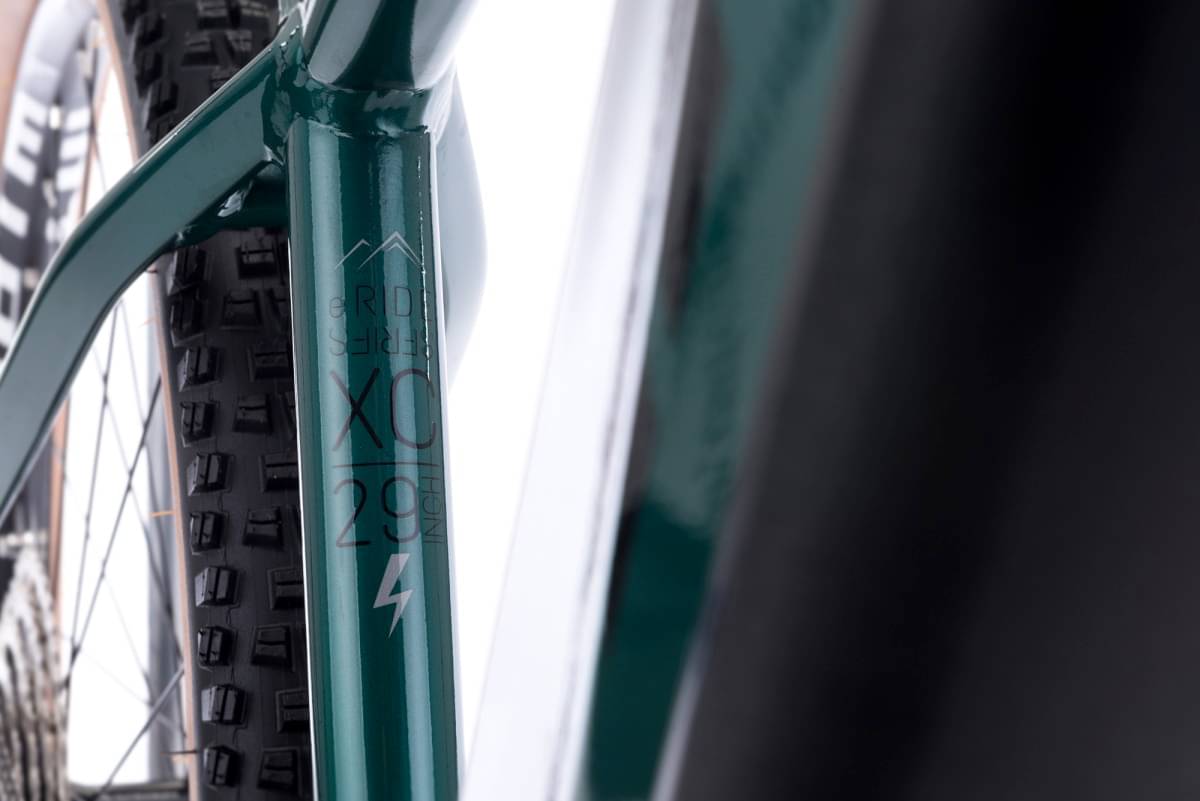

Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")

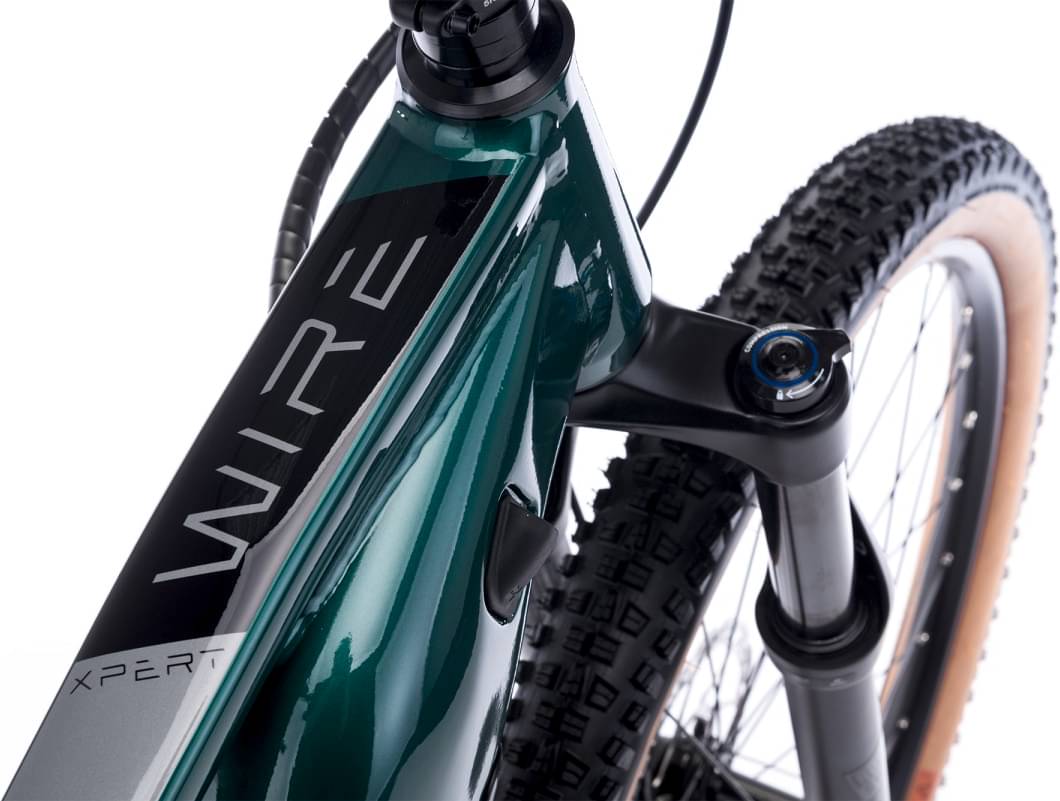

Suspension Fork
Rock Shox JUDY SILVER TK, SA, 120mm, boost™ 15x110axle
Drivetrain

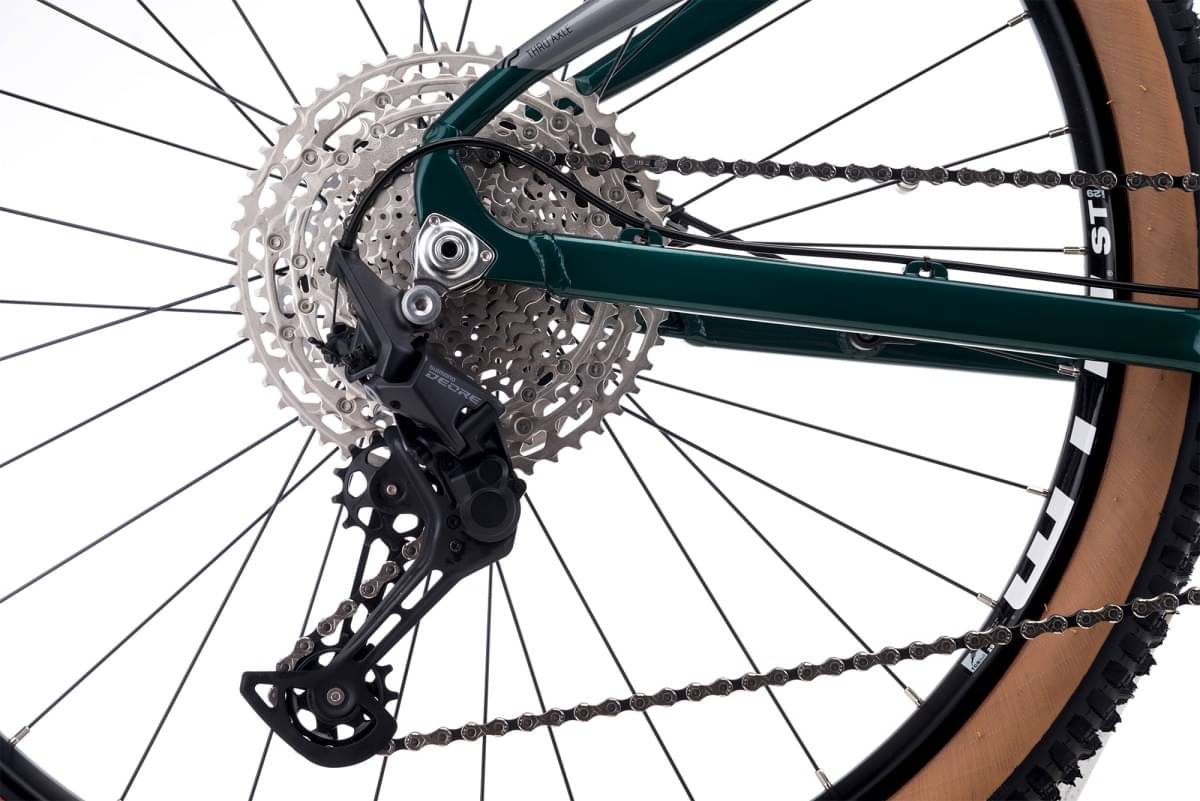

Rear Derailleur
Shimano Deore RD-M5100

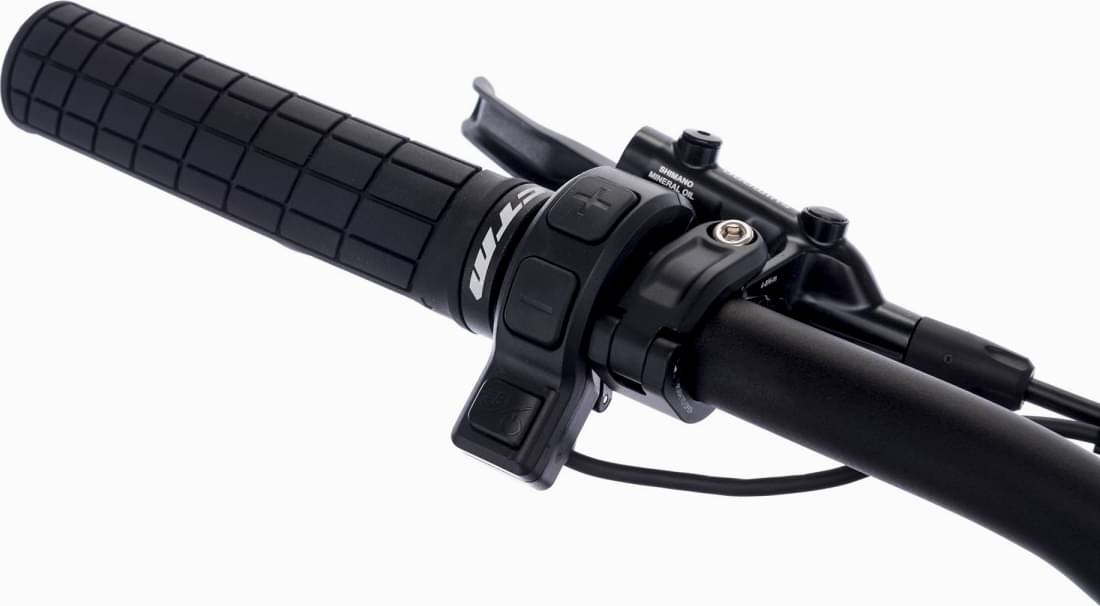

Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Bafang 38T, 170mm
Chain
KMC X11e 128L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT410 / SMRT54M
Cockpit

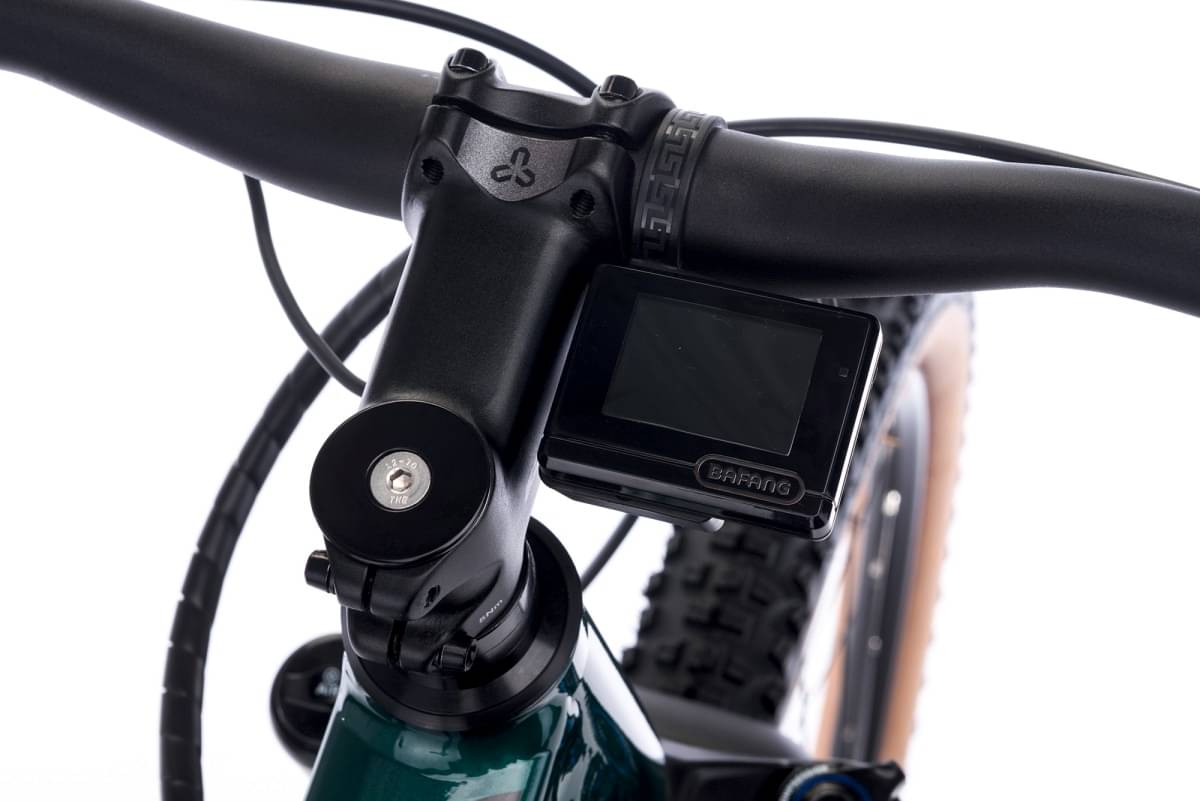

Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H383
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery

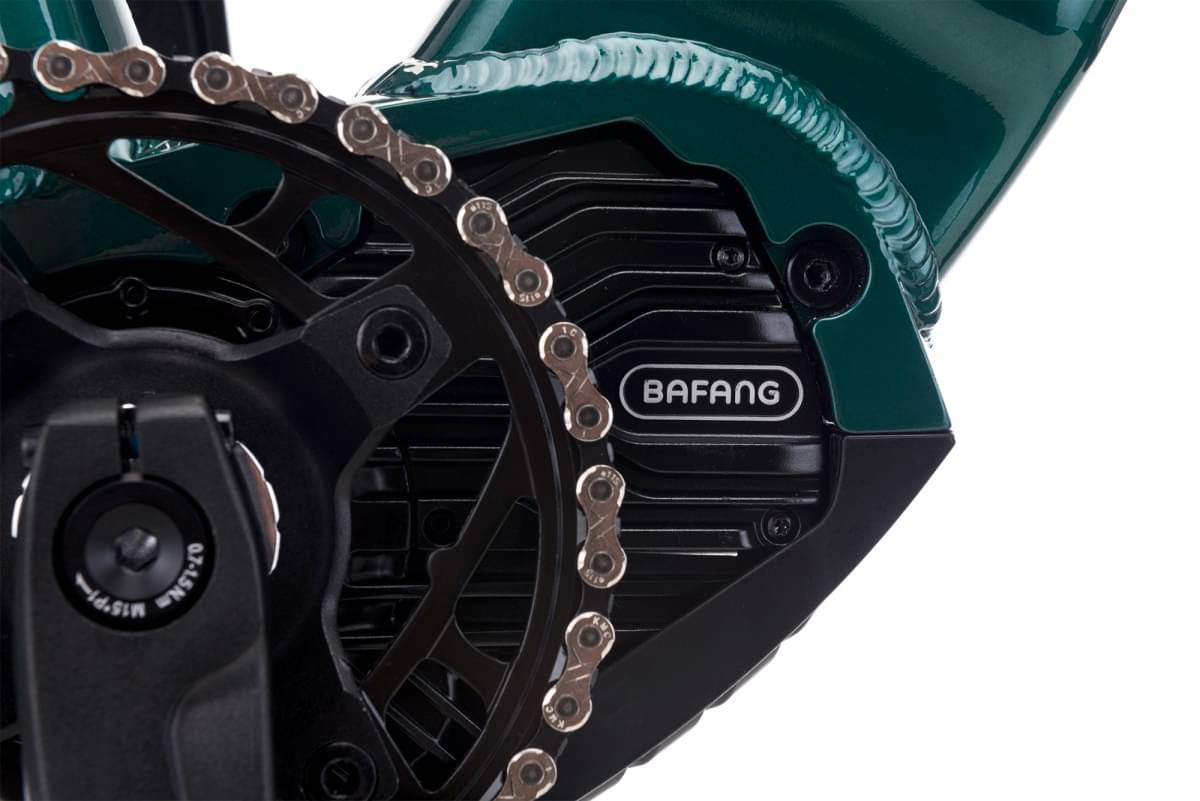

Motor
BAFANG M500 / 250W / 95Nm
Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.54 mm | 1.44 mm |
| Front Center | 671 mm | 701 mm | 731 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 656 mm | 656 mm | 656 mm |
| Reach | 397 mm | 427 mm | 457 mm |
| Top Tube Length | 596 mm | 626 mm | 656 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1145 mm | 1175 mm | 1205 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model
WIRE XPERT belongs to the Ctm E Wire model. There are 6 e-bikes that carry this model name. You can easily view all of the Ctm E Wire e-bikes models from 2022, here.
Model range prices
CTM WIRE 2022 is the most affordable e-bike of this model and has a price of 2547$. On the other hand, CTM WIRE PRO 2022, is the most expensive and costs 2866$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 2760$. In conclusion, this e-bike price is 21.92% lower than the price of the average Trail e-bike.
Overview of components
Fork
CTM WIRE XPERT 2022 e-bike is equipped with the RockShox Judy Silver TK fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the WIRE XPERT model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The WIRE XPERT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
CTM WIRE XPERT e-bike has 3 sizes, in the range of 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
