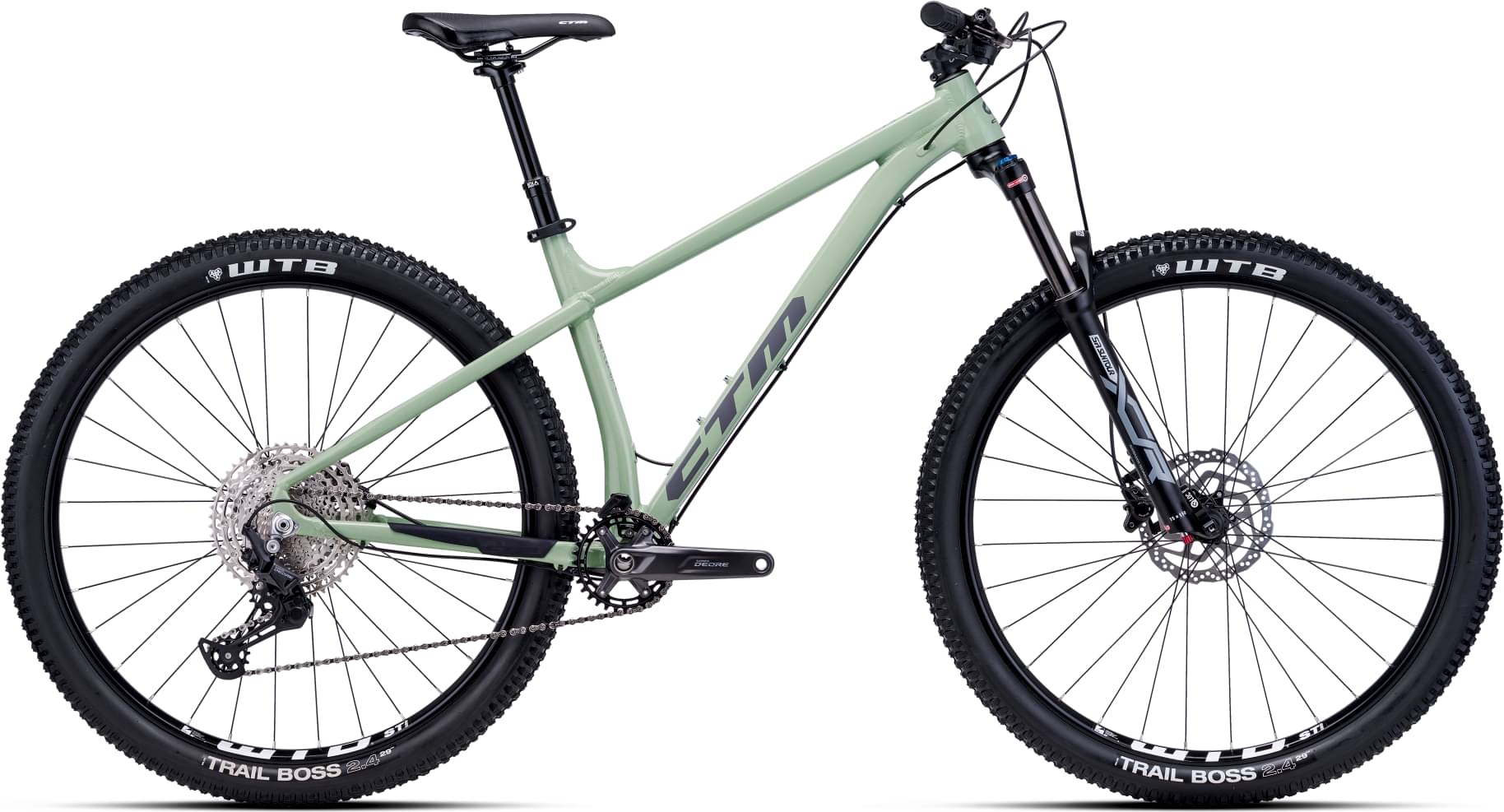

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

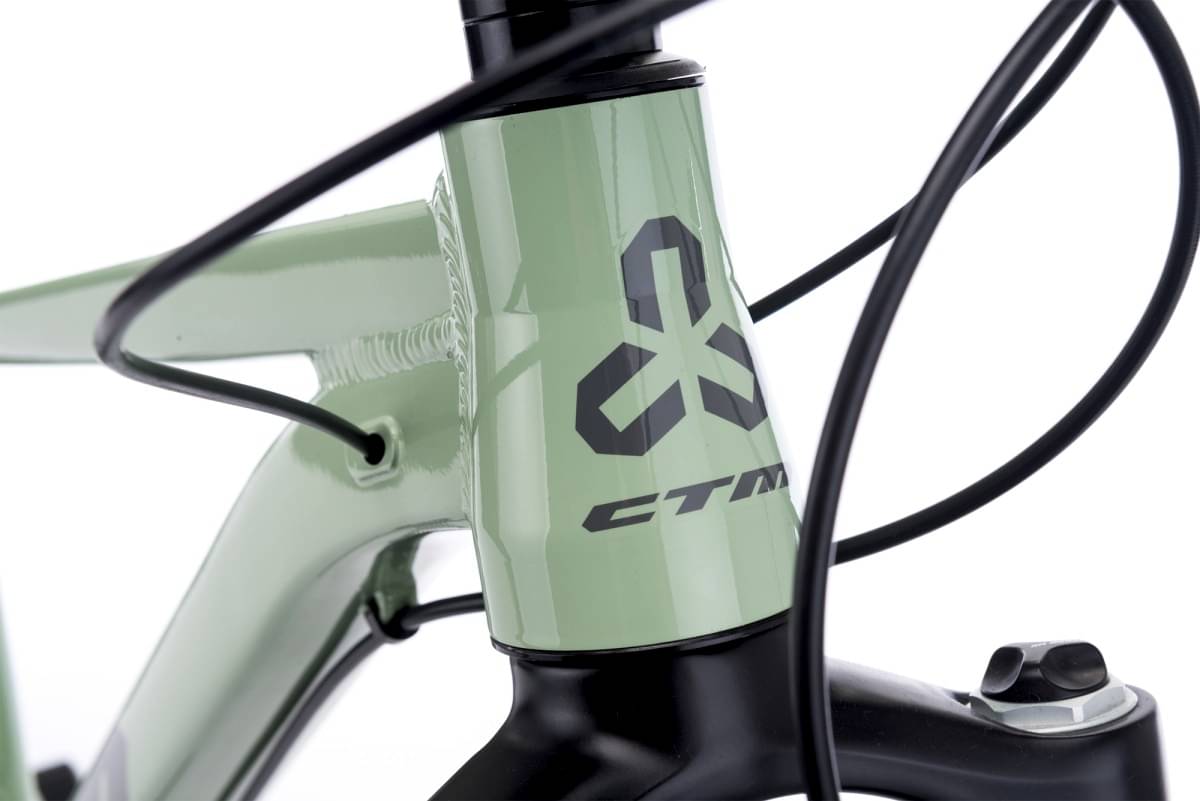

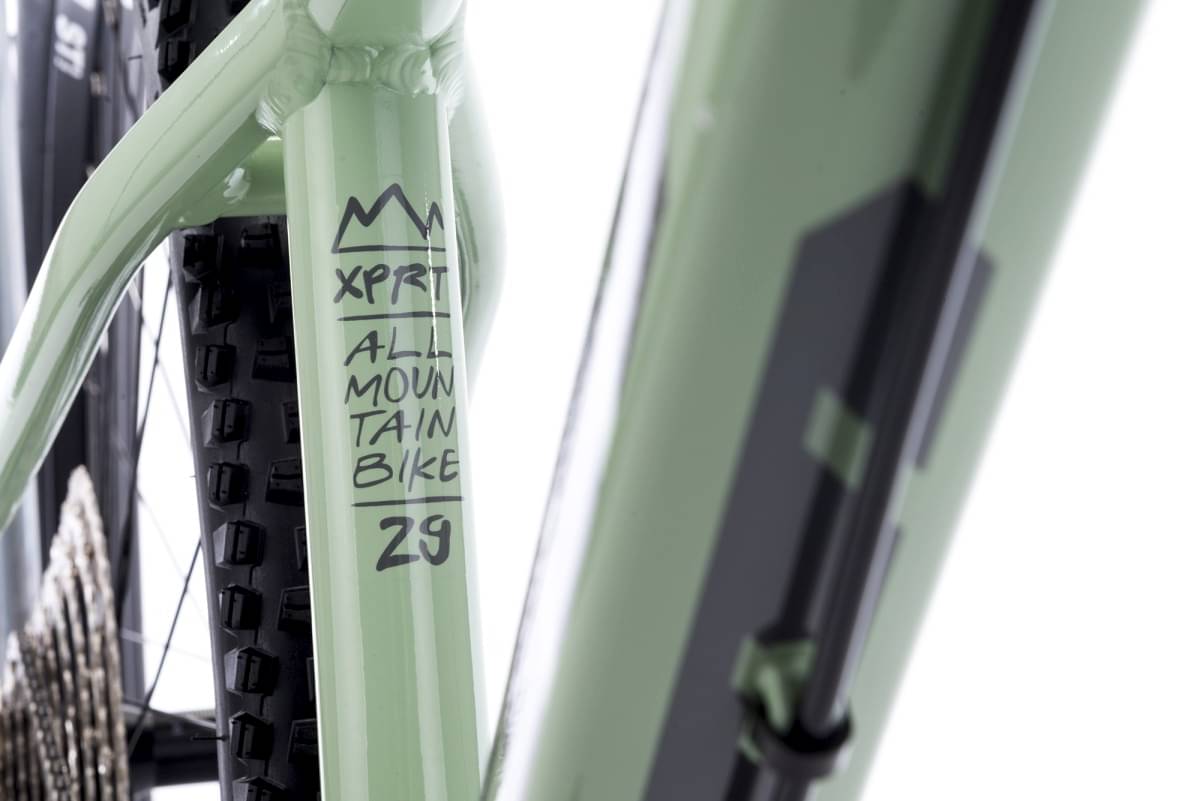

Frame
Frame
ALU 6061, S, M, L, XL
Suspension Fork
Suntour XCR34 AIR, LOR, DS, 130mm, boost™ 15x110axle

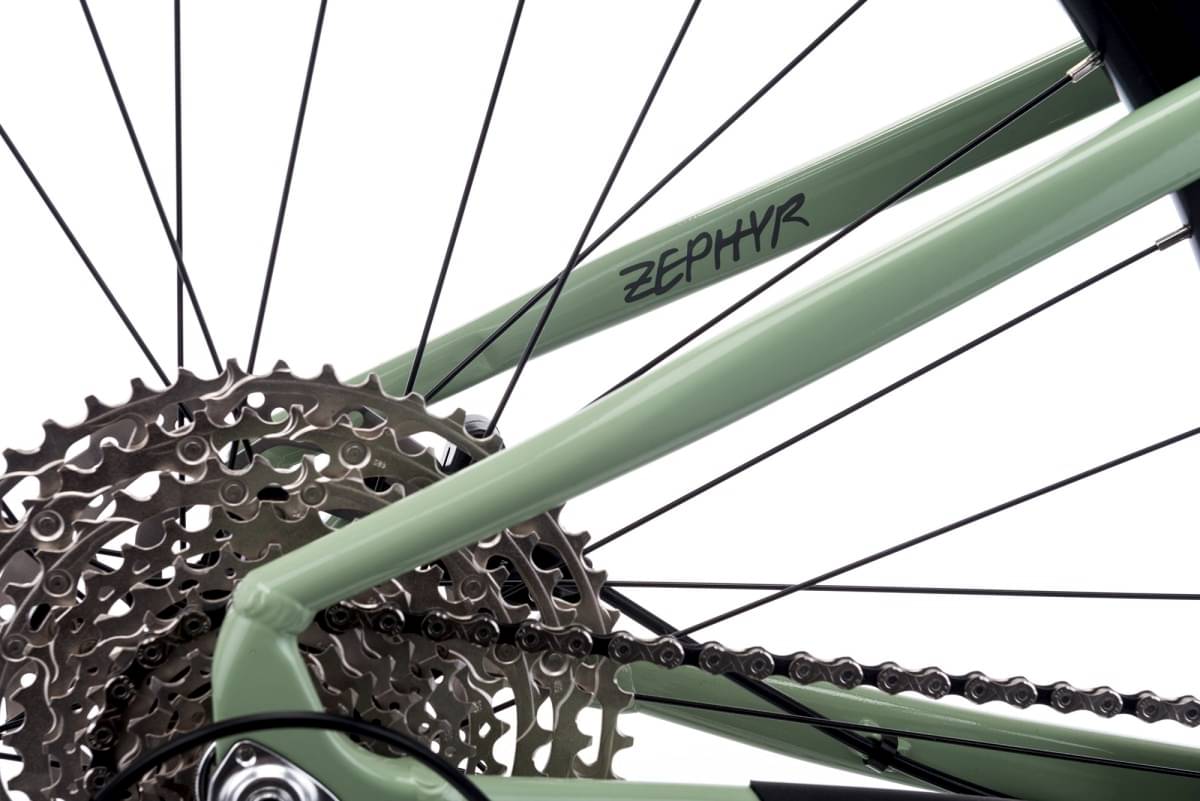

Drivetrain

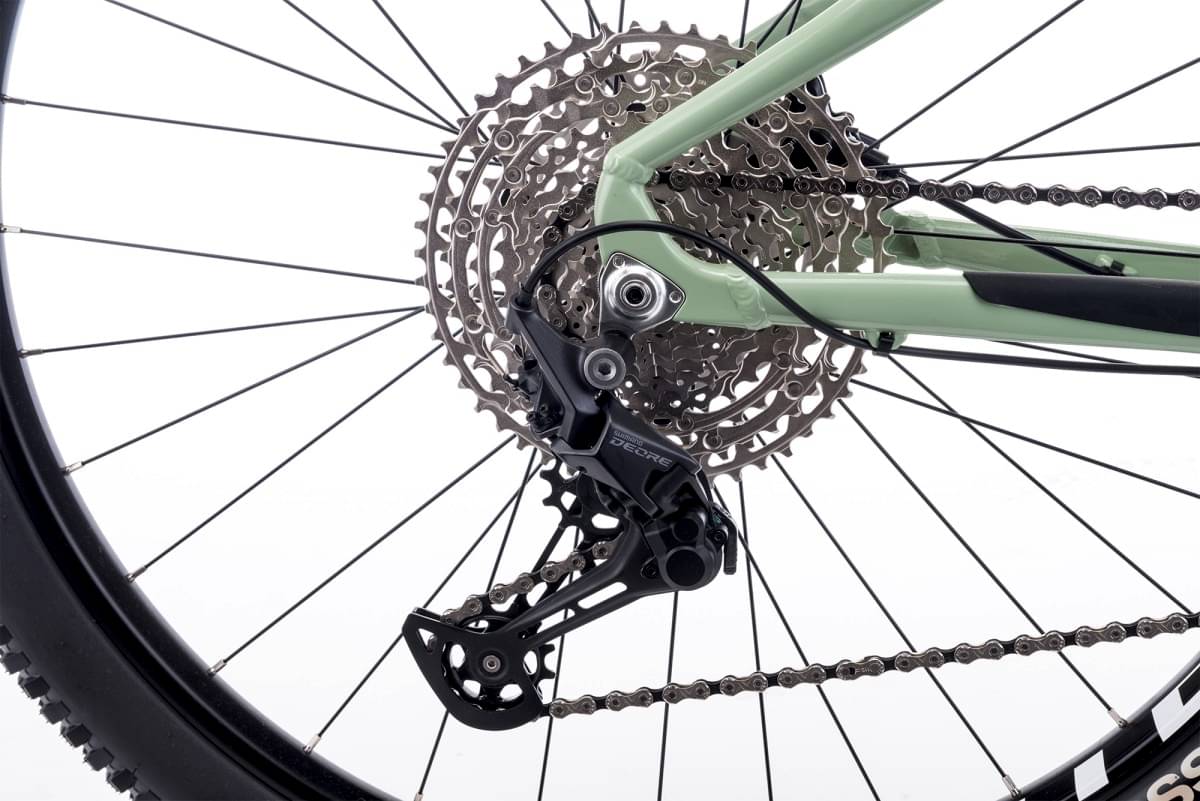

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.

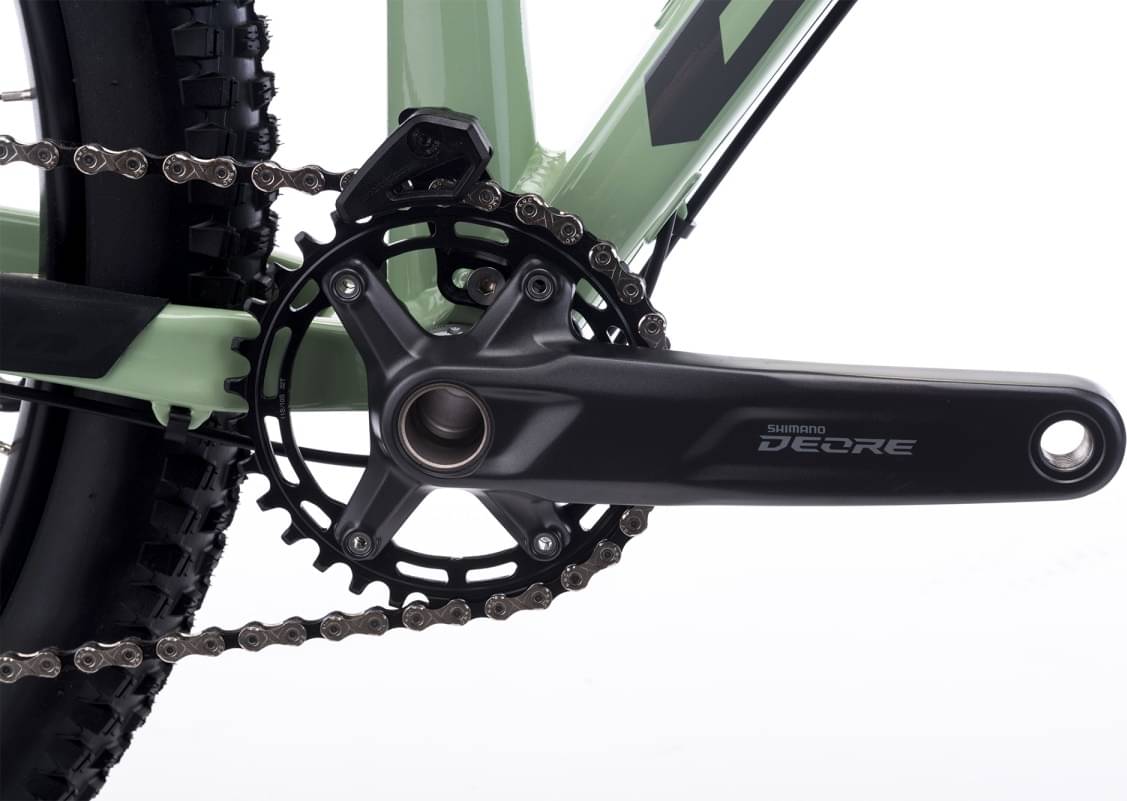

Crank
Shimano Deore FC-M5100, 32T, 175mm
Chain
KMC X11/118L
Pedals
VPE 527
Wheels
Rear Hub
Shimano MT400 / 32H
Rims
WTB STi29, TCS 2.0, 29", 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT400 / SMR10 S,M

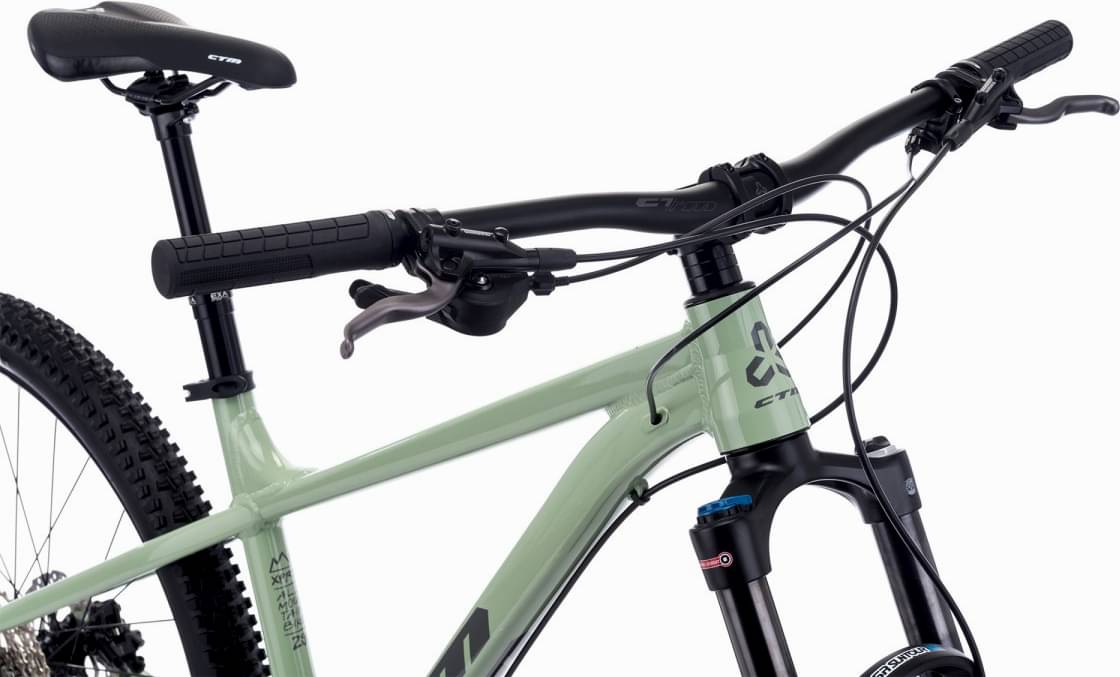

Cockpit
Stem
CTM LCS 50/31.8 mm
Handlebar
CTM HB-RB12,760/31,8 9 deg.rise
Headset
NECO H156
Seat
Saddle
CTM
Seatpost
EXA Form KSP900 (S-100mm/M-125mm/L,XL-150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.469 mm | 1.416 mm | 1.351 mm |
| Front Center | 708 mm | 730 mm | 761 mm | 788 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 612 mm | 617 mm | 630 mm | 635 mm |
| Reach | 400 mm | 420 mm | 445 mm | 470 mm |
| Top Tube Length | 556 mm | 577 mm | 607 mm | 633 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1160 mm | 1191 mm | 1218 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
Model Overview
ZEPHYR XPERT is part of the Ctm Zephyr model. CTM released 10 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the CTM ZEPHYR 2022 has a starting price of 721$. CTM ZEPHYR PRO 2022 on the other hand is the most expensive at 1241$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 1061$. Doing a quick comparison, we notice that ZEPHYR XPERT price is 160.32% lower than the average cost of a Trail bike.
Overview of components

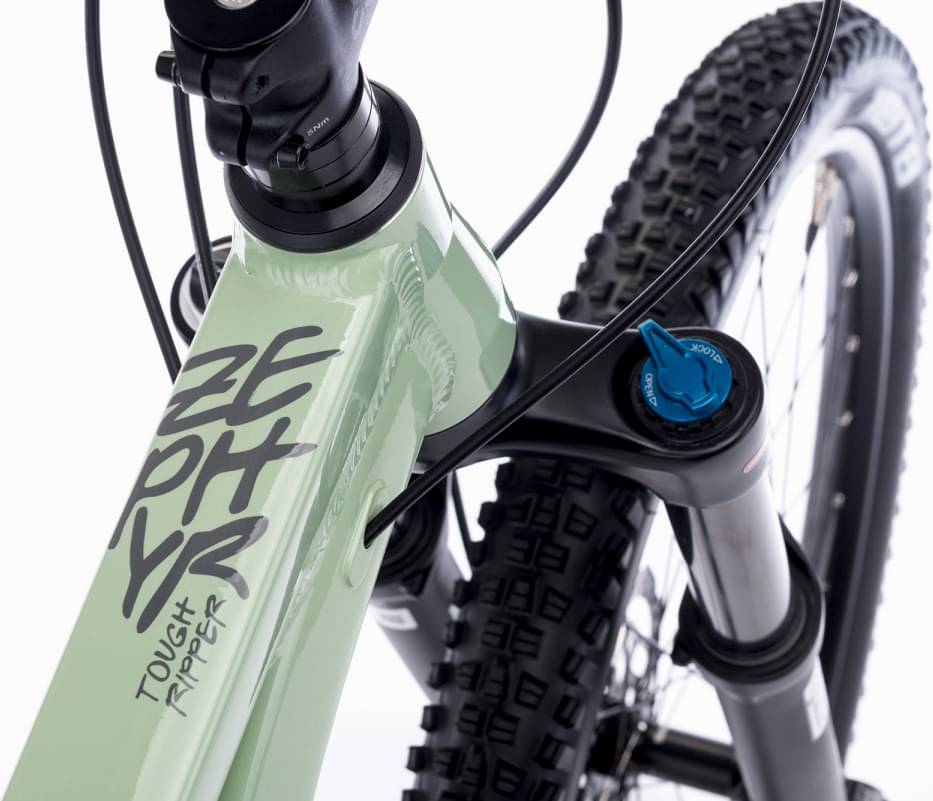

Fork
The ZEPHYR XPERT comes factory-installed with the Suntour XCR Air fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on ZEPHYR XPERT are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM ZEPHYR XPERT has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
ZEPHYR XPERT comes in 4 sizes, that range from 155 cm – 205 cm (5.09 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.

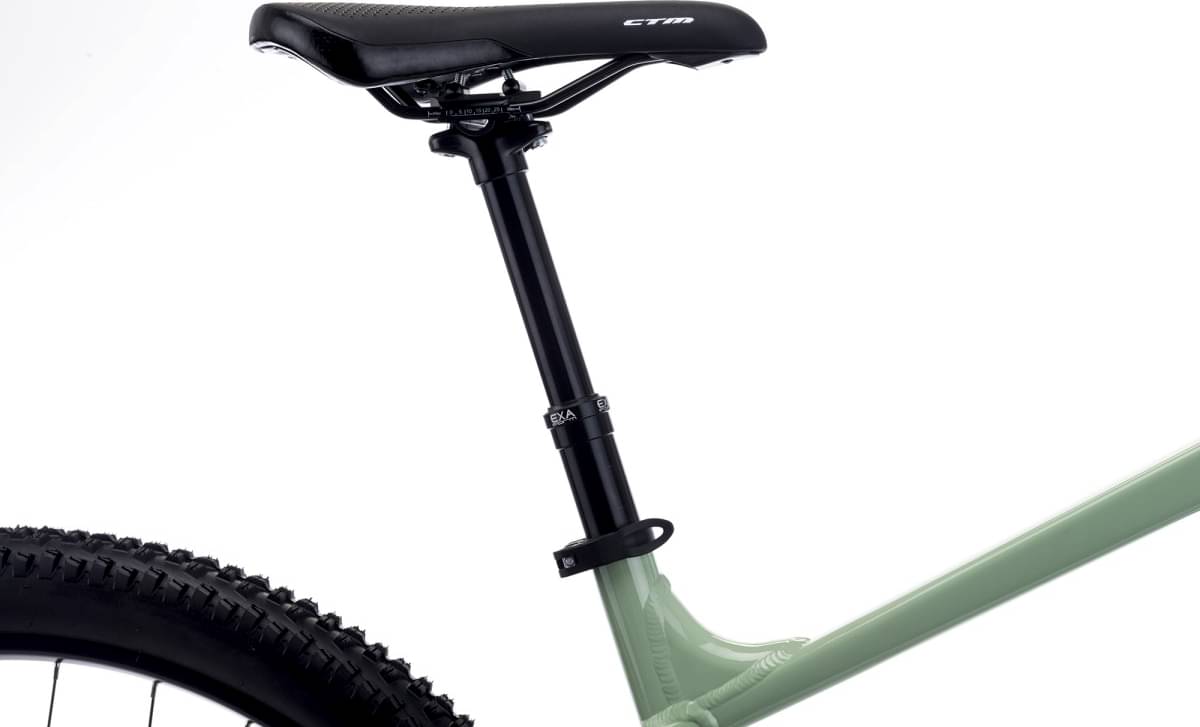

Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
