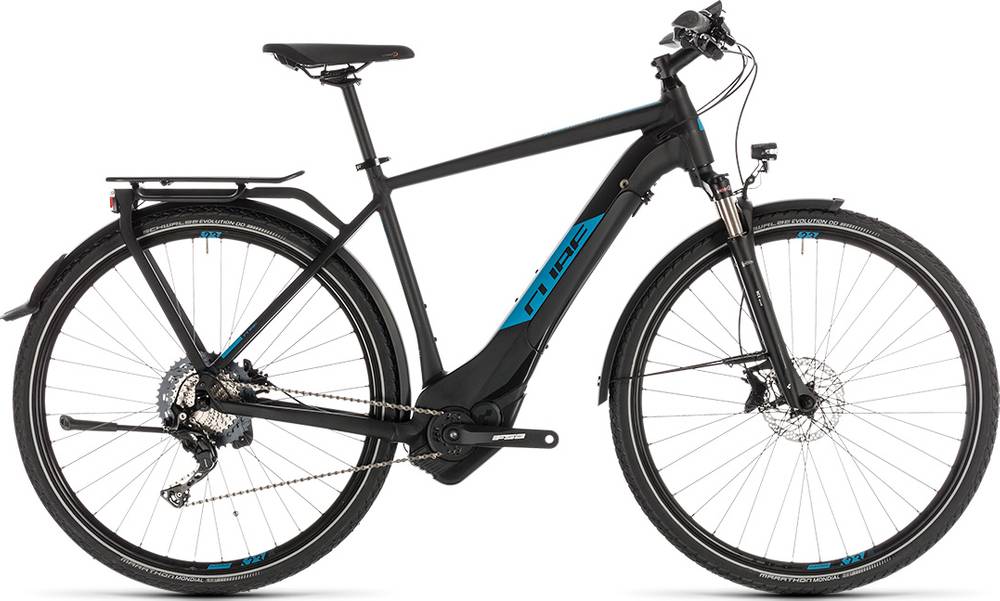

CUBE KATHMANDU HYBRID Exc 500 2019
2019 E-bike
Estimate price |
3,440$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NCX -
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500; EE: Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Integrated Carrier 2.0; EE: CUBE Integrated Carrier 1.0 Hybrid
Suspension Fork
SR Suntour NCX D LO Air, 63mm, Lockout, EE: 75mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed; EE: Shimano XT RD-M8000-GS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 16T, 175mm
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Mondial, Kevlar, 47-622
Brakes
Brakes
Shimano BR-MT520/BR-MT500, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP Comfort
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm); EE: FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Lookin Moderate, Royalgel™
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500; EE: Bosch PowerPack 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 649 mm | 655 mm | 667 mm | 679 mm |
| Rake | 42 mm | 37 mm | 37 mm | 42 mm |
| Trail | 81 mm | 83 mm | 83 mm | 78 mm |
| Stack | 603 mm | 630 mm | 647 mm | 661 mm |
| Reach | 391 mm | 398 mm | 404 mm | 406 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1103 mm | 1115 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
KATHMANDU HYBRID Exc 500 is part of the Cube E Kathmandu model. There are 59 e-bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE KATHMANDU HYBRID Pro 500 Trapeze 2019 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, CUBE KATHMANDU HYBRID SL 500 2019, is the most expensive and costs 4246$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring e-bikes average price
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When CUBE released this model in 2019, its price was 3184$. In conclusion, this e-bike price is 31.08% higher than the price of the average Touring e-bike.
Touring e-bikes average weight
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 24.3 kg (53.57 lbs), CUBE e-bike is a bit lighter than average. In other words, this model is 5.14% lighter than the average Touring e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The KATHMANDU HYBRID Exc 500 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KATHMANDU HYBRID Exc 500 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
