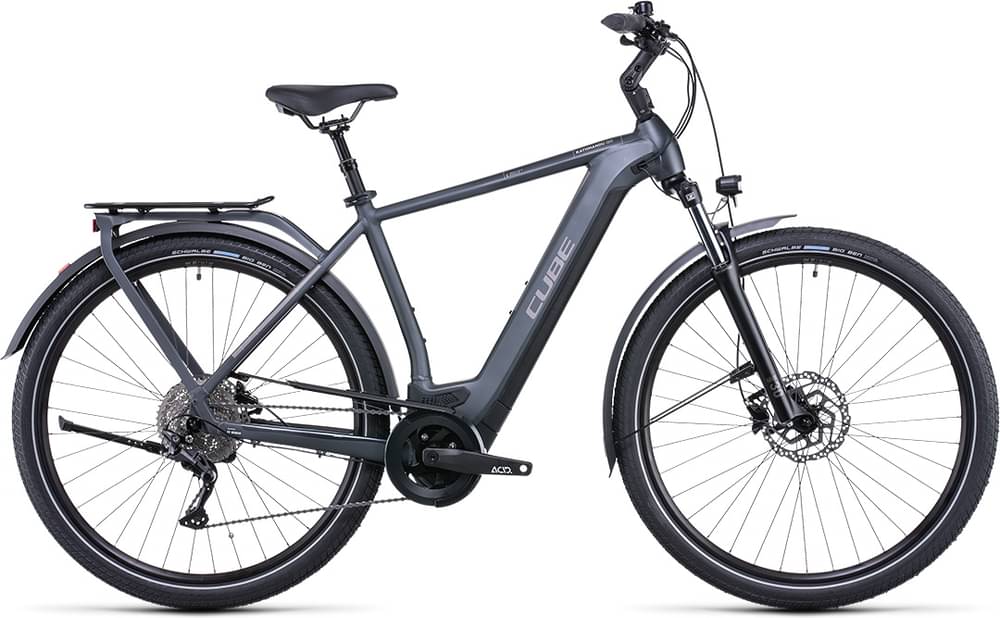

CUBE KATHMANDU HYBRID ONE 500 2022
2022 E-bike
Estimate price |
3,096$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Shimano Deore CS-M4100, 11-42T
Crank
ACID E-Crank, 38T, 175mm (EE: 170mm)
Chain
KMC X10
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.53 mm | 1.56 mm |
| Front Center | 318 mm | 703 mm | 714 mm | 725 mm |
| Rake | -880 mm | 51 mm | 51 mm | 51 mm |
| Trail | 1083 mm | 83 mm | 83 mm | 83 mm |
| Stack | 622.9 mm | 626.7 mm | 645 mm | 664.3 mm |
| Reach | 408.8 mm | 417.8 mm | 421.7 mm | 424.5 mm |
| Top Tube Length | 584.7 mm | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 71.3 ° | 71.3 ° | 71.3 ° | 71.3 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 114 mm | 133 mm | 154 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 873 mm | 898 mm | 929 mm | 962 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
KATHMANDU HYBRID ONE 500 belongs to the Cube E Kathmandu model. CUBE launched 59 e-bikes of this model so far. You can easily view all of the Cube E Kathmandu e-bikes models from 2022, here.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, CUBE KATHMANDU HYBRID SLT 750 2022, is the most expensive and costs 4565$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE KATHMANDU HYBRID ONE 500 price was 2866$. Comparing the average cost of a Hybrid e-bike to this one, you will see that KATHMANDU HYBRID ONE 500 price is 15.56% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 25.5 kg (56.22 lbs), the KATHMANDU HYBRID ONE 500 model is a bit heavier than average. In conclusion, the average Hybrid e-bike weighs 7.19% less than KATHMANDU HYBRID ONE 500.
KATHMANDU HYBRID ONE 500 components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, CUBE KATHMANDU HYBRID ONE 500 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KATHMANDU HYBRID ONE 500 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
KATHMANDU HYBRID ONE 500 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
