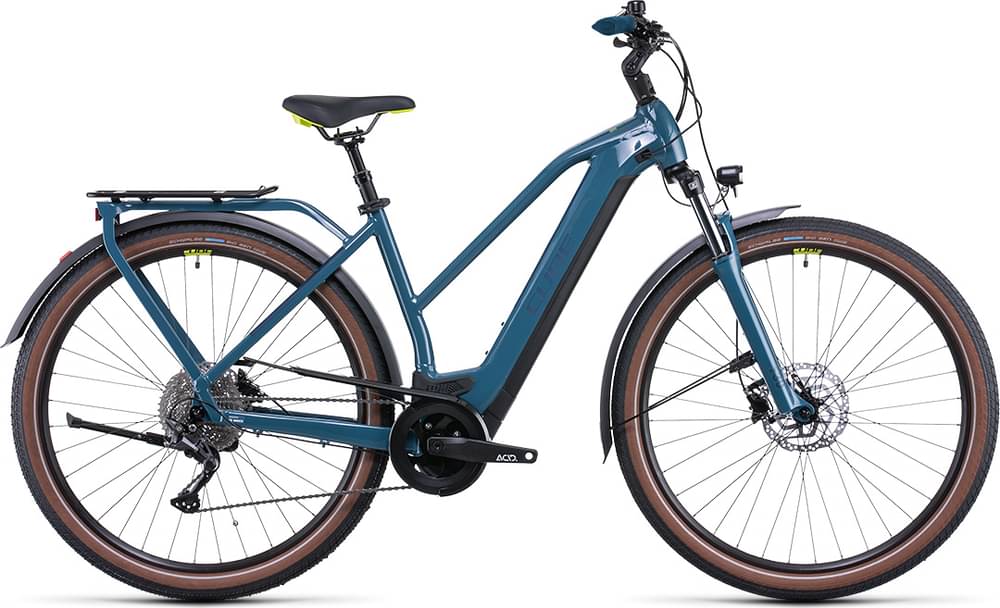

CUBE KATHMANDU HYBRID ONE 625 Trapeze 2022
2022 E-bike
Estimate price |
3,325$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Shimano Deore CS-M4100, 11-42T
Crank
ACID E-Crank, 38T, 175mm (EE: 170mm)
Chain
KMC X10
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.57 mm | 1.56 mm |
| Front Center | 689 mm | 693 mm | 704 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 83 mm | 83 mm | 82 mm |
| Stack | 638.6 mm | 648.7 mm | 656.3 mm |
| Reach | 413.6 mm | 414.5 mm | 421.7 mm |
| Top Tube Length | 586 mm | 596.1 mm | 606.3 mm |
| Seat Tube Angle | 72 ° | 71.3 ° | 71.3 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 114 mm | 125 mm | 134 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1146 mm | 1151 mm | 1161 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 783 mm | 781 mm | 782 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
KATHMANDU HYBRID ONE 625 Trapeze belongs to the Cube E Kathmandu model. CUBE released 59 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, CUBE KATHMANDU HYBRID SLT 750 2022, is the most expensive and costs 4565$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 3078$. Comparing this to the average Hybrid e-bike price, we see that the price is 24.11% higher.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 26.1 kg (57.54 lbs), CUBE e-bike is a bit heavier than average. In short, the average Hybrid e-bike weight is 9.71% lower than this one.
Overview of components
Fork
CUBE KATHMANDU HYBRID ONE 625 Trapeze 2022 e-bike is equipped with the SunTour fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on KATHMANDU HYBRID ONE 625 Trapeze are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
