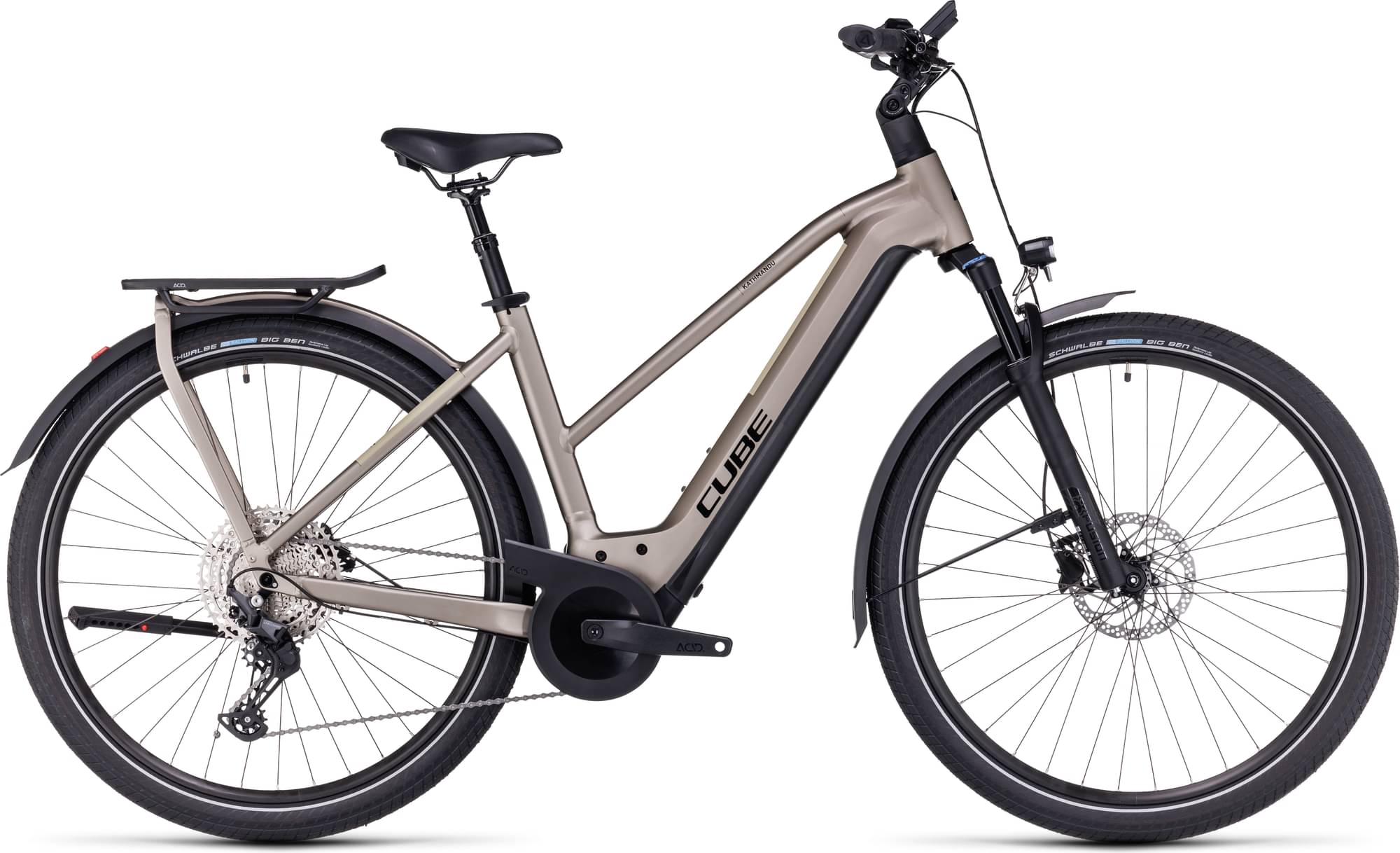

CUBE KATHMANDU HYBRID, PRO 750 2022
2022 E-bike
Estimate price |
4,243$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork X-Fusion MIG
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Suspension Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire-Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
KMC X11
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, K-Guard, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

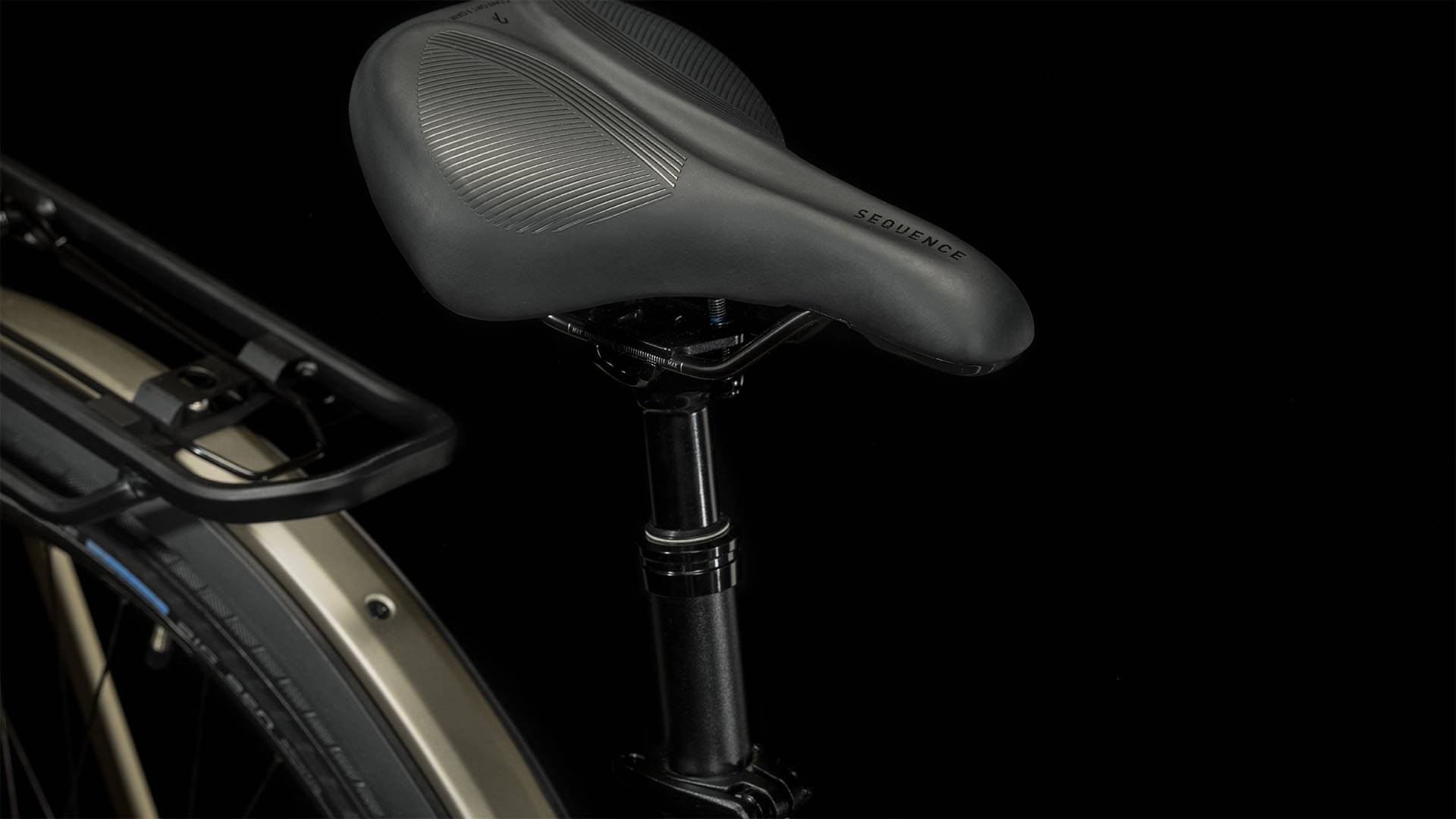

Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm |
| Front Center | 745 mm | 748 mm |
| Rake | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm |
| Stack | 647 mm | 657 mm |
| Reach | 442 mm | 441 mm |
| Top Tube Length | 628 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 133 mm | 144 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1190 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm |
| Wheels | 700 | 700 |
Model Overview
KATHMANDU HYBRID, PRO 750 is a Cube E Kathmandu model. 59 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 is the most economical model, with a starting price of 2866$. CUBE KATHMANDU HYBRID SLT 750 2022 on the other hand costs 4565$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 3928$. Comparing the average cost of a Hybrid e-bike to this one, you will see that KATHMANDU HYBRID, PRO 750 price is 58.39% more expensive.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 26.9 kg (59.3 lbs), the KATHMANDU HYBRID, PRO 750 model is considerably heavier than average. In conclusion, the average Hybrid e-bike weighs 13.07% less than KATHMANDU HYBRID, PRO 750.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The KATHMANDU HYBRID, PRO 750 comes factory-installed with the X-Fusion MIG fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the KATHMANDU HYBRID, PRO 750 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE KATHMANDU HYBRID, PRO 750 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
