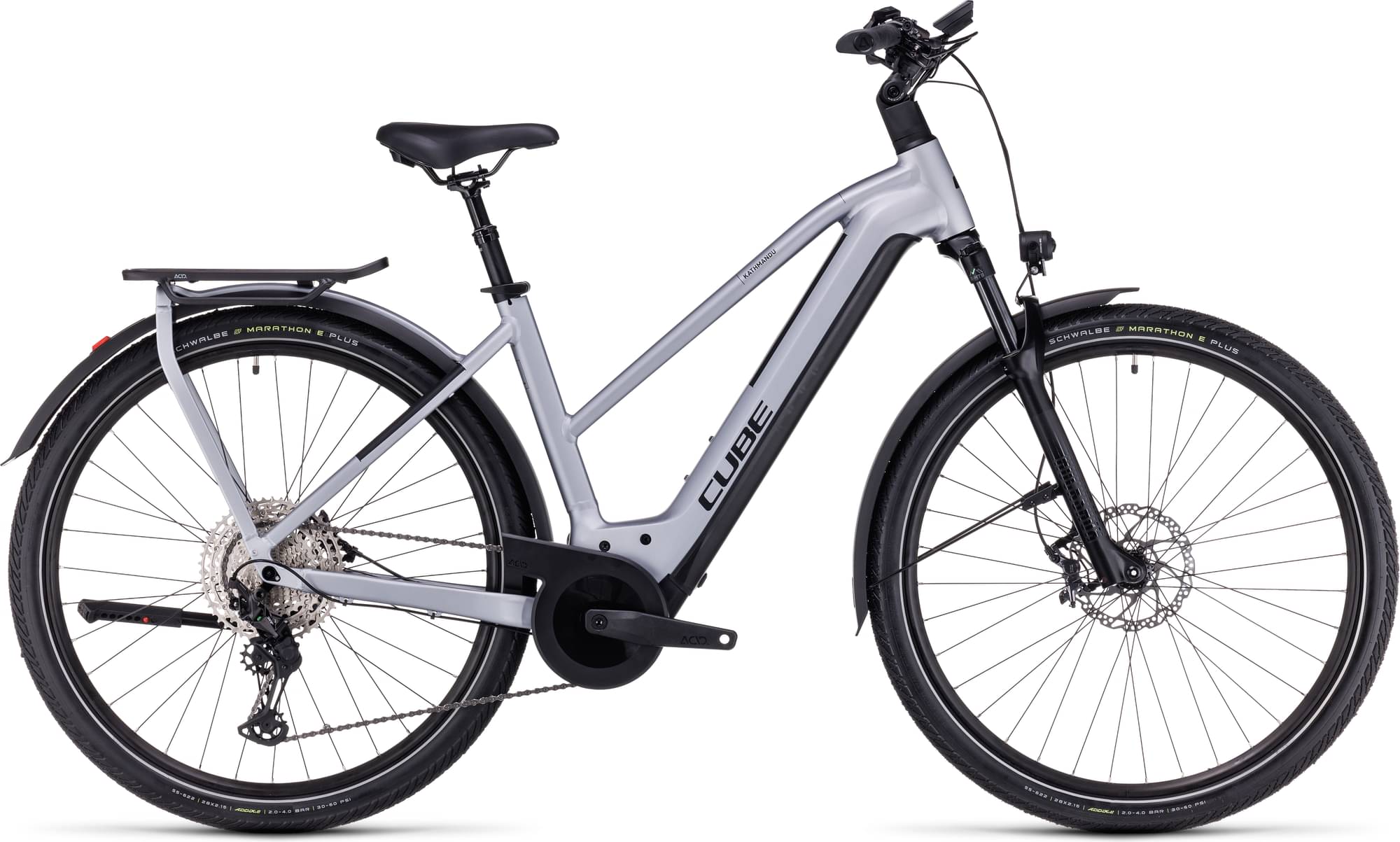

CUBE KATHMANDU HYBRID, SLX 750 2022
2022 E-bike
Estimate price |
4,701$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Suspension Fork
RockShox Recon Silver RL Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
Brakes
Brakes
Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm |
| Front Center | 745 mm | 748 mm |
| Rake | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm |
| Stack | 647 mm | 657 mm |
| Reach | 442 mm | 441 mm |
| Top Tube Length | 628 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 133 mm | 144 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1190 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm |
| Wheels | 700 | 700 |
About this model
KATHMANDU HYBRID, SLX 750 is part of the Cube E Kathmandu model. CUBE released 59 e-bikes variations of this model so far. Take a sneak peek at all Cube E Kathmandu e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 has a starting price of 2866$. CUBE KATHMANDU HYBRID SLT 750 2022 on the other hand is the most expensive at 4565$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2022, its price was 4352$. Comparing this to the average Hybrid e-bike price, we see that the price is 75.48% higher.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KATHMANDU HYBRID, SLX 750 weighs 27.9 kg (61.51 lbs) and is much heavier than the average. In conclusion, the average Hybrid e-bike weighs 17.28% less than KATHMANDU HYBRID, SLX 750.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the KATHMANDU HYBRID, SLX 750 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
